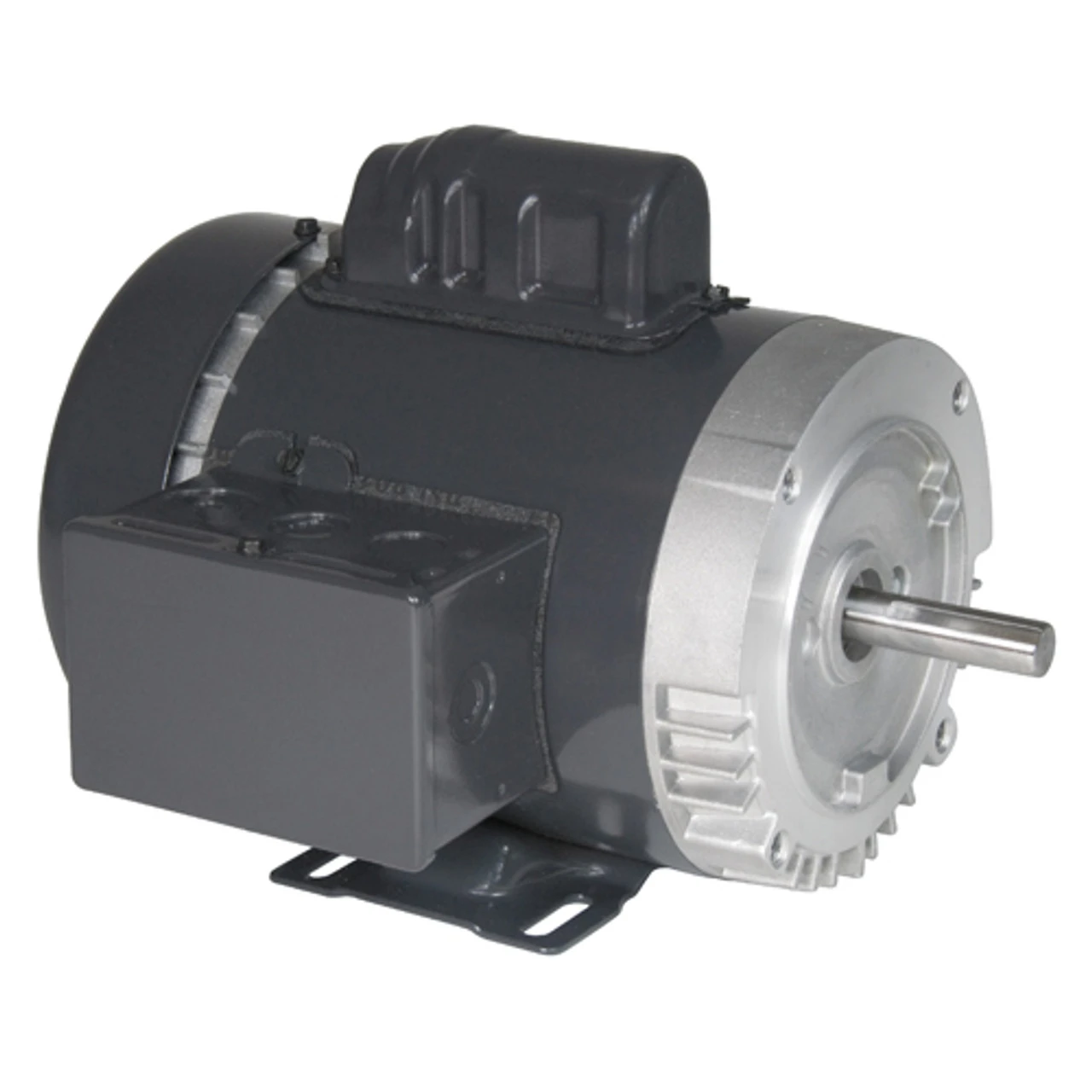

EC11B Nidec 1 1/2 Hp 3600 RPM 115/208-230V 56C Frame (Rigid Base) TEFC 1-Phase Electric Motor

EC11B Nidec 1 1/2 Hp 3600 RPM 115/208-230V 56C Frame (Rigid Base) TEFC 1-Phase Electric Motor - Image 2

EC11B Nidec 1 1/2 Hp 3600 RPM 115/208-230V 56C Frame (Rigid Base) TEFC 1-Phase Electric Motor

Original price was: $309.00.Current price is: $98.99.

SKU: ZWXLY 1698658111 Categories: Electric Motors, Nidec Electric Motors Tag: Nidec

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1 1/2 hp 3600 RPM, 16.6/9.0-8.3 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
NEMA 56C frame Keyed Shaft 5/8″ Diameter x 1 7/8″ Long
Service Factor: 1.15, Overload protection = Auto
Rigid Base Mount, Ball Bearings, Class B Insulation, Reversible
1 Year Manufacture Warranty

Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063HLZ5029014J
