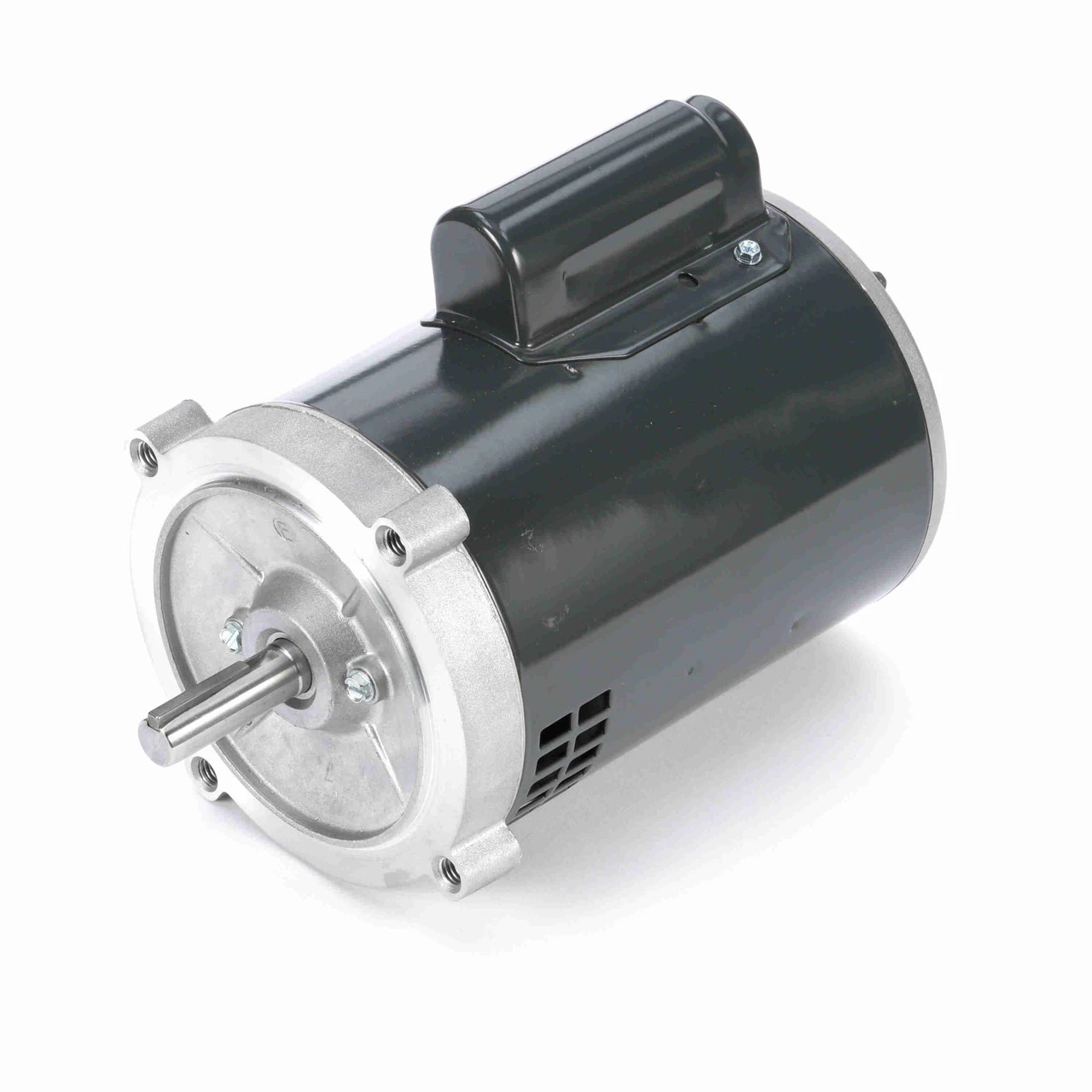

EC0752 Nidec 3/4 Hp 3600 RPM 115/208-230V 56C Frame (No Base) ODP 1-Phase Electric Motor
Original price was: $320.63.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3/4 hp 3600 RPM, 10.4/5.4-5.2 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
- NEMA 56C Frame, Keyed Shaft 5/8″ Diameter x 1 7/8″ Long
- Service Factor: 1.5, Overload protection = Auto
- Face Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty

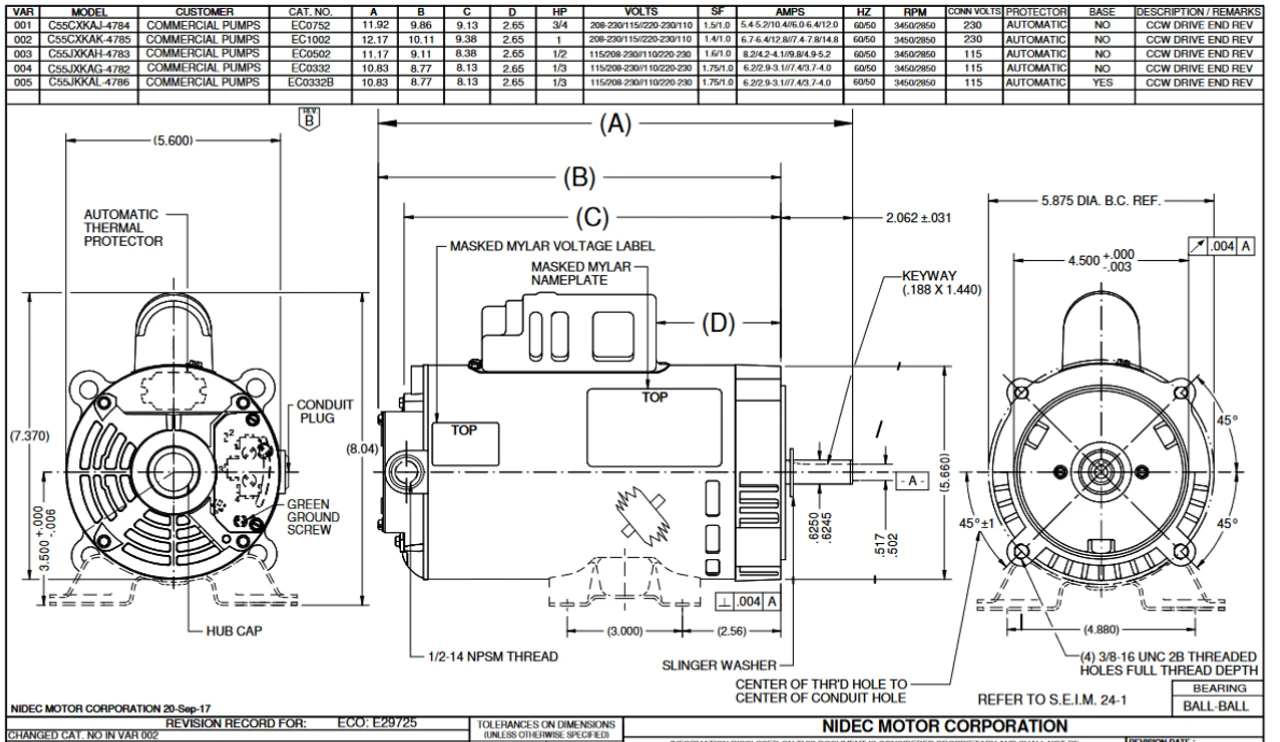

Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. C055KAJ4784014J
