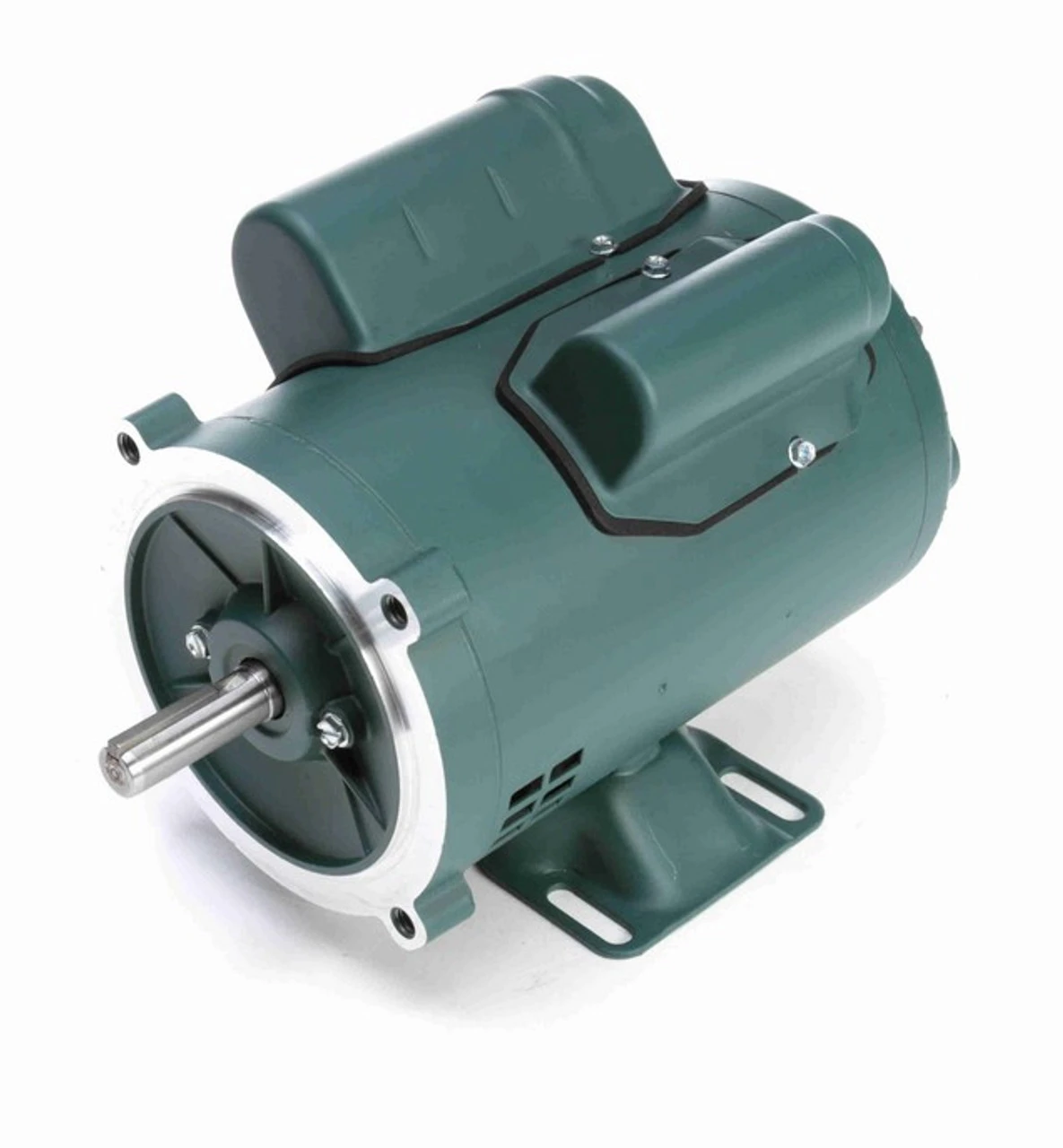

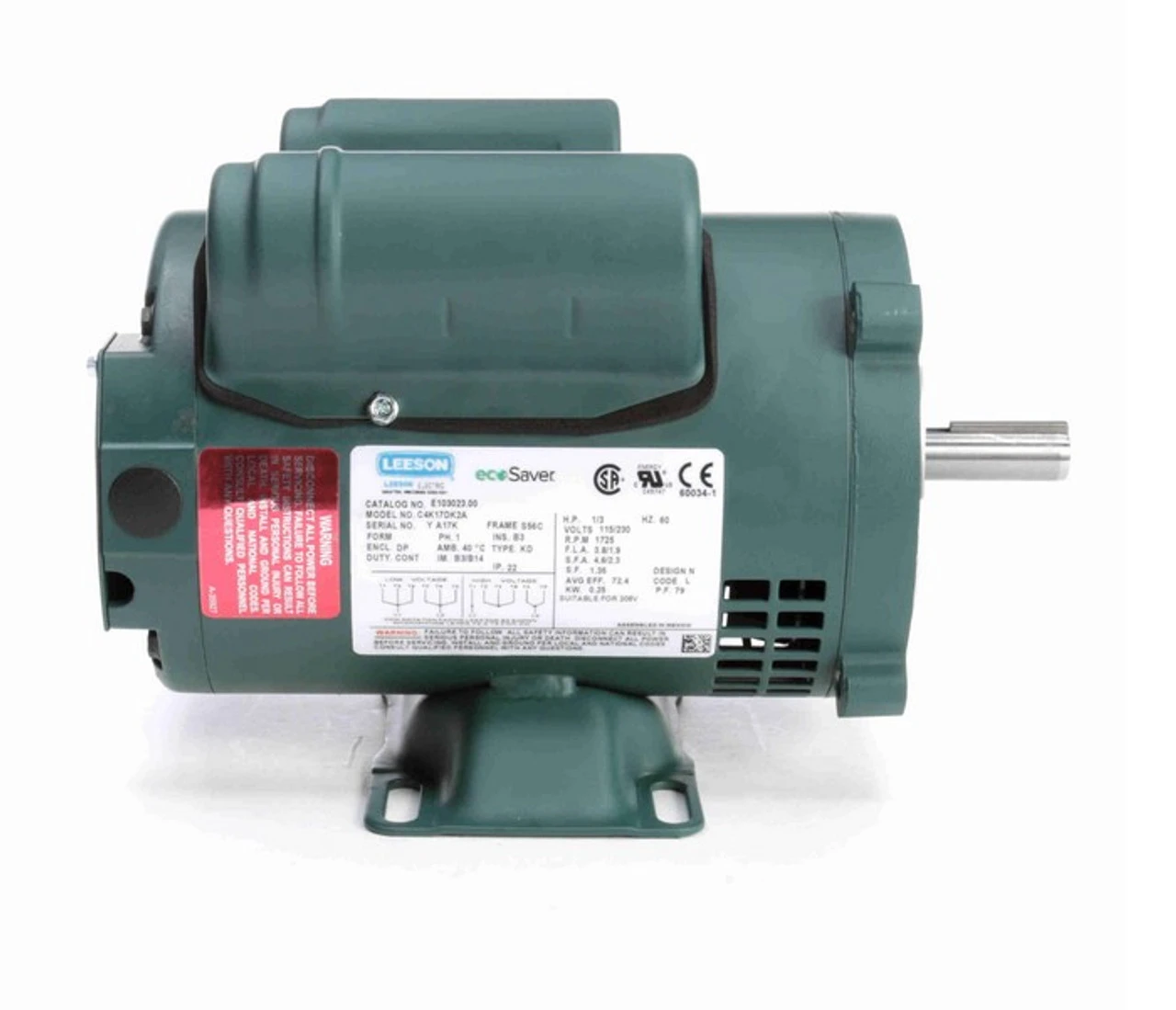

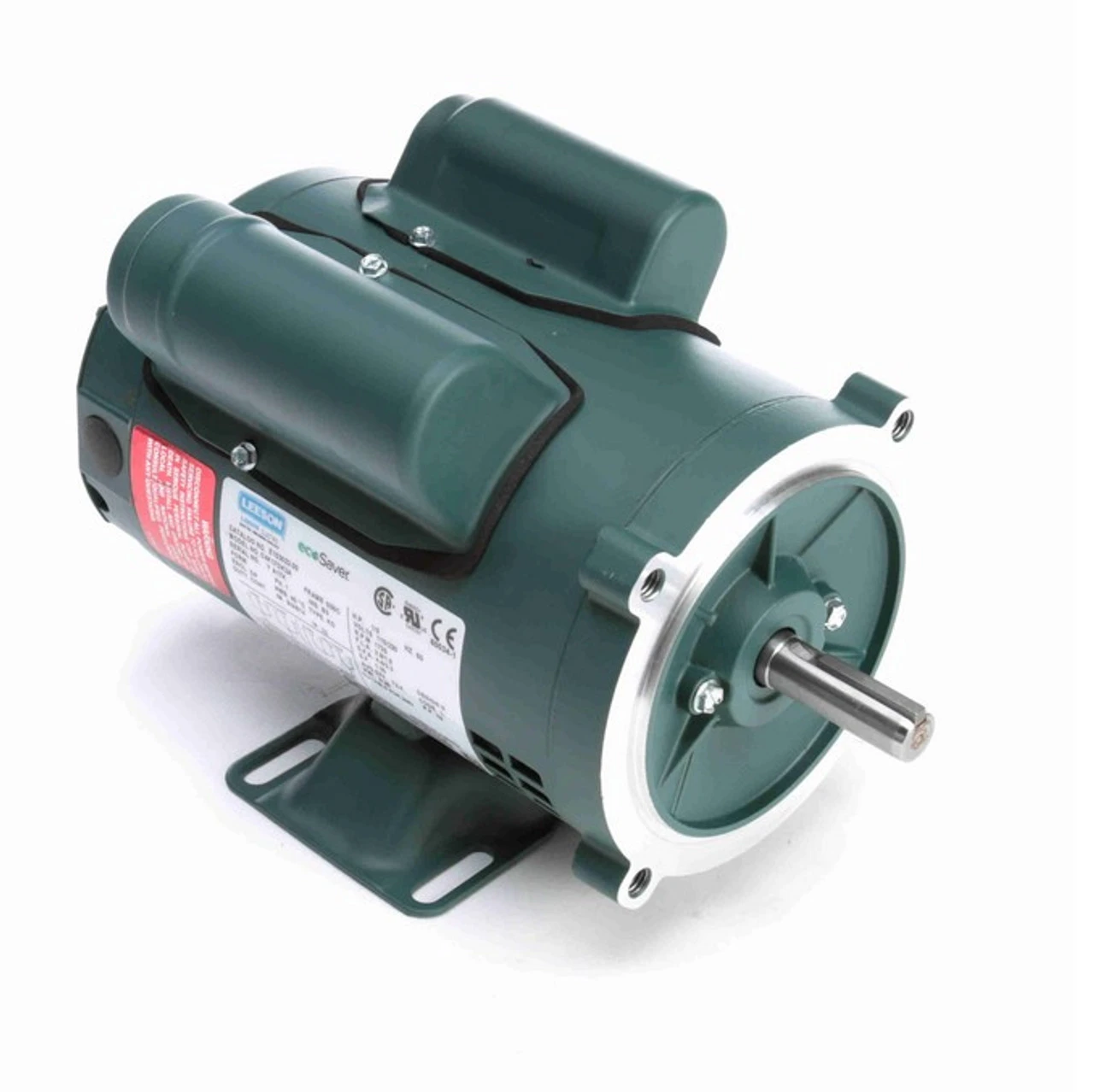

E103023.00 Leeson 1/3 Hp 1800 RPM 115/230V 56C Frame ODP Rigid-Base C-Face Motor
Original price was: $338.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1/3 hp 1800 RPM, 3.8/1.9 amps 115/230 Volts 60hz. Single Phase Capacitor Start/Run Motor
- NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.35 – Overload Protection = None
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor with a C-face mount. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. E103023.00
