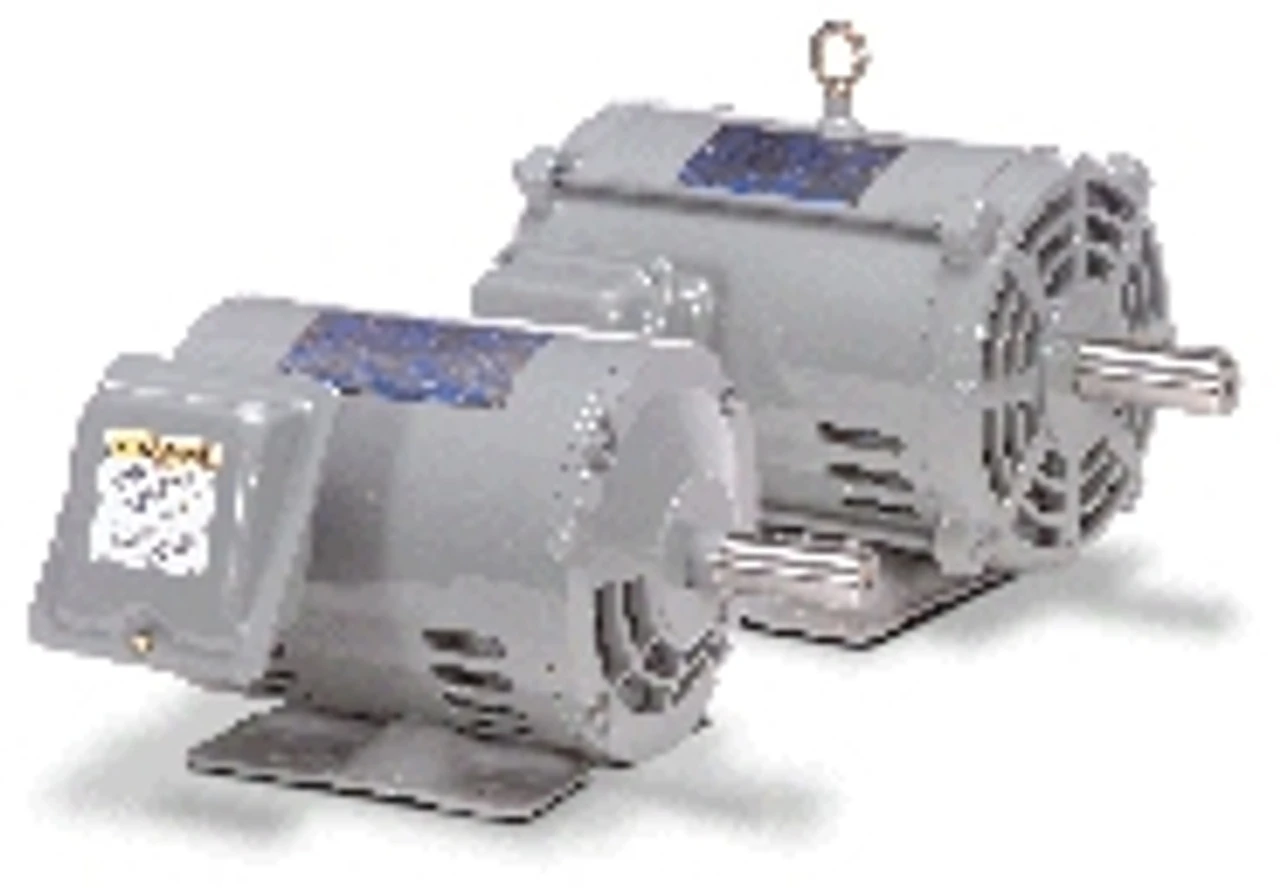

DTP0154 TECO Westinghouse 15 Hp 1800 RPM 254/256T Frame 230/460V ODP 3-Phase Motor
Original price was: $317.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
Â
- 15 hp 1800 RPM, 36.4/18.2 amps 230/460 Volts 60hz. Three Phase
- NEMA 254/256T Frame, Keyed Shaft 1 5/8″ Diameter x 4″
- Rolled Steel Frame, Enclosure: Open Drip Proof (IP22)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
