DTP0034G TECO Westinghouse 3 Hp 1800 RPM 182/184T Frame 230/460V ODP 3-Phase SGR Motor
Original price was: $334.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period

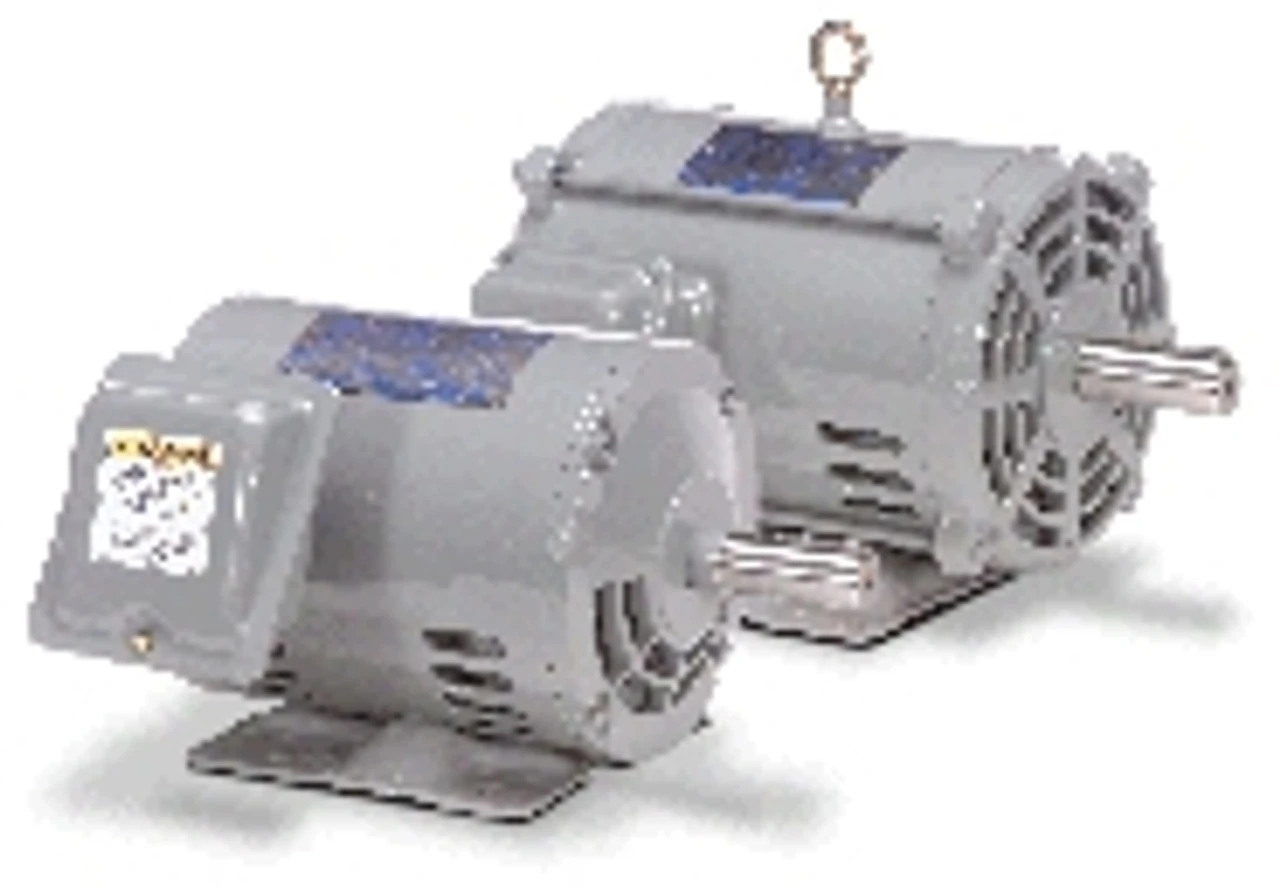

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 3 hp 1800 RPM, 8.6/4.3 amps 230/460 Volts 60hz. Three Phase

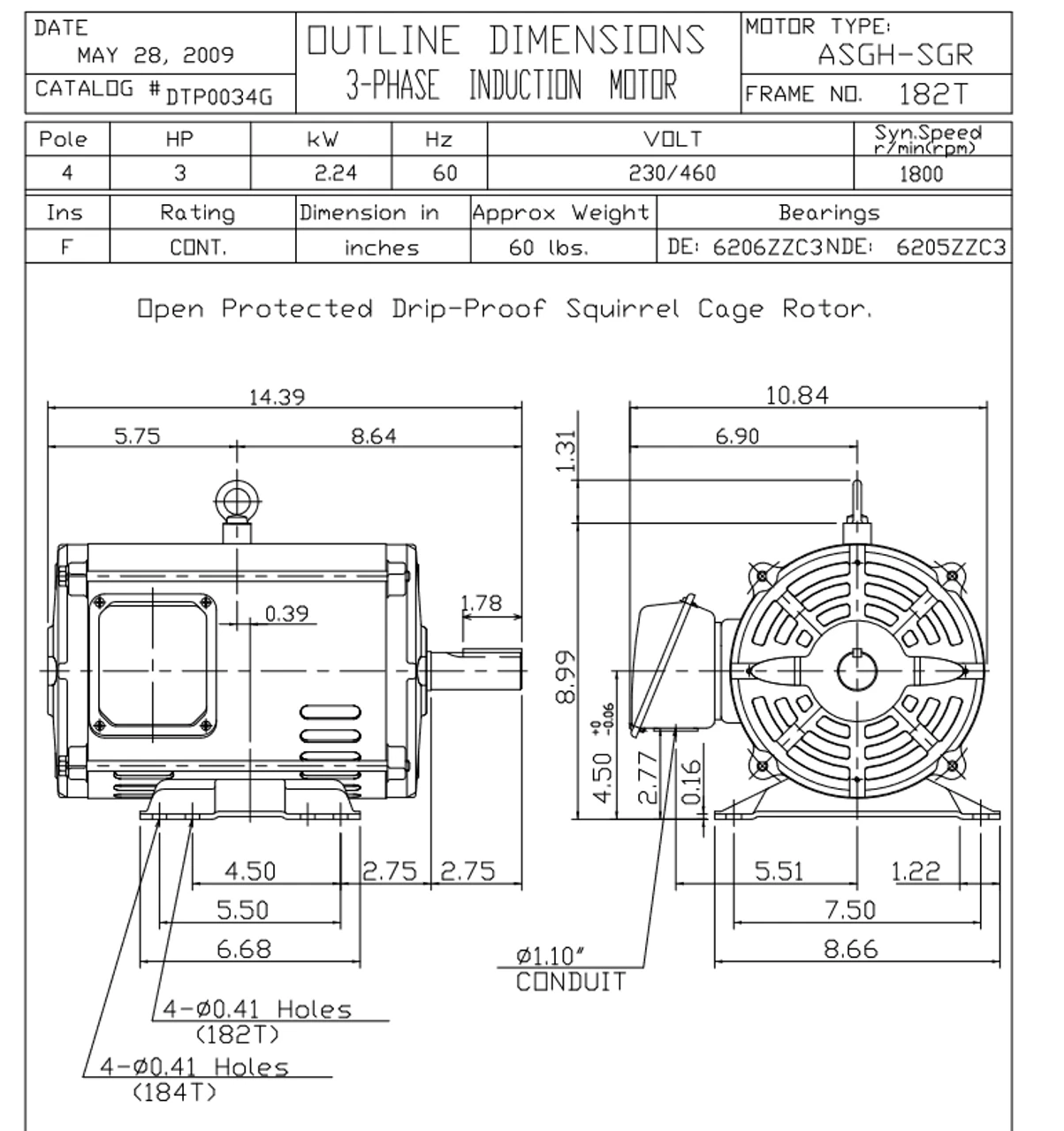

- NEMA 182/184T Frame, Keyed Shaft 1 1/8″ Diameter x 2 3/4″
- Rolled Steel Frame, Enclosure: Open Drip Proof (IP22)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Motor has SGR (Shaft Grounding Rings) to protect bearings from electrical damage. Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
