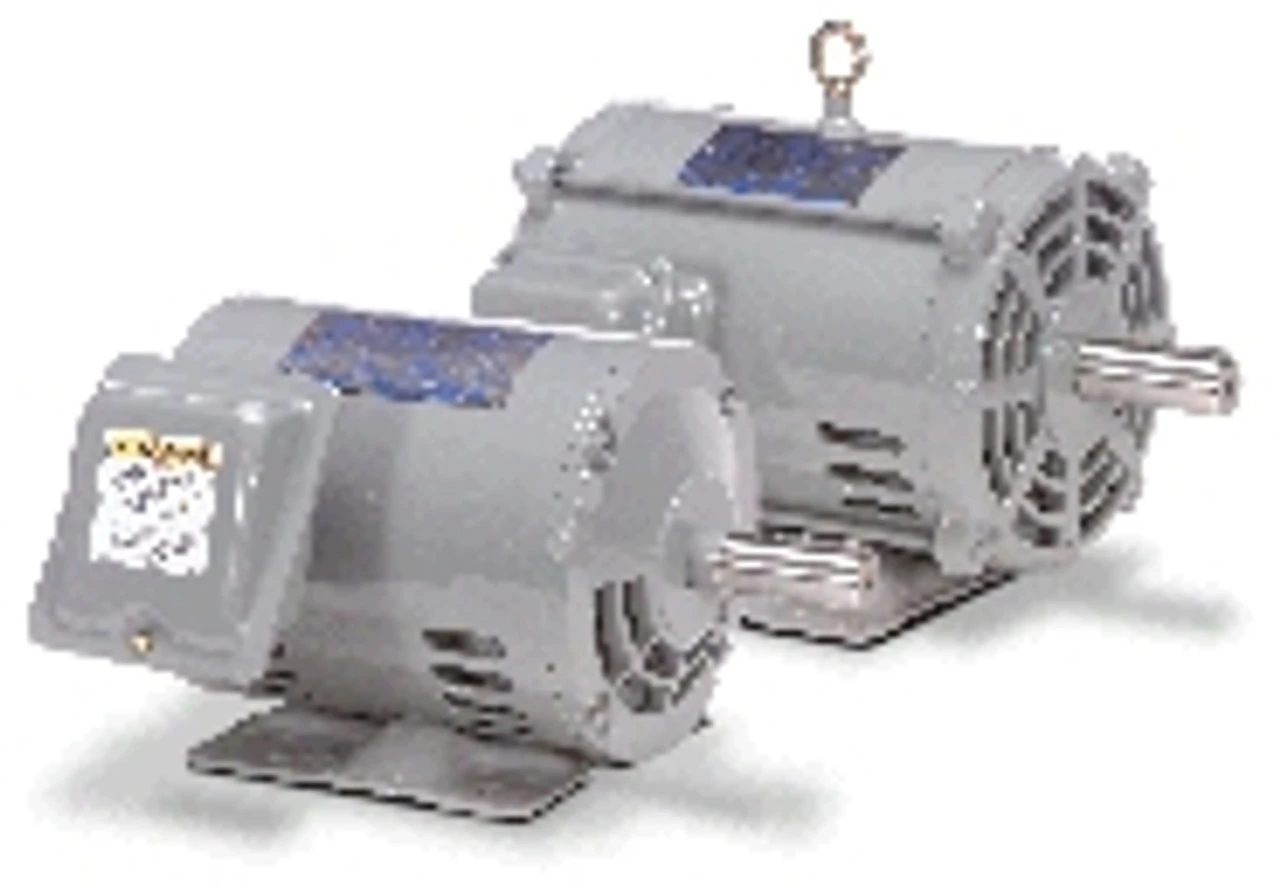

DTP0034 TECO Westinghouse 3 Hp 1800 RPM 182/184T Frame 230/460V ODP 3-Phase Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 3 hp 1800 RPM, 8.6/4.3 amps 230/460 Volts 60hz. Three Phase
• NEMA 182/184T Frame, Keyed Shaft 1 1/8″ Diameter x 2 3/4″
• Rolled Steel Frame, Enclosure: Open Drip Proof (IP22)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
