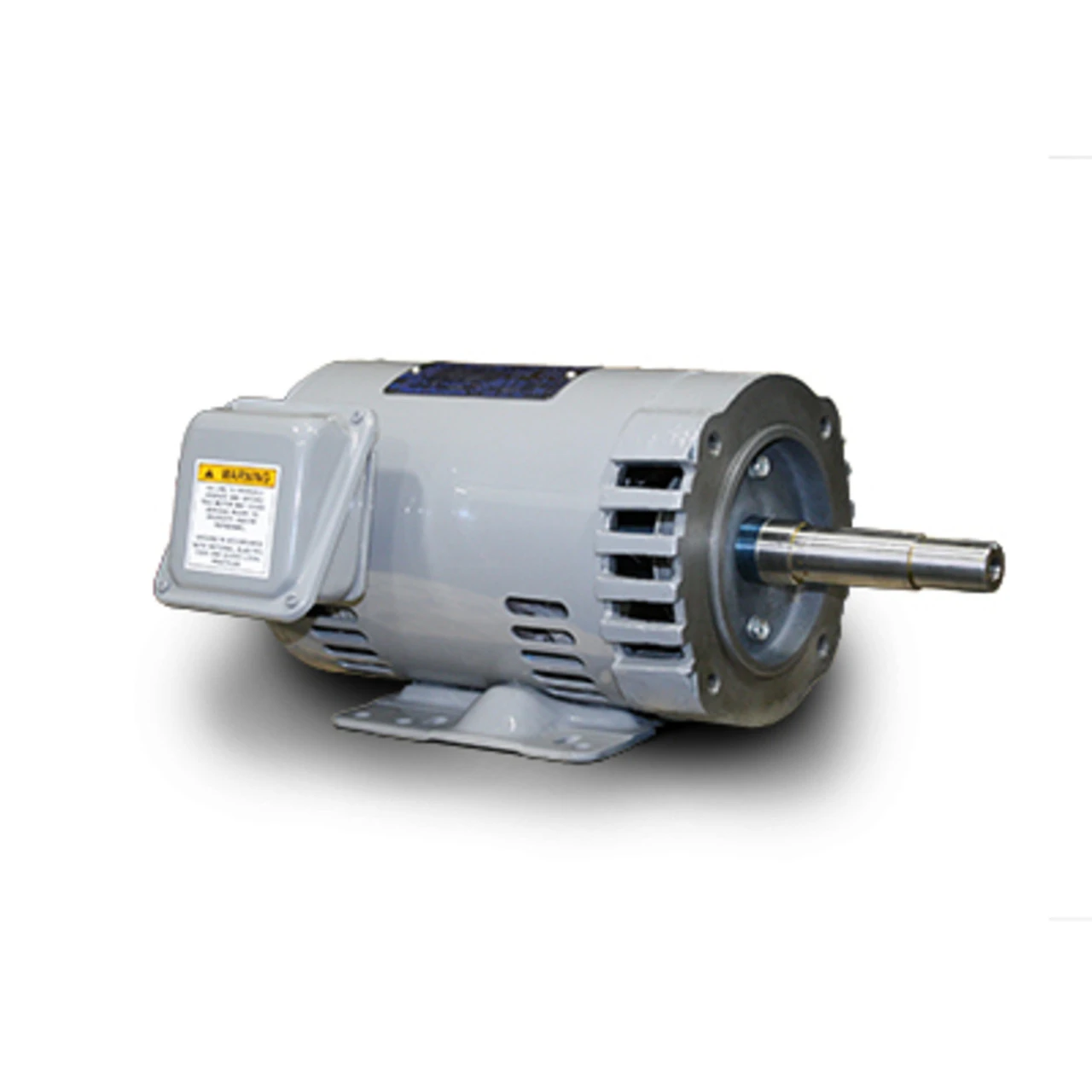

DJMP1/52 TECO Westinghouse 1 1/2 Hp 3600 RPM 143/145JM Frame 230/460V ODP Close-Coupled 3-Phase Motor
Original price was: $325.60.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 1 1/2 hp 3600 RPM, 3.96/1.98 amps 230/460 Volts 60hz. Three Phase
- NEMA 143/145JM Frame, Special Shaft
- Rolled Steel Frame, Enclosure: Open Drip Proof (IP22)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
