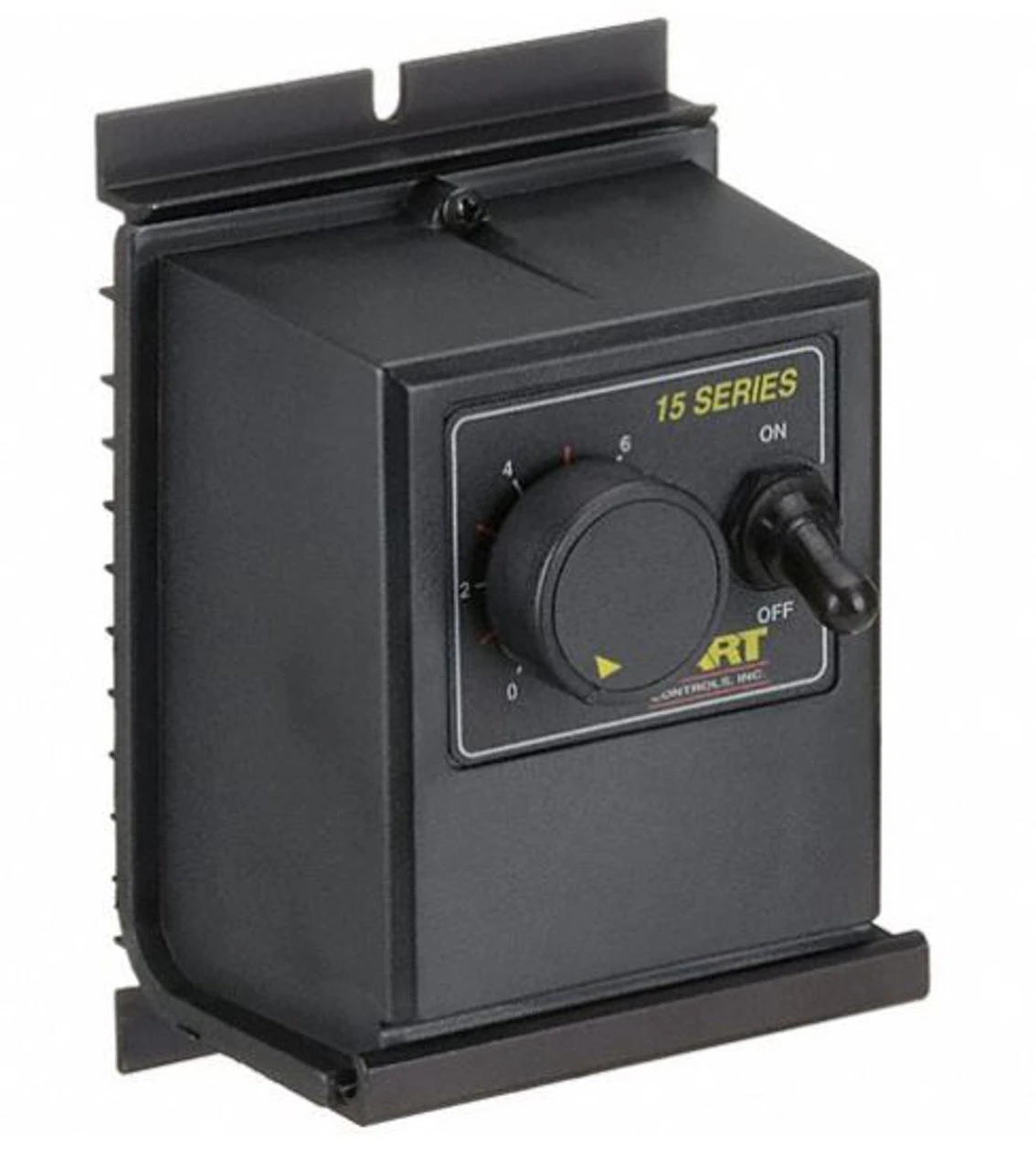

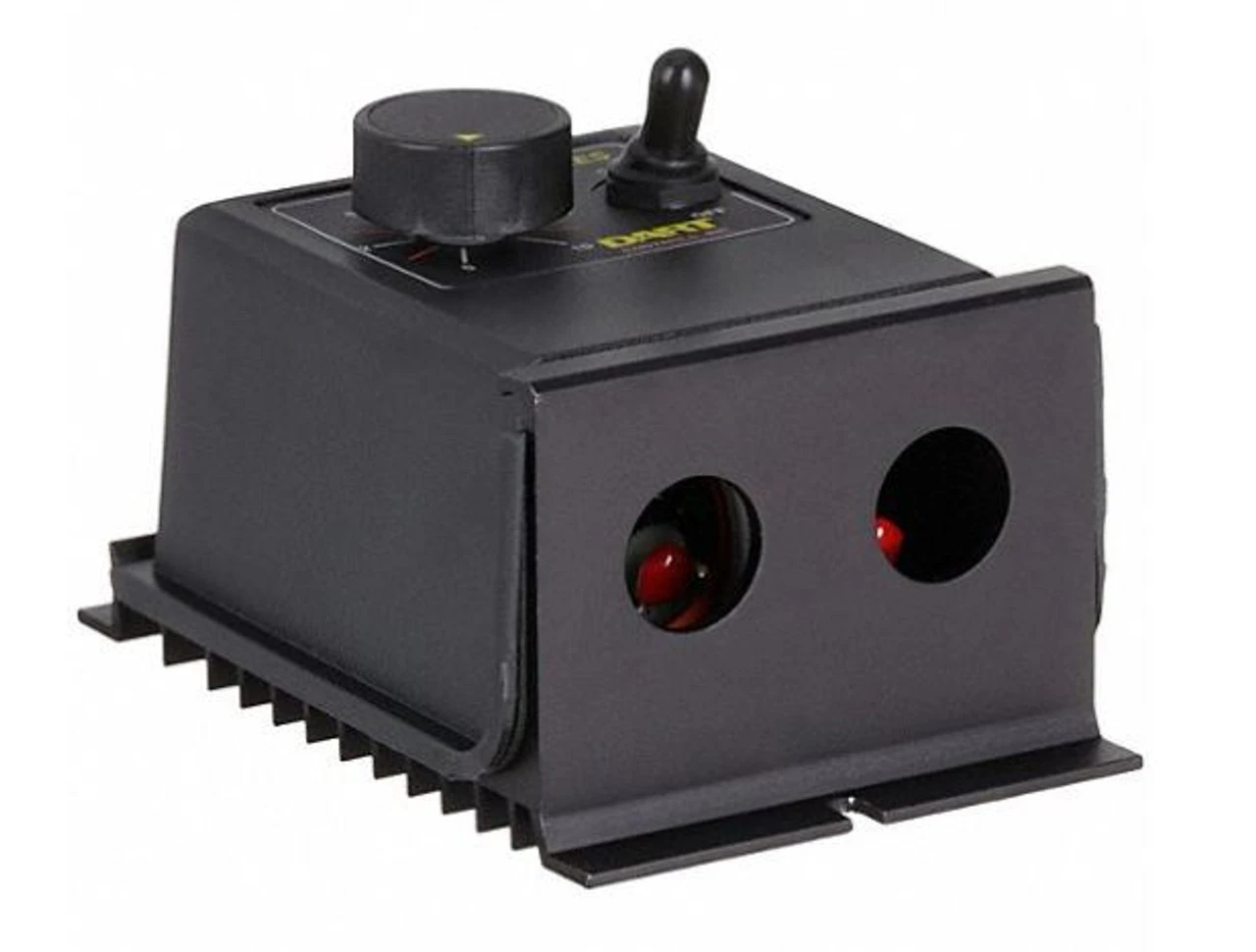

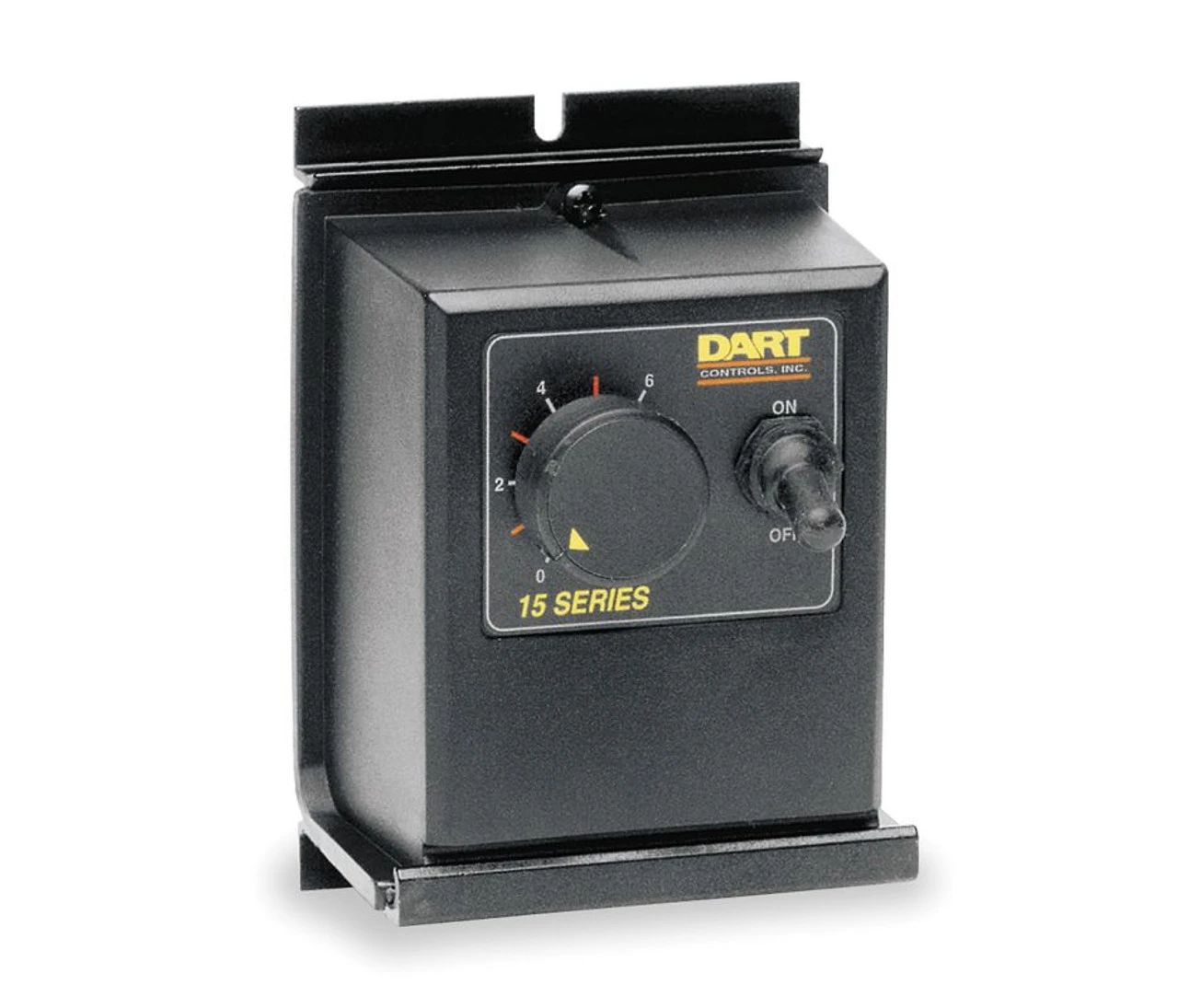

Dart DC Speed Control 90/180VDC, Model 15DVE
Original price was: $227.95.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
Dayton Model 5JJ58
- Input 115/230VAC; 3.0 Max Amperage
- 90V DC Rated up to 1/3HP
- 180V DC Rated up to 2/3HP
- Speed Range 25:1
- Speed Control Dial
- ON/OFF Switch
- Rated NEMA 4 Enclosure
- Non Reversible
- Height 5.5″; Depth 3.5″; Width 3.81″
- Shunt Wound Volts 100/200VDC, MAX amps 3
- cULus Recognized
- One Year Manufacture Warranty
Dynamic Braking = No; Linear Acceleration Fixed 0.5 sec.; IR Compensation Adjustable; Follower Circuit = No
Dart Model: 15DVE
