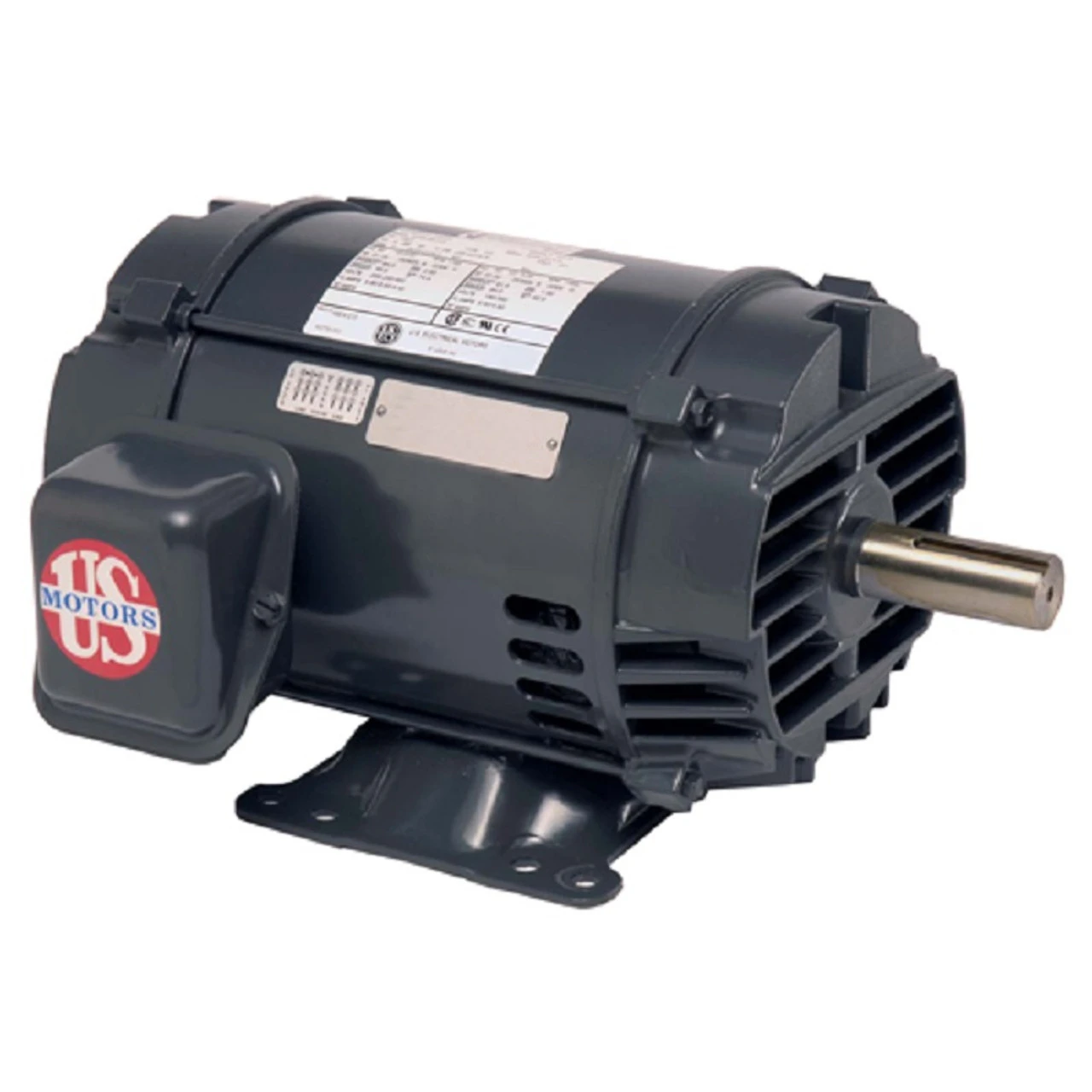

D7P1H Nidec | 7.5 Hp 3600 RPM 184T Frame 200V ODP Motor Electric Motor Nidec
Original price was: $372.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 7.5 hp 3600 RPM, 20.8 amps 200 Volts Three Phase

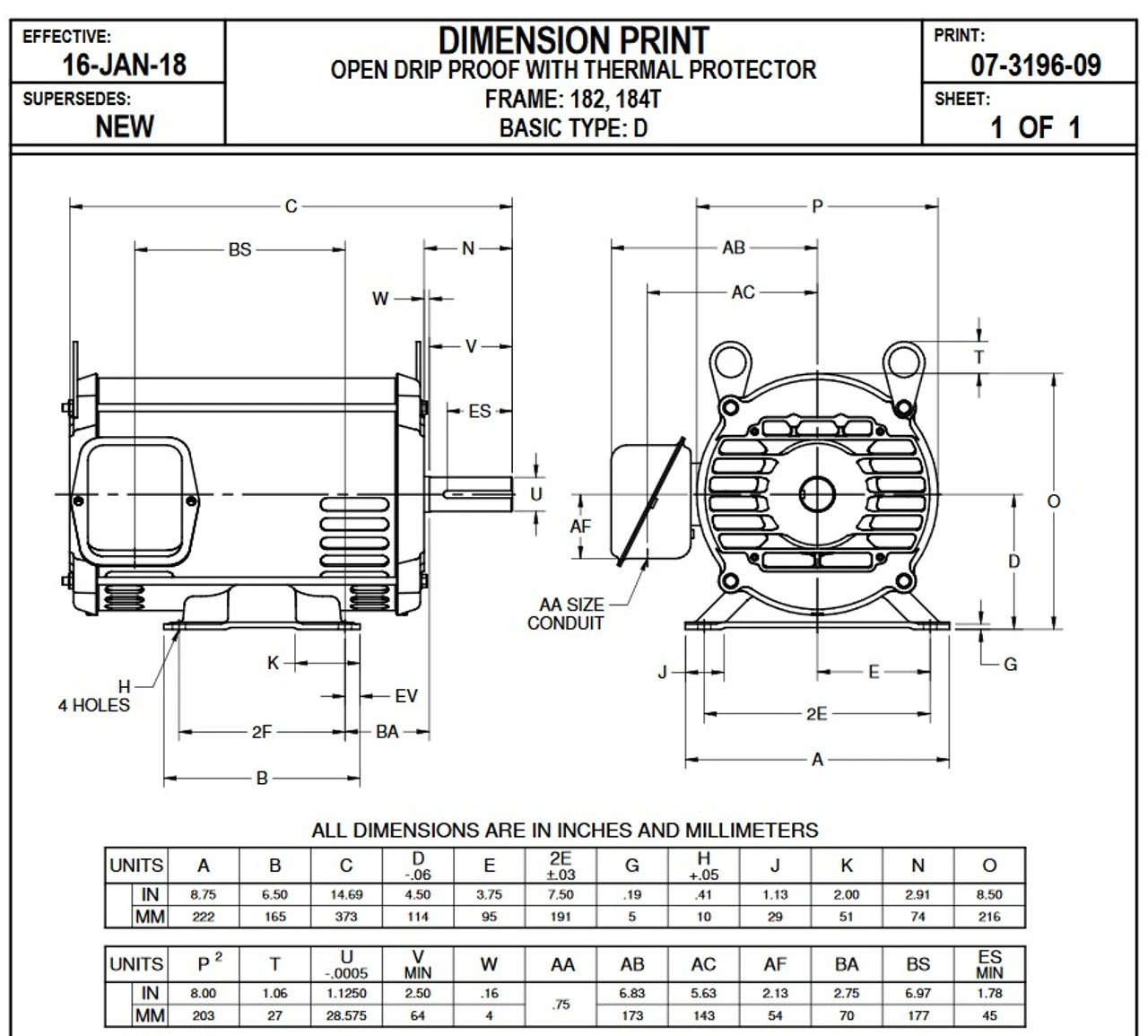

- NEMA 184T frame Keyed Shaft 1-1/8″ x 2 3/4″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model FH93
