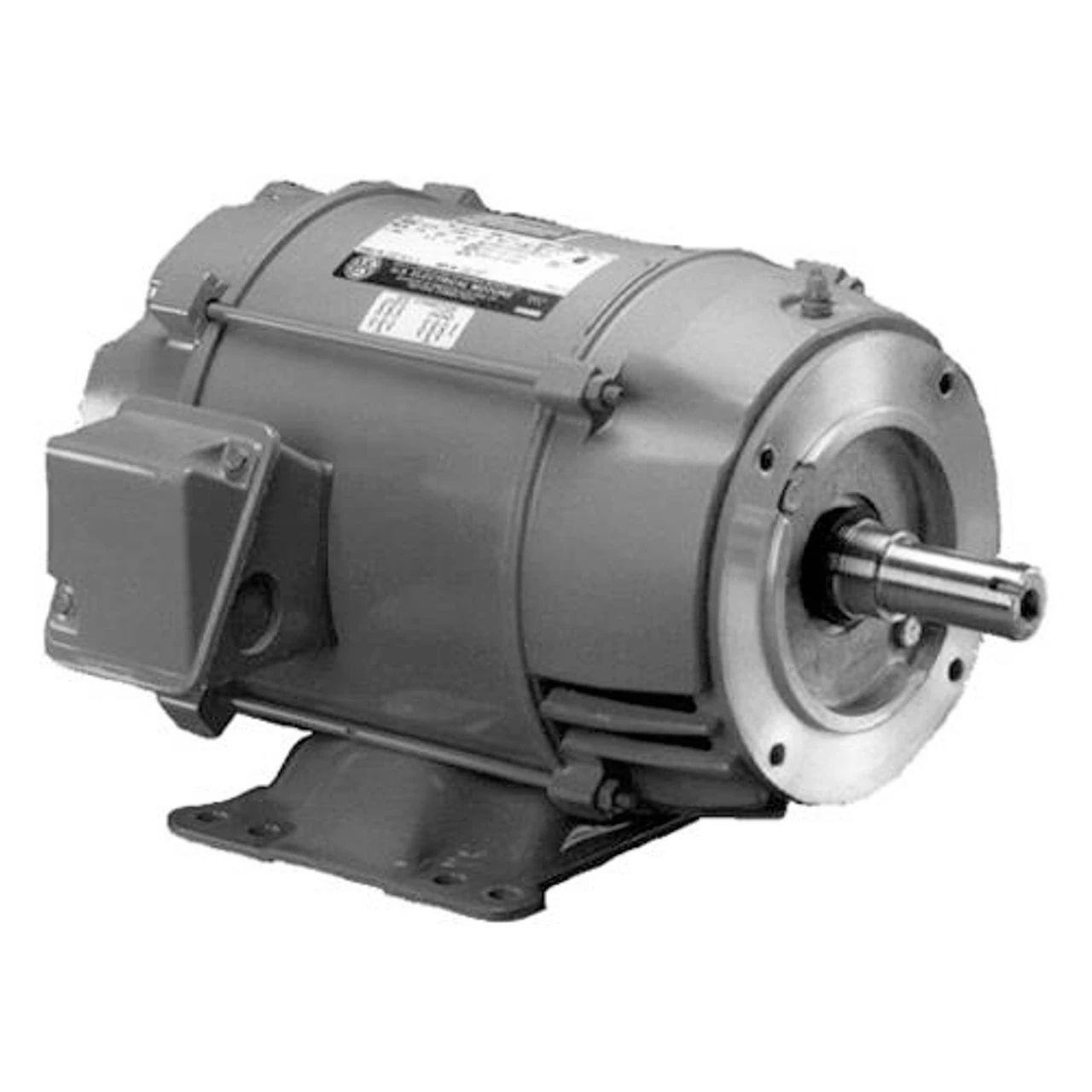

D7P1DC Nidec 7 1/2 Hp 3600 RPM 184TC Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
Original price was: $356.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 7 1/2 hp 3600 RPM, 20.3-18.1/9.0 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

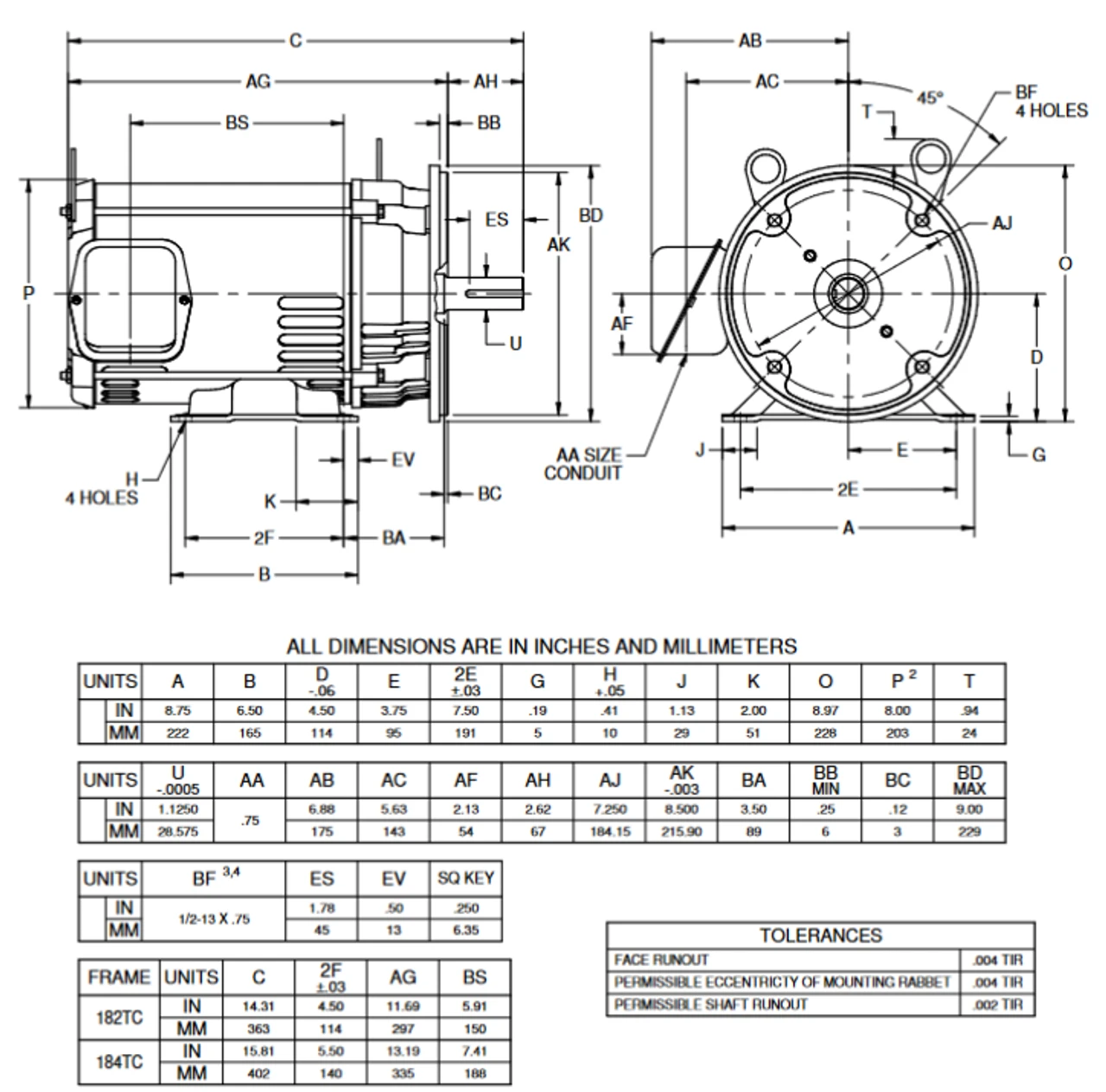

- NEMA 184TC frame Keyed Shaft 1 1/8″ Diameter x 2 3/4″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C-Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof. FV40
