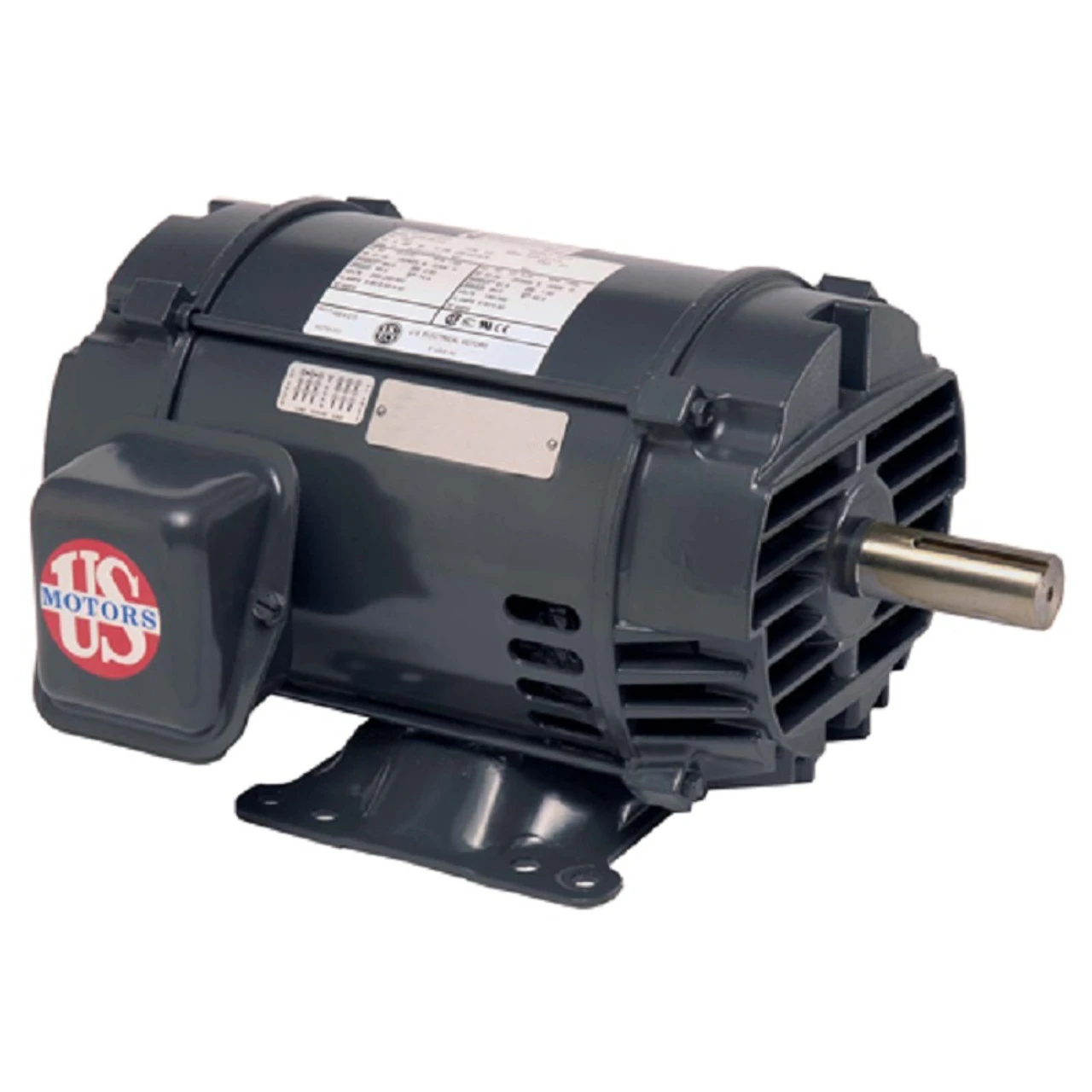

D5PA2A Nidec | 5 Hp 1800 RPM 184T Frame 208-230/460V ODP Motor Electric Motor
Original price was: $392.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 5 hp 1800 RPM, 208-230/460V 13.7-12.4/6.2 amps Three Phase

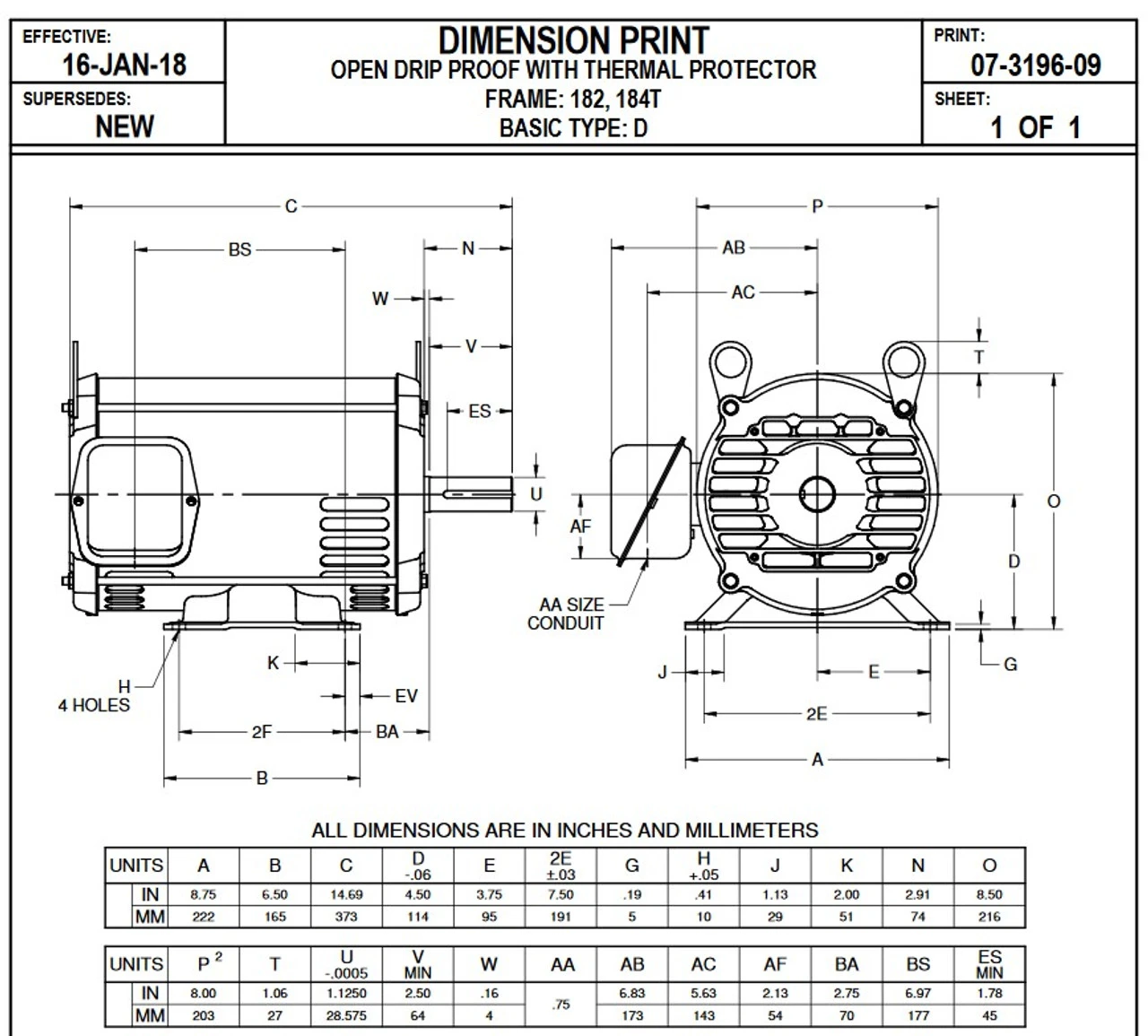

- NEMA 184T frame Keyed Shaft 1-1/8″ x 2 3/4″
- ODP; Service Factor: 1.15, Overload protection = Auto
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- Motor case length 11.7″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Application: Lennox Commercial Blower; FV44; Suggested after market replacement for 24G2101, D5EA2A
