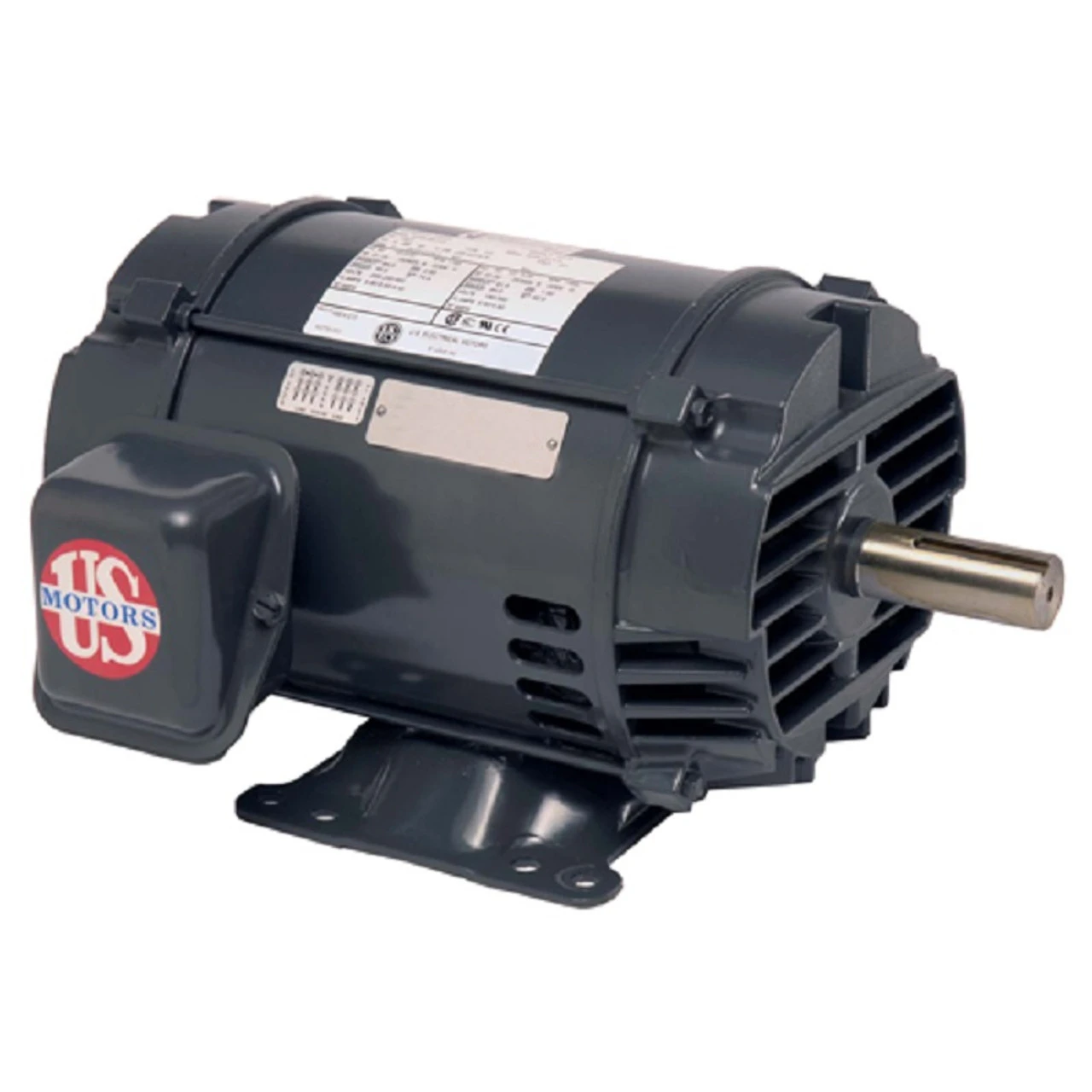

D5P2G Nidec | 5 Hp 1800 RPM 184T Frame 575V ODP Motor Electric Motor Nidec
Original price was: $351.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 5 hp 1800 RPM, 575V 4.9 amps Three Phase

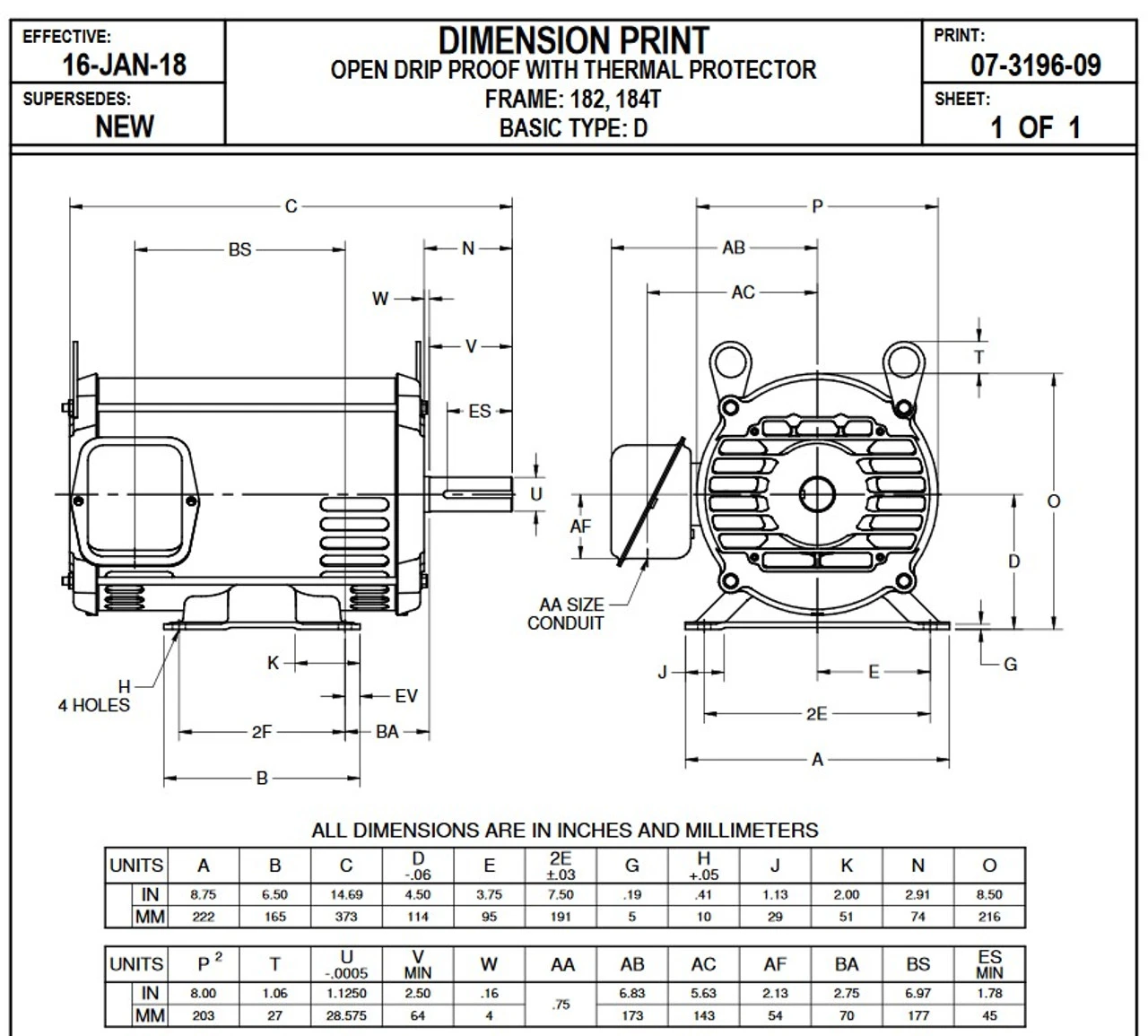

- NEMA 184T frame Keyed Shaft 1-1/8″ x 2 3/4″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model HD83, Dayton 6YW20
