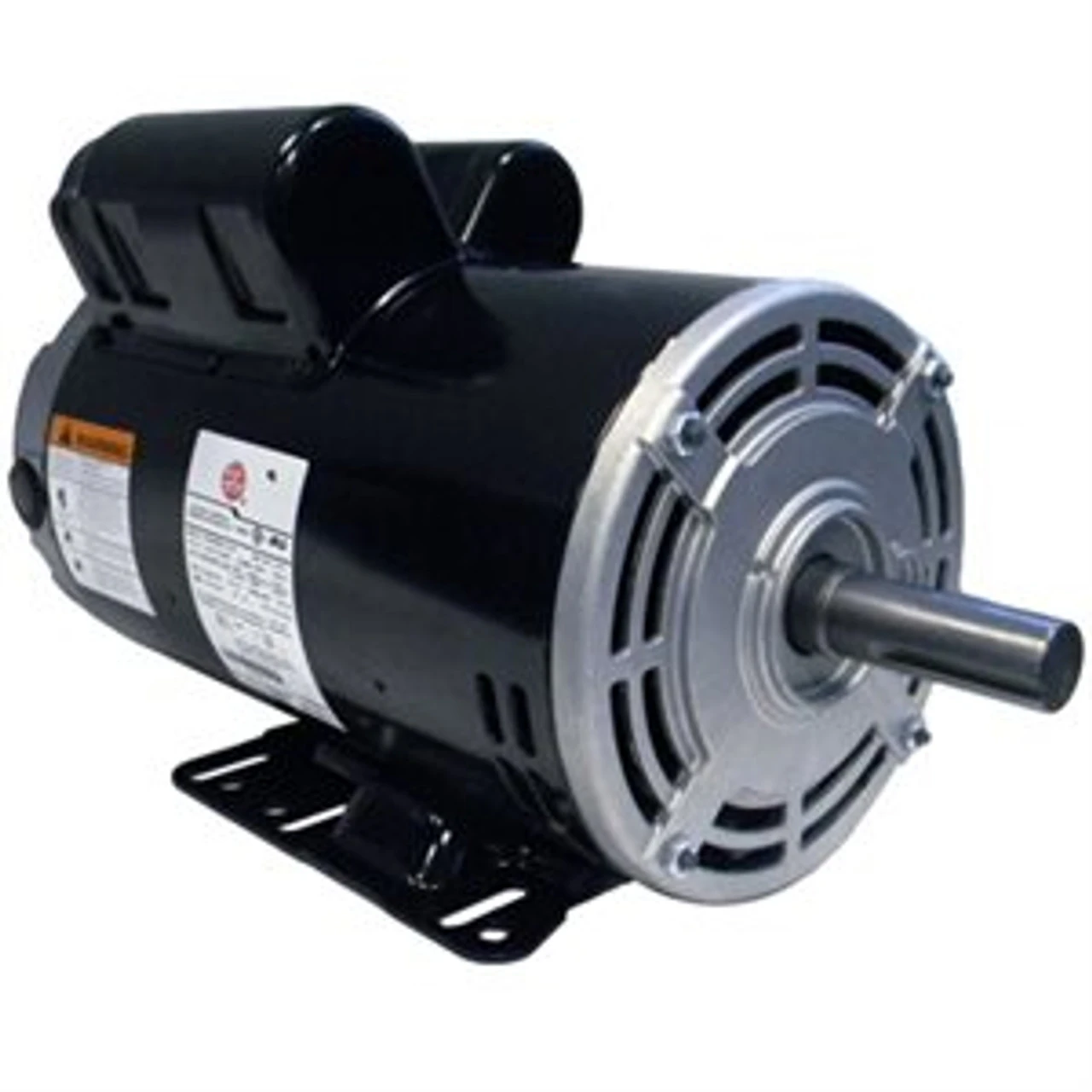

D5CM1K14 Nidec 5 HP 3600 RPM 208-230V 56 Frame (Base) ODP Air Compressor Motor

D5CM1K14 Nidec 5 HP 3600 RPM 208-230V 56 Frame (Base) ODP Air Compressor Motor - Image 2

D5CM1K14 Nidec 5 HP 3600 RPM 208-230V 56 Frame (Base) ODP Air Compressor Motor

Original price was: $321.00.Current price is: $98.99.

SKU: ZWXLY 1698662549 Categories: Air Compressor Motors, Electric Motors Tag: Nidec

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

5 HP 3600 RPM (1 speed), 22.0 amps 208-230V Volts 60 Hz Capacitor Start/Run Motor
56 Frame, Rolled Steel, Keyed Shaft 7/8″ Diameter x 2 3/8″
Service Factor = 1.0, Overload Protection: Manual
Rigid Base Mount, Ball Bearings, Class F Insulation, CCW drive end
1 Year Manufacture Warranty

Motor for air compressor requiring a high break-down torque. Wiring diagram on motor name plate. ODP = Open Drip-Proof, T063WBZ1538013B
