D40P3E Nidec | 40 Hp 1200 RPM 364T Frame 230/460V ODP Electric Motor Nid
Original price was: $317.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 40 hp 1200 RPM, 92.0/46.0 amps 230/460V, 50/60hz. Three Phase

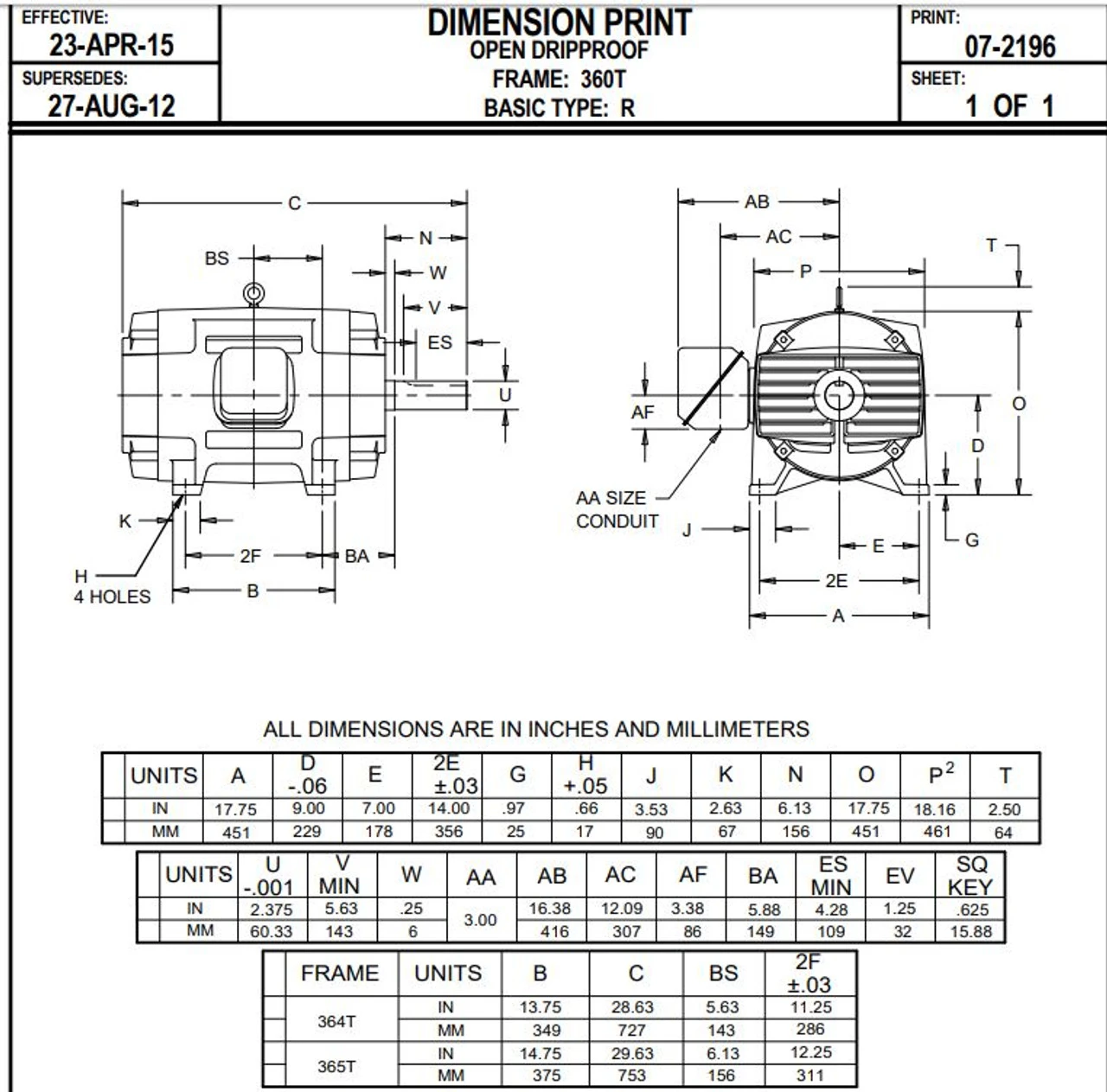

- NEMA 364T Frame Keyed Shaft 2 3/8″ Diameter x 5 7/8″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- “C” Dimension 28.7″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model DC72
