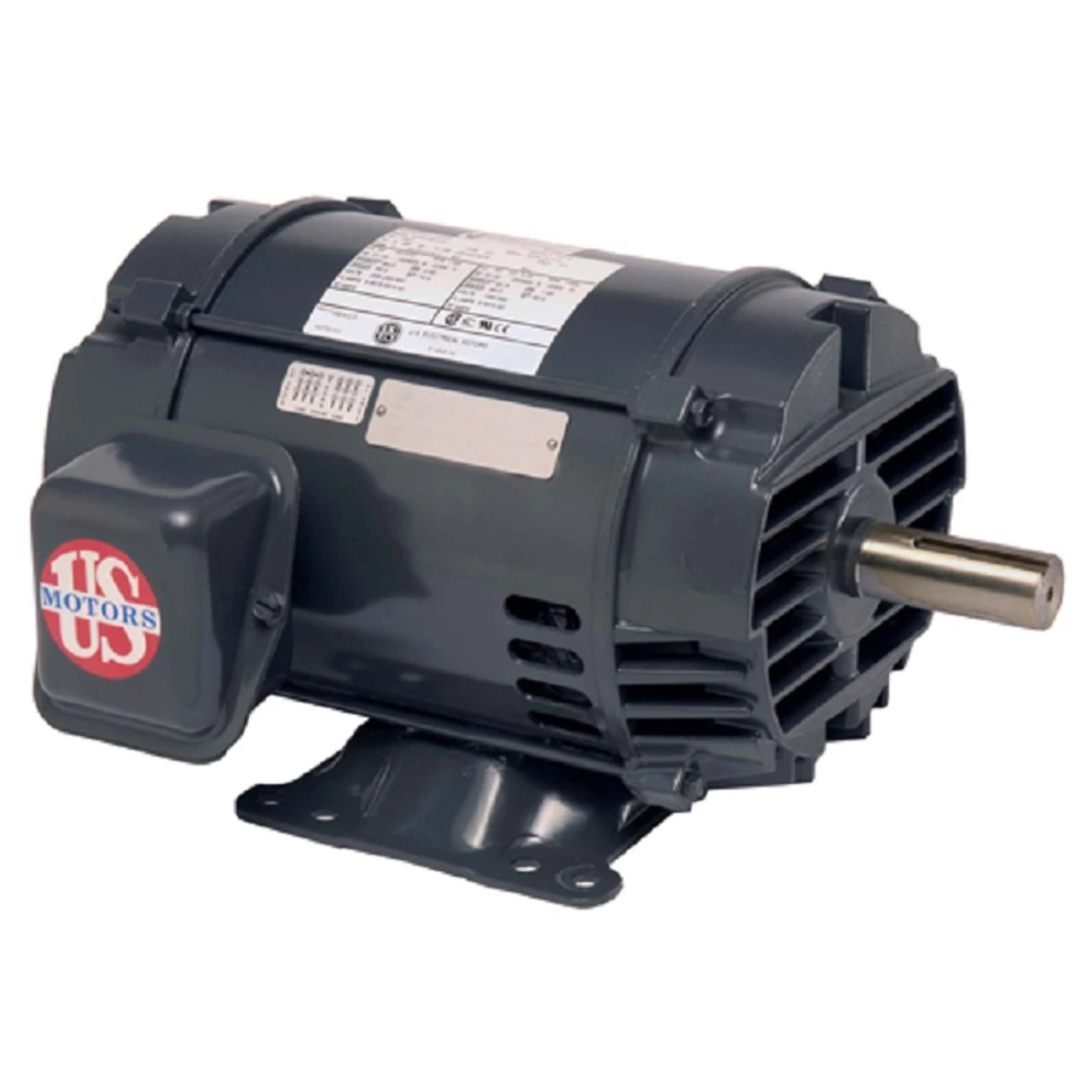

D3P2G Nidec | 3 Hp 1800 RPM 182T Frame 575V ODP Motor Electric Motor Nidec
Original price was: $309.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3 hp 1800 RPM, 3.1 amps 575 Volts 50/60hz. Three Phase

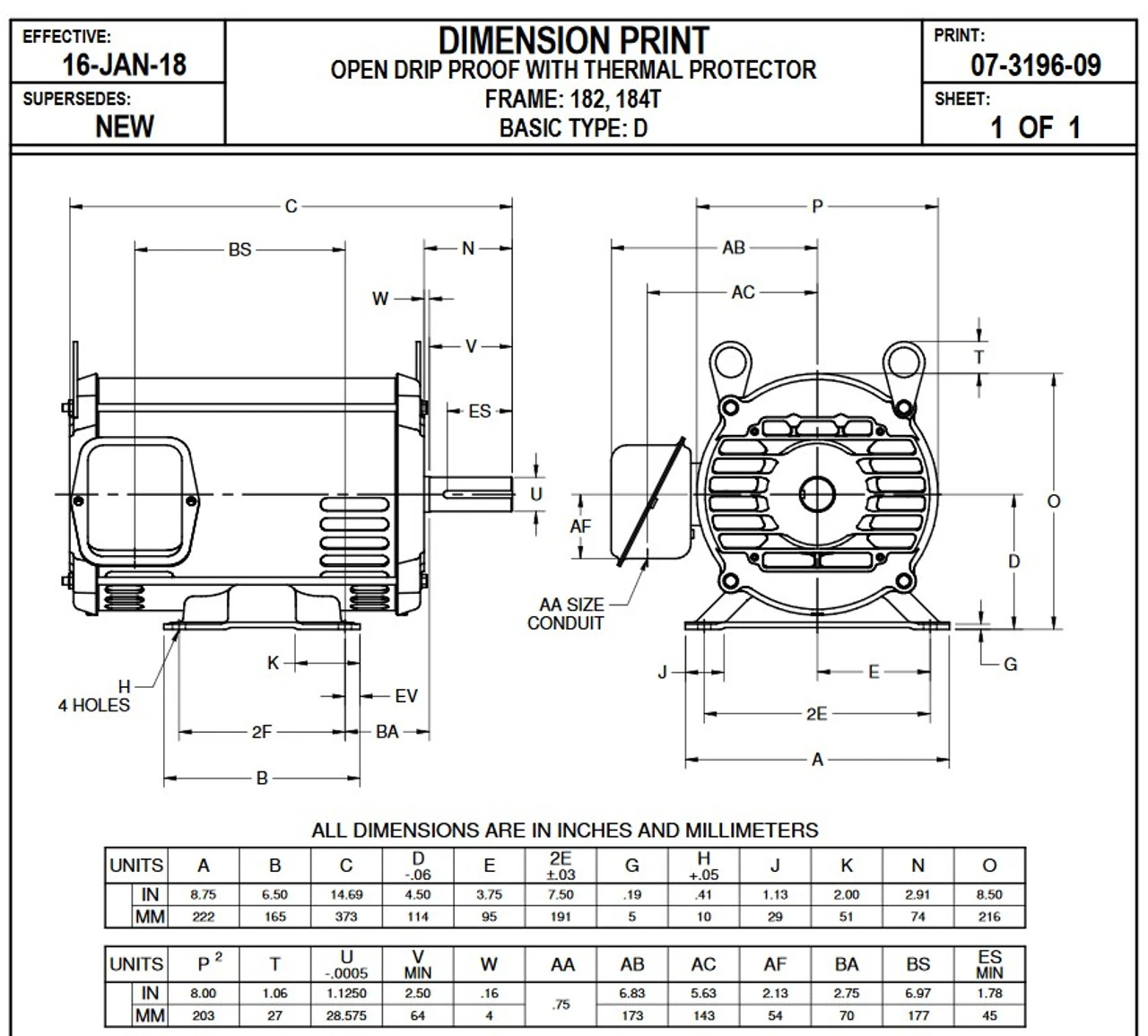

- NEMA 182T frame Keyed Shaft 1-1/8″ x 2 3/4″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model FH80, Dayton 6YV42
Be the first to review “D3P2G Nidec | 3 Hp 1800 RPM 182T Frame 575V ODP Motor Electric Motor Nidec”
