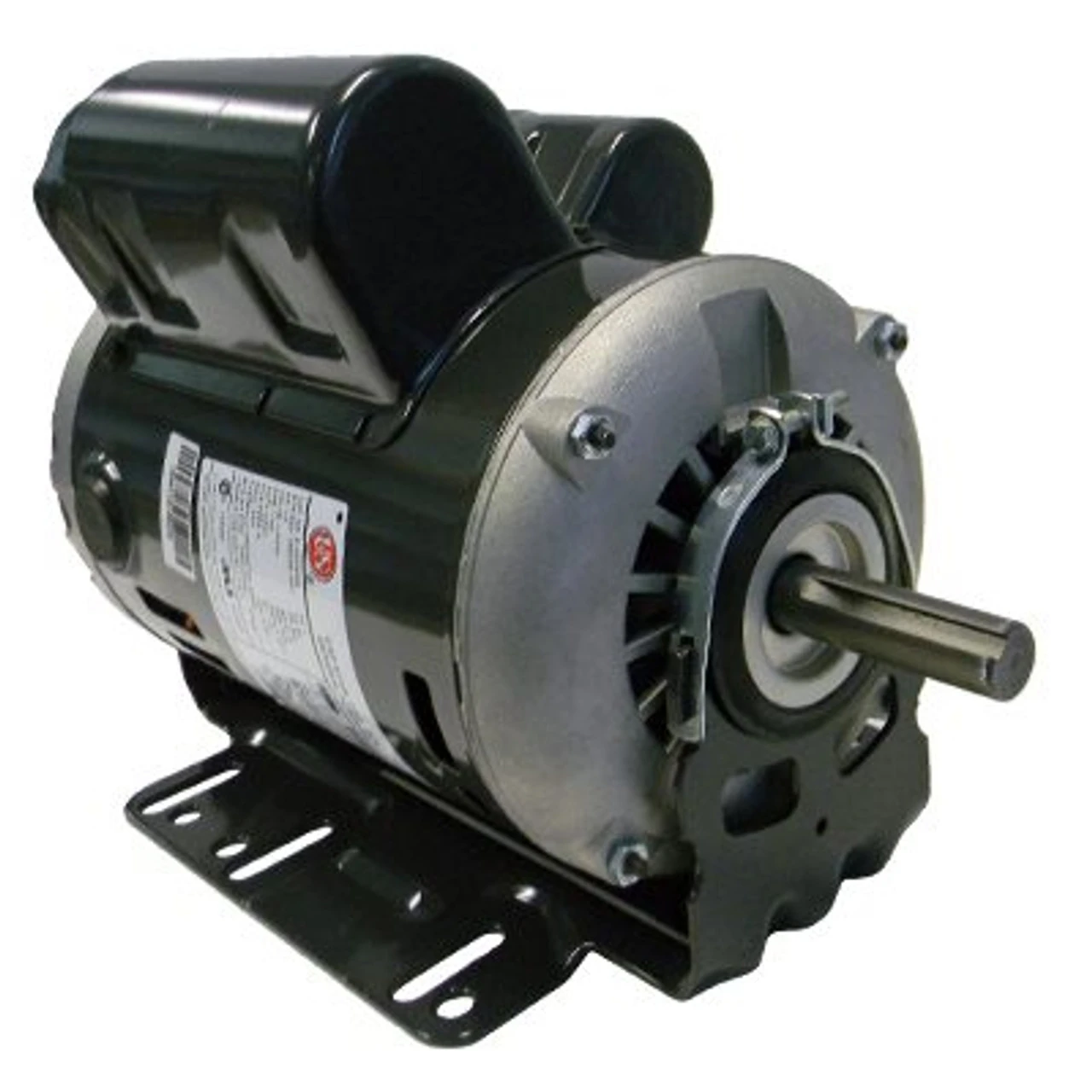

D34CPA2PH9 Nidec 3/4 Hp 1800 RPM 56H Frame (Resilient Base) 1-Speed 115/230V ODP Cap Start/Run Motor
Original price was: $397.58.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3/4 hp 1800 RPM, 7.0/3.5 amps 115/230 Volts 60 Hz Capacitor Start/Run Motor
- NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.25 Overload protection = Auto
- Resilient Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty

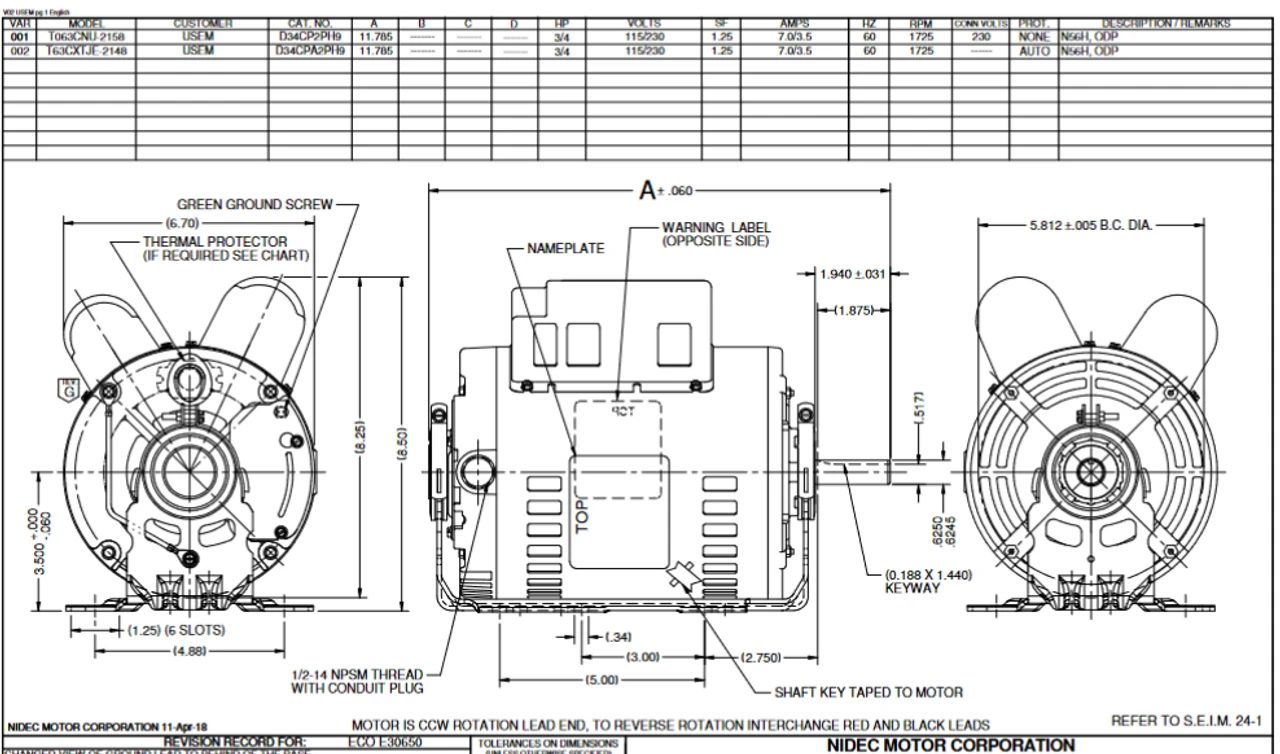

For compressor, pumps, and conveyors needing a motor with high starting torque. Wiring diagram on motor name plate. ODP = Open Drip-Proof. T063TJE2148012B
