D32V3B Nidec 1 1/2 Hp 1200 RPM 182T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
Original price was: $300.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 1/2 hp 1200 RPM, 5.2/2.6 amps 230/460 Volts 60 Hz Three Phase Motor

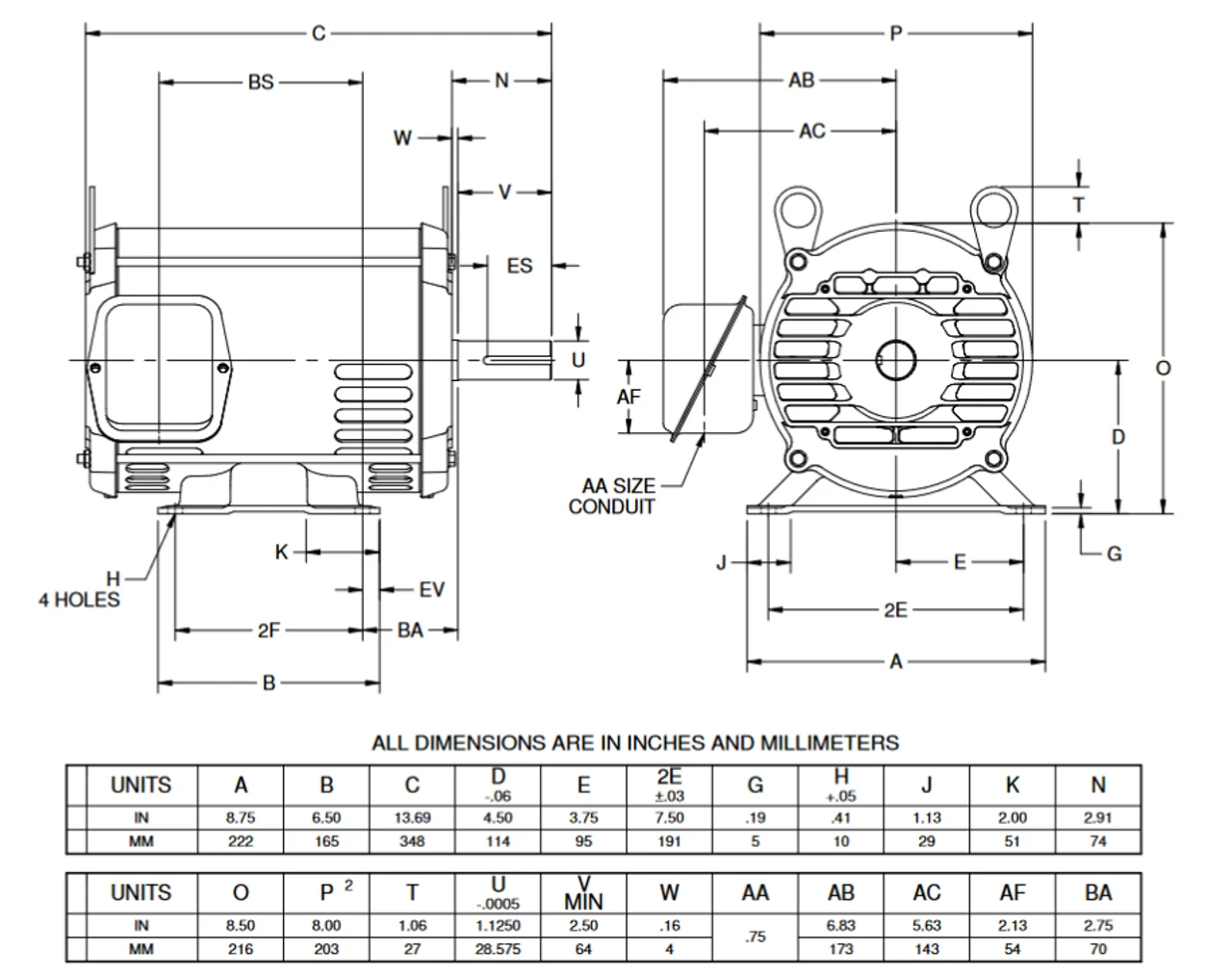

- NEMA 182T Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8″ Diameter x 2 3/4″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. FV31
