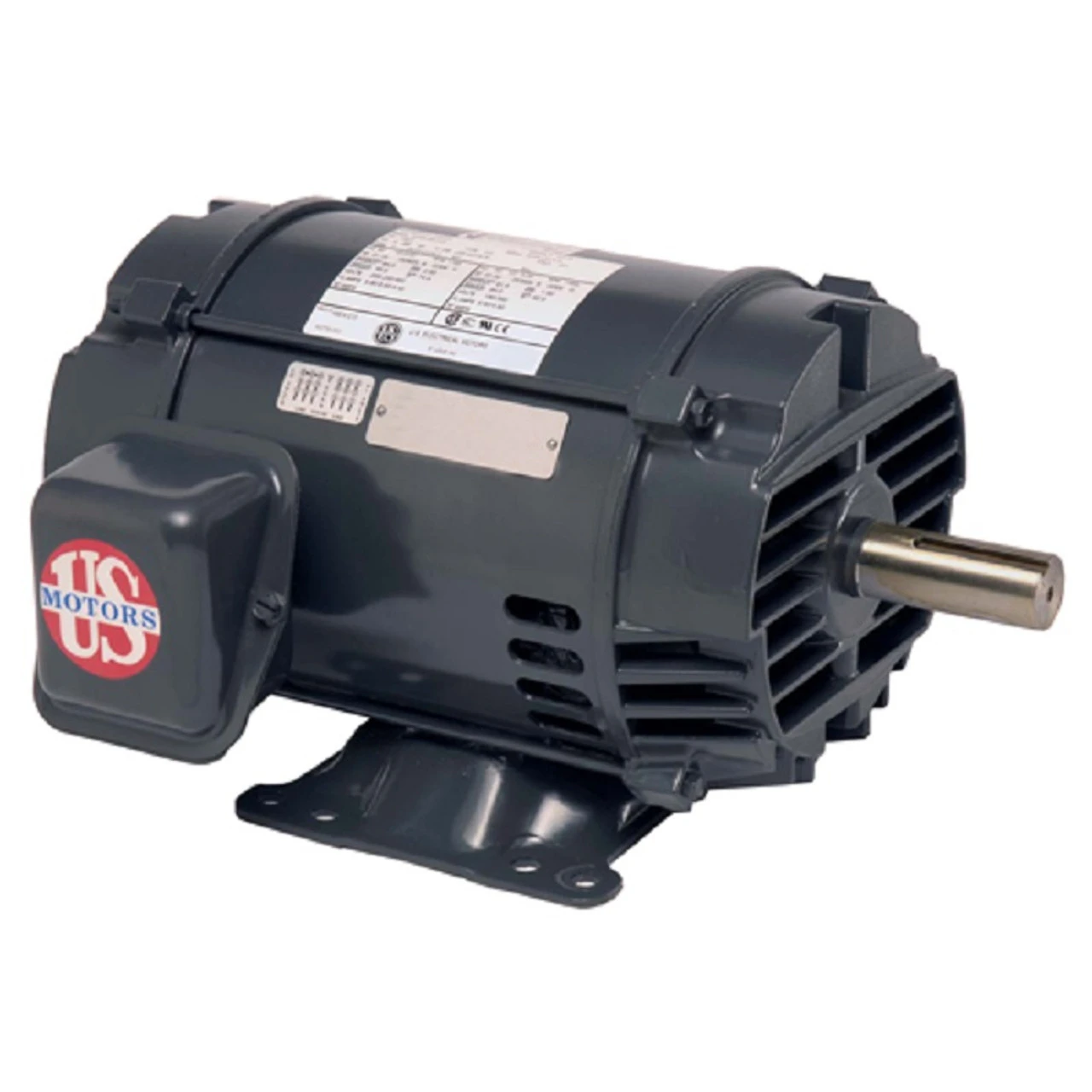

D30P2H Nidec | 30 Hp 1800 RPM 286T Frame 200V ODP Electric Motor Nidec
Original price was: $326.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 30 hp 1800 RPM, 79.0 amps 200V Three Phase
- NEMA 286T Frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

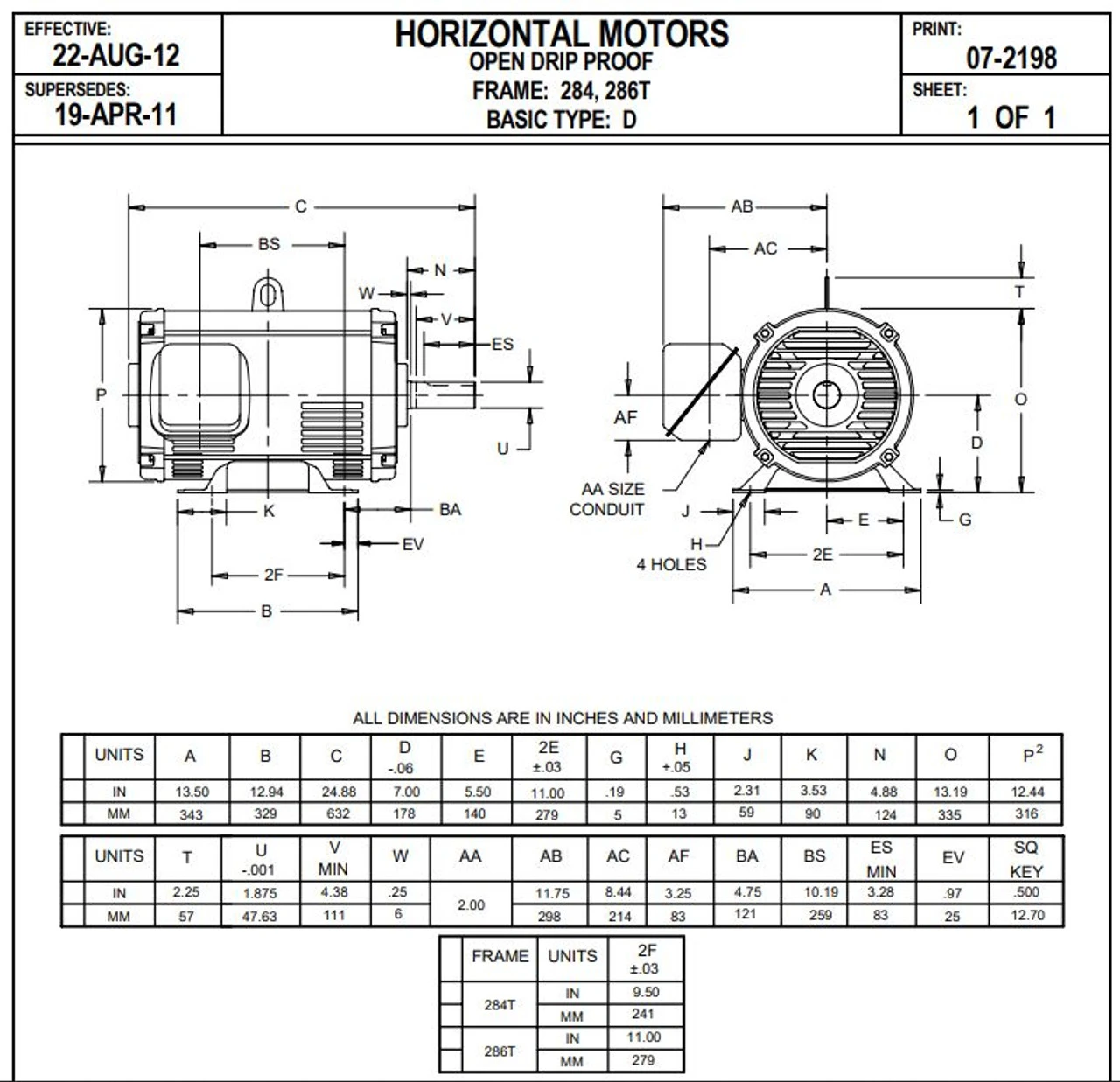

- “C” Dimension 24.9″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model DC10
