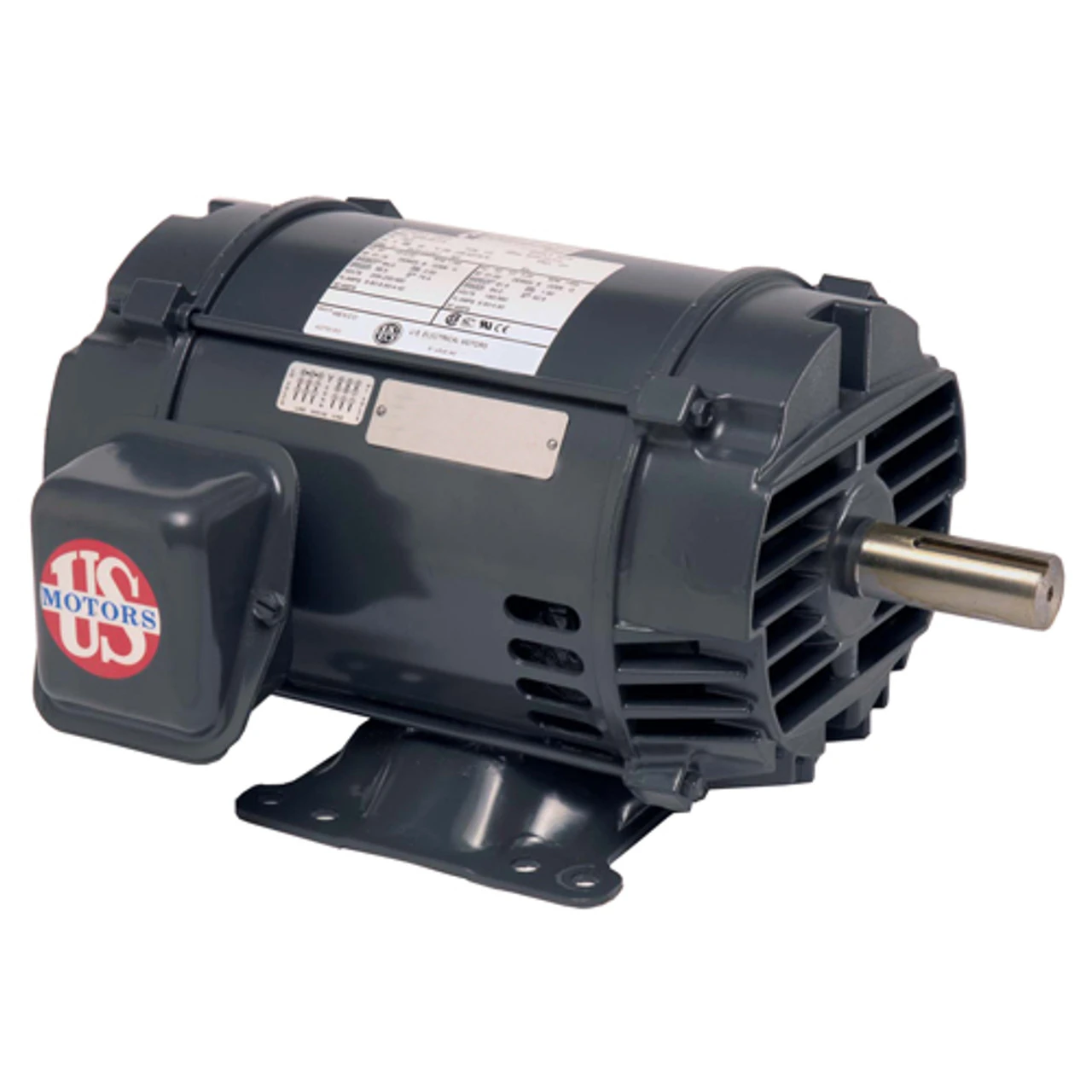

D20P2H Nidec 20 Hp 1800 RPM 256T Frame (Rigid Base) 200V ODP 3-Phase Electric Motor
Original price was: $330.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 20 hp 1800 RPM, 54.0 amps 200 Volts 60 Hz Three Phase Motor

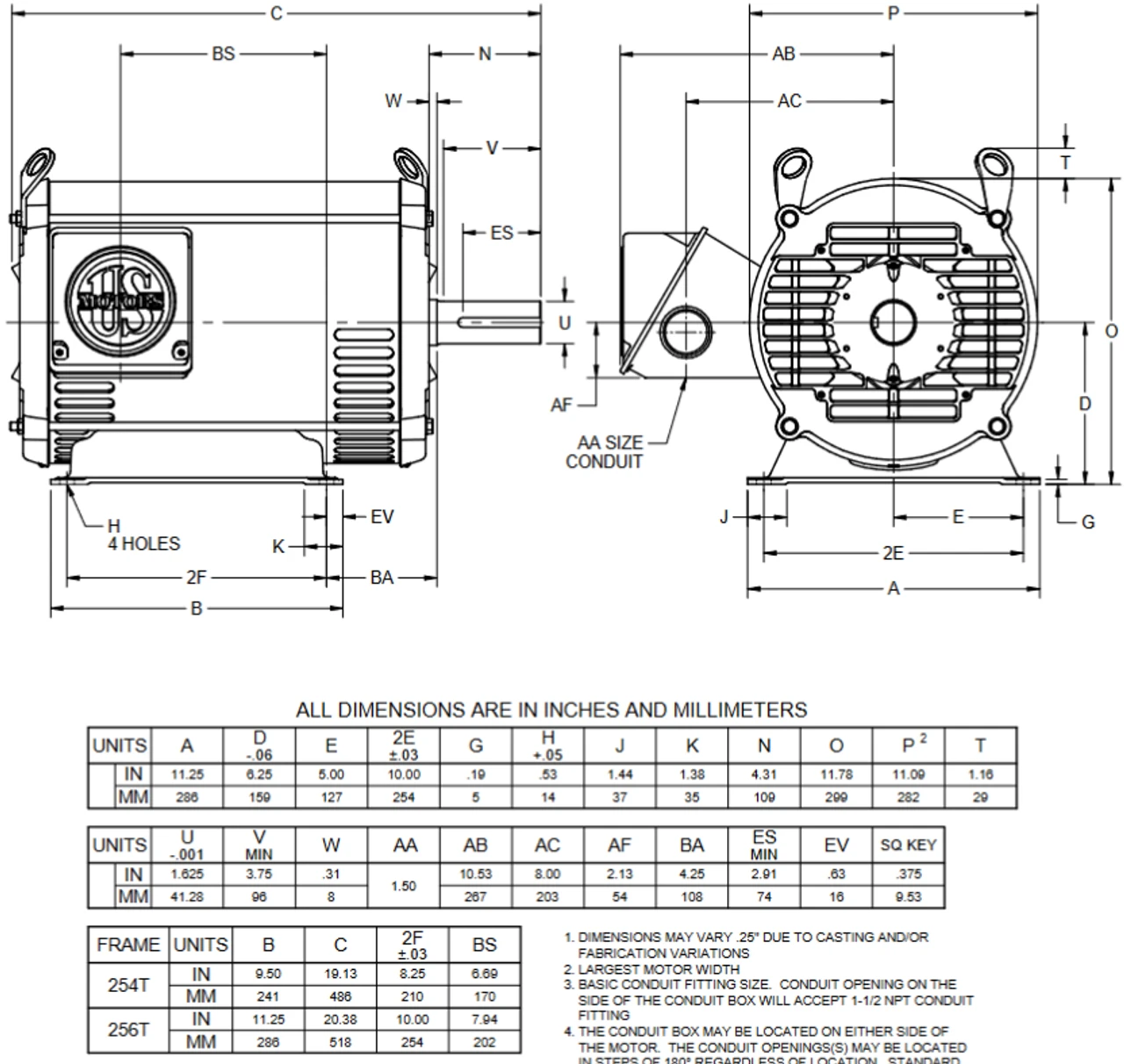

- NEMA 256T Rolled Steel Frame, Keyed Shaft 1 5/8″ Diameter x 4″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. FP90
Be the first to review “D20P2H Nidec 20 Hp 1800 RPM 256T Frame (Rigid Base) 200V ODP 3-Phase Electric Motor”
