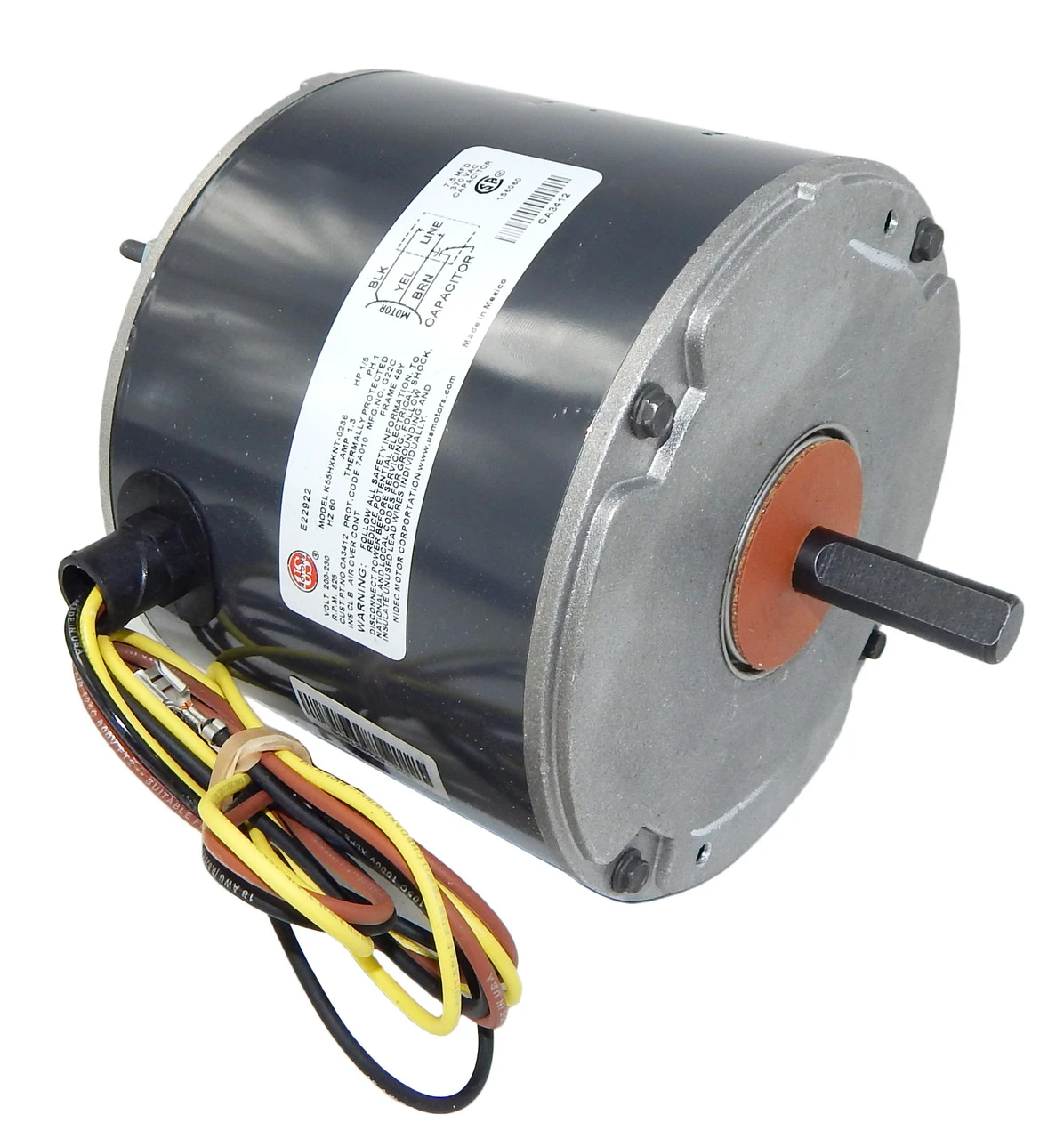

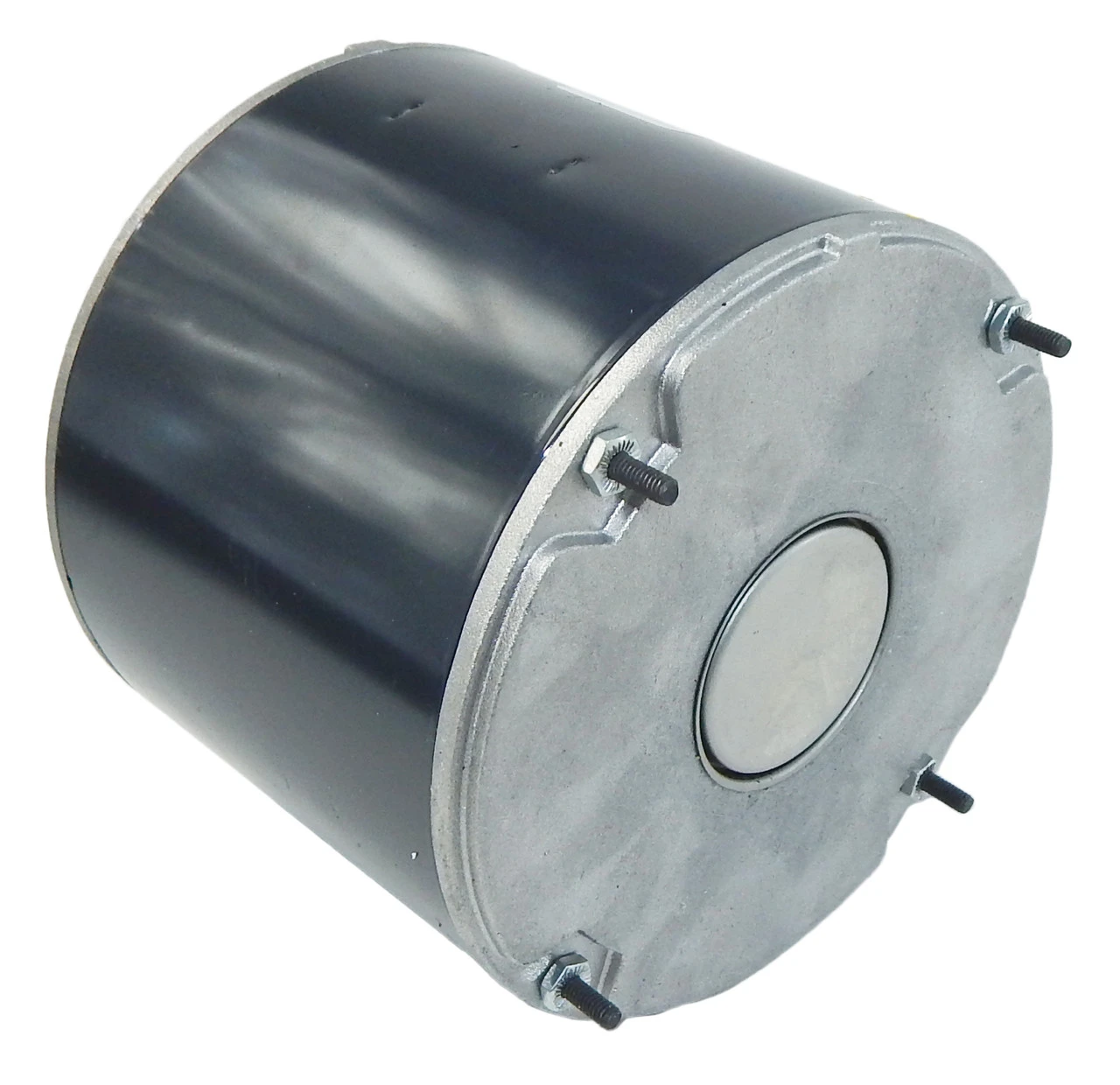

CA3412 Nidec | 1/5 Hp 825 RPM 1-Speed 208-230V, Carrier Condenser Motor (HC37GE208)

CA3412 Nidec | 1/5 Hp 825 RPM 1-Speed 208-230V, Carrier Condenser Motor (HC37GE208) - Image 2

CA3412 Nidec | 1/5 Hp 825 RPM 1-Speed 208-230V, Carrier Condenser Motor (HC37GE208) - Image 3

CA3412 Nidec | 1/5 Hp 825 RPM 1-Speed 208-230V, Carrier Condenser Motor (HC37GE208)

Original price was: $126.95.Current price is: $88.87.

SKU: ZWXLY 1698667169 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Rotom

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

Carrier A/C Condenser Replacement Fan Motor

1/5 hp, 208-230V, 1.3 amps
825 RPM, 1-Speed
7.5 MFD/370VAC Capacitor Required
Shaft 1/2″ x 1.625″
Rotation: CCW Shaft End
Body Diameter 5-5/8″
Motor case length 4.56″
Sleeve Bearings
40″ leads, Automatic Thermal Reset
40° Ambient Temp
TEAO Totally Enclosed Enclosure
1 Year Manufacture Warranty

Suggested replacement reference for:
Carrier HC37GE208, HC37GE208A, HC37GE210
GE Genteq 3S003, 5KCP39GFY917S, 5KCP39HGZ037S
Nidec US Motor K55HXKNA-0219, K55HXKNT-0236, K055KNT0236013B

We recommend replacing the run capacitor
Please use this link to help select a new capacitor
