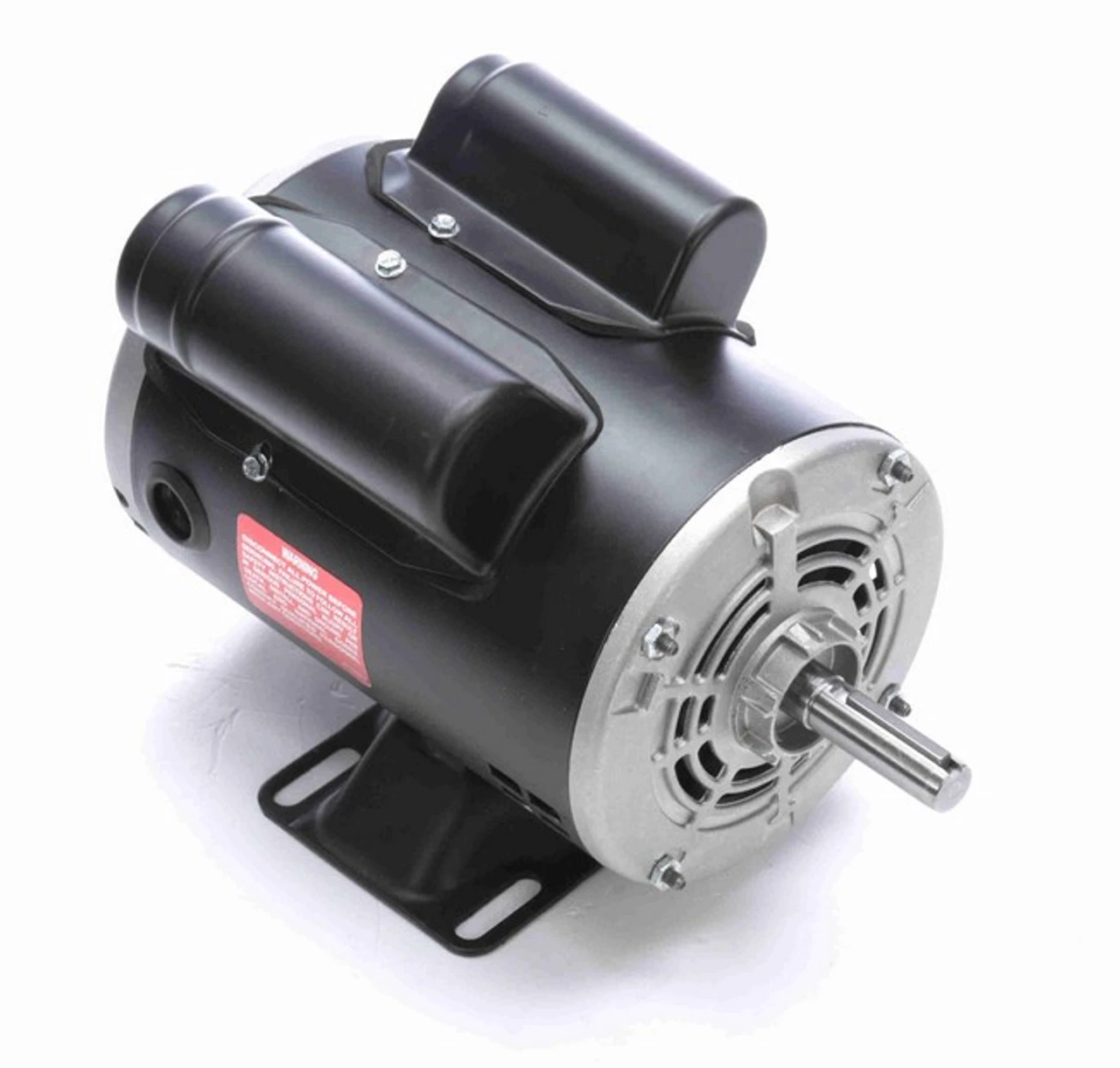

C457ES Century 1/3 Hp 1800 RPM 1-Phase 56 Frame ODP (rigid Base) 115/230V Century Motor # C457ES

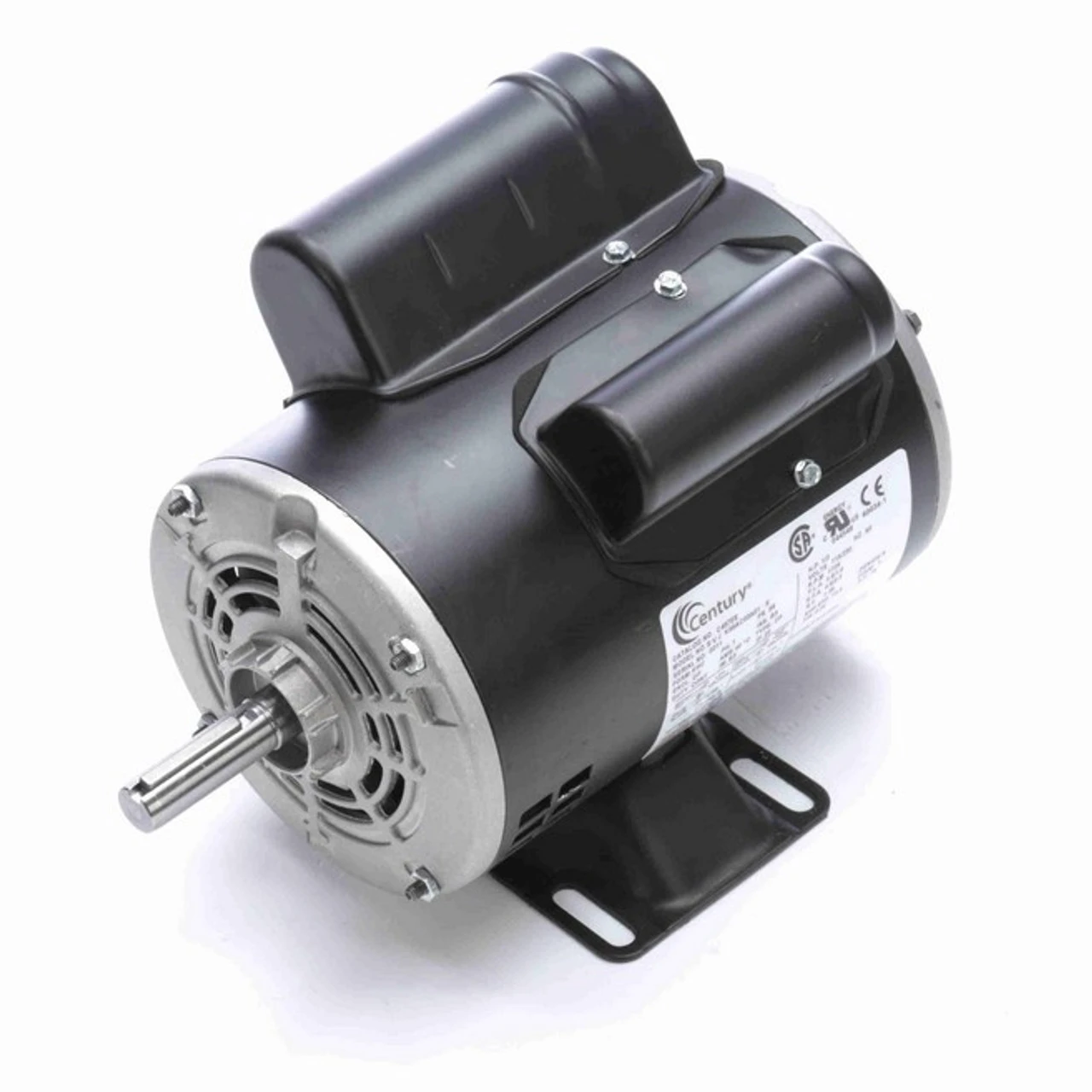

C457ES Century 1/3 Hp 1800 RPM 1-Phase 56 Frame ODP (rigid Base) 115/230V Century Motor # C457ES - Image 2

C457ES Century 1/3 Hp 1800 RPM 1-Phase 56 Frame ODP (rigid Base) 115/230V Century Motor # C457ES - Image 3

C457ES Century 1/3 Hp 1800 RPM 1-Phase 56 Frame ODP (rigid Base) 115/230V Century Motor # C457ES - Image 4

C457ES Century 1/3 Hp 1800 RPM 1-Phase 56 Frame ODP (rigid Base) 115/230V Century Motor # C457ES

Original price was: $237.90.Current price is: $96.99.

SKU: ZWXLY 1698656287 Categories: Century Electric Motors, Electric Motors Tag: Century Electric Motor

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1/3 hp 1800 RPM, 3.8/1.9 amps 115/230 Volts 60hz. Single Phase
NEMA 56 frame, Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.35, Overload protection = None
Rigid Base, Reversible, Ball Bearings, Class B Insulation
1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a single phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. C457ES
