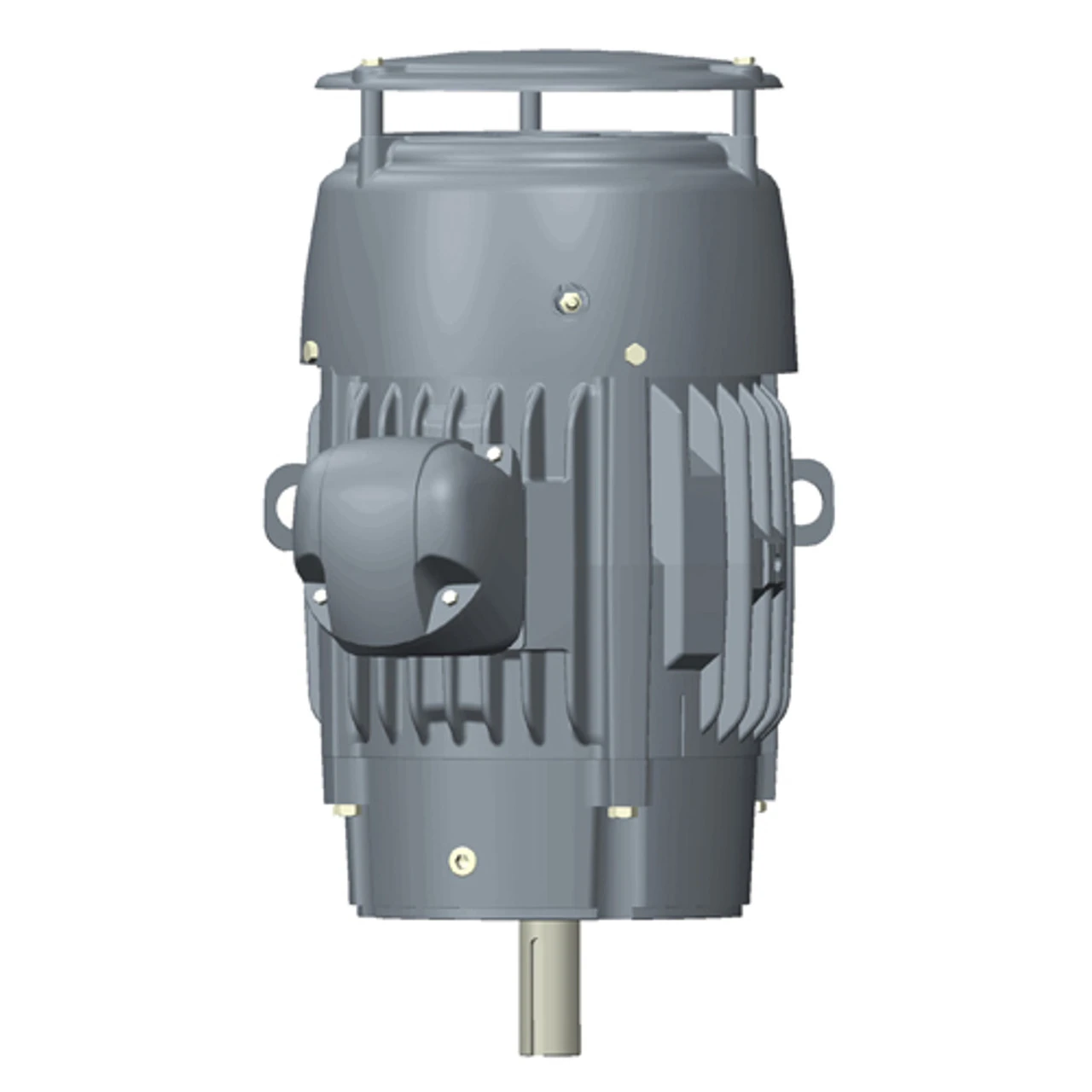

C3P2DCR Nidec 3 Hp 1800 RPM 182TC Frame (Vertical) 208-230/460V TEFC 3-Phase C-Face Motor
Original price was: $312.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3 hp 1800 RPM, 9.6-8.8/3.9 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

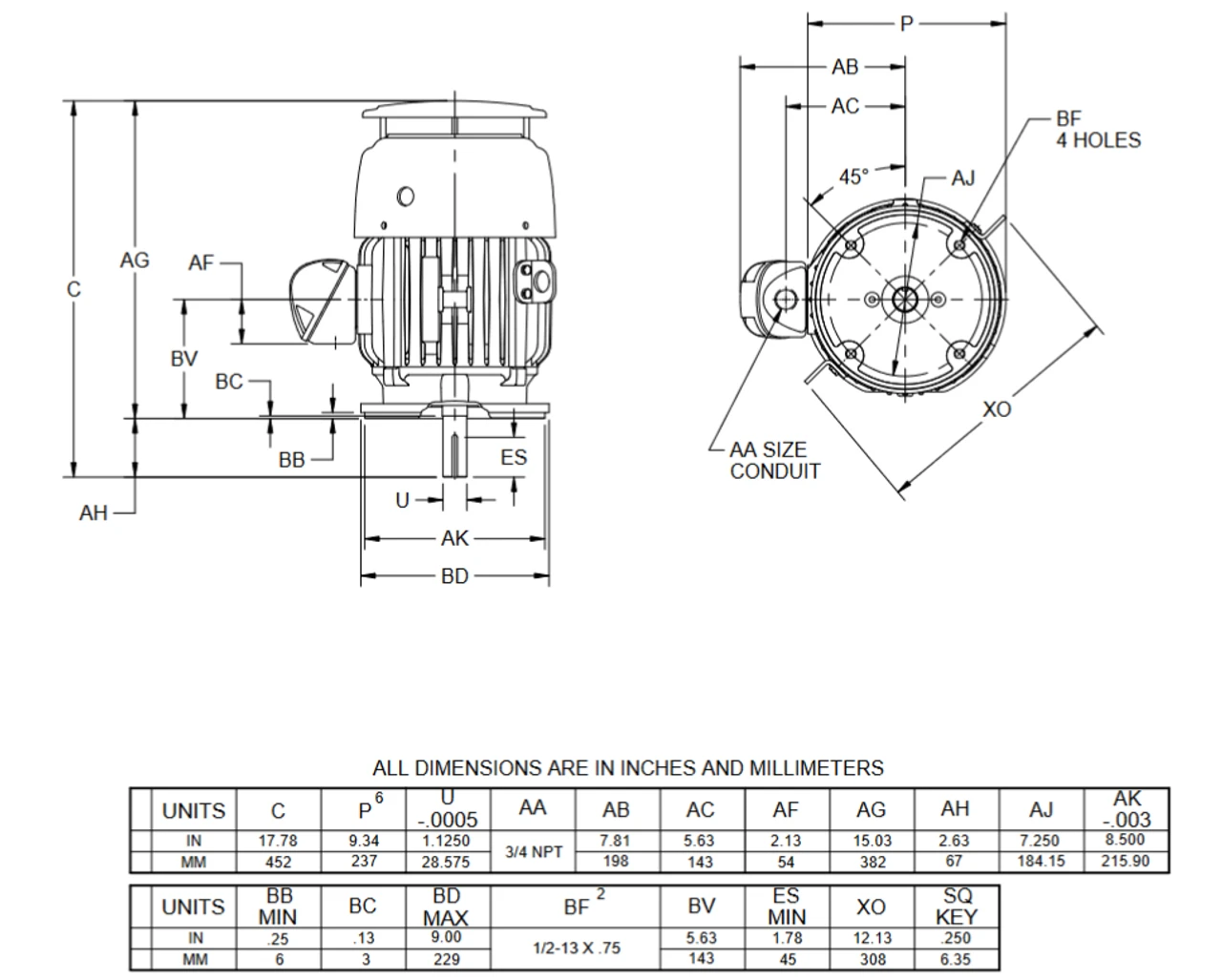

- NEMA 182TC cast iron frame, Keyed Shaft 1 1/8″ Diameter x 2 3/4″
- Service Factor: 1.15, Overload protection = None
- Vertical C-Face Mount, Regreasable Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Three phase motor designed for chemically corrosive environments with either 50 or 60 Hz power. Inverter Duty. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DW71
