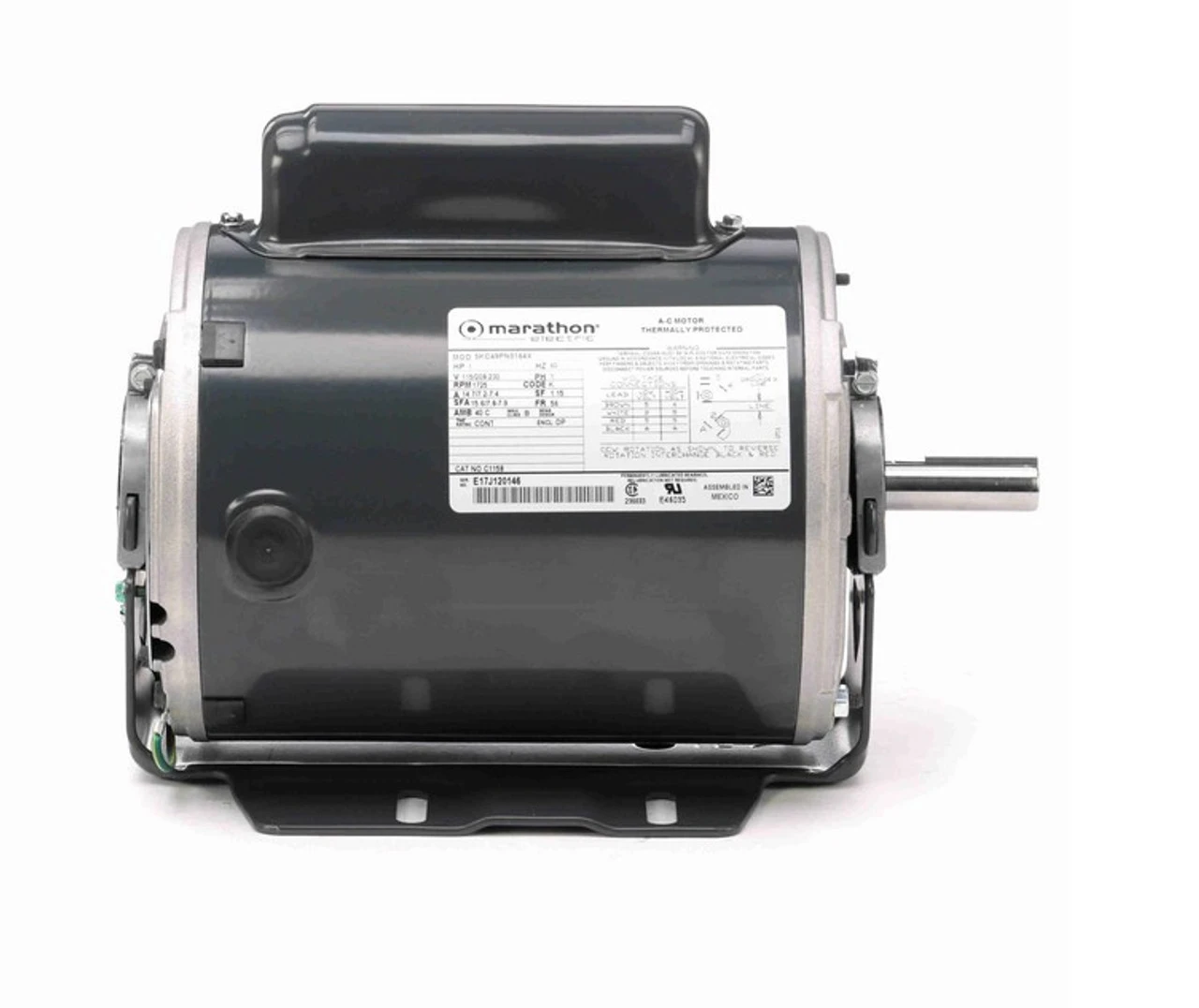

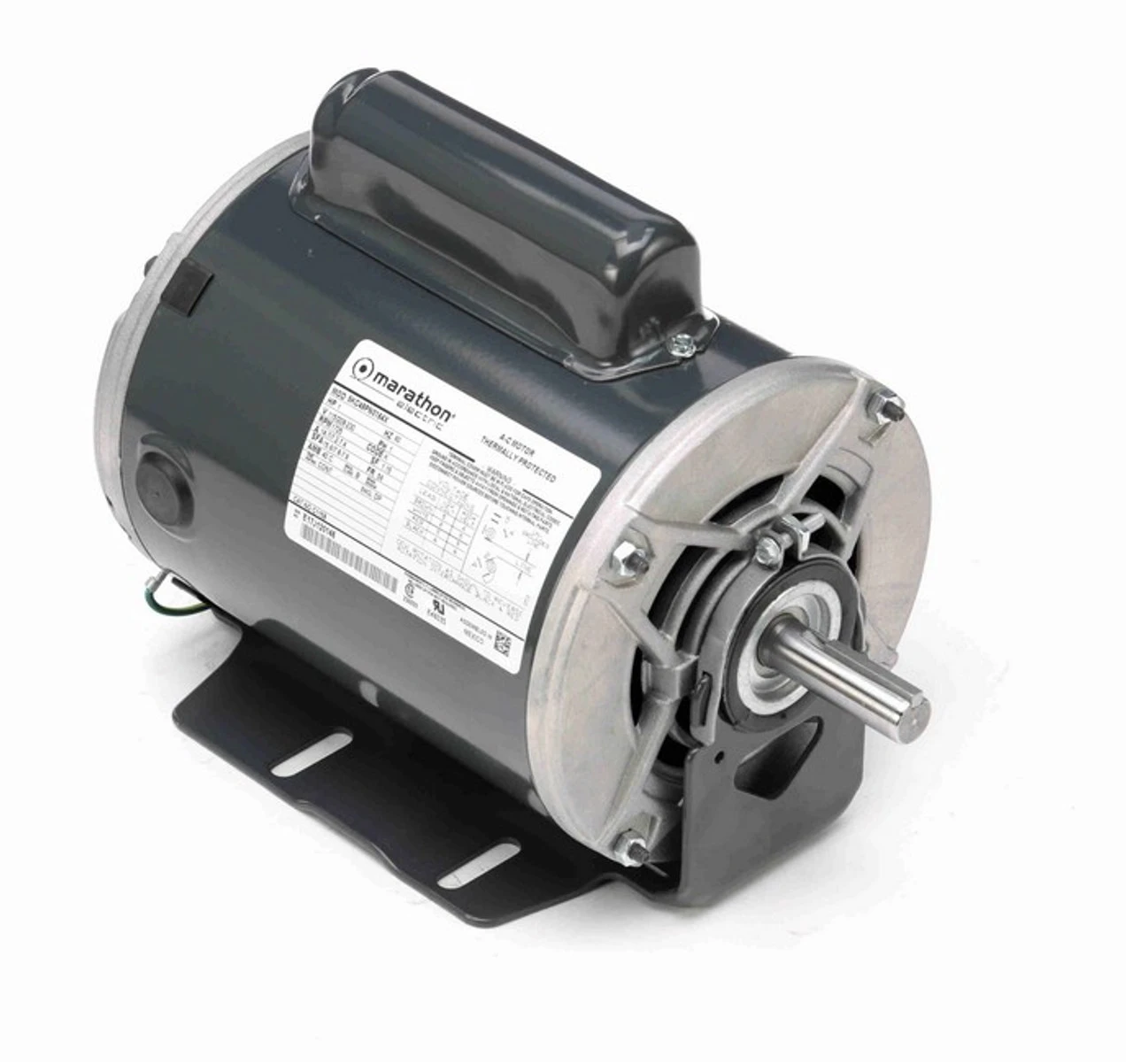

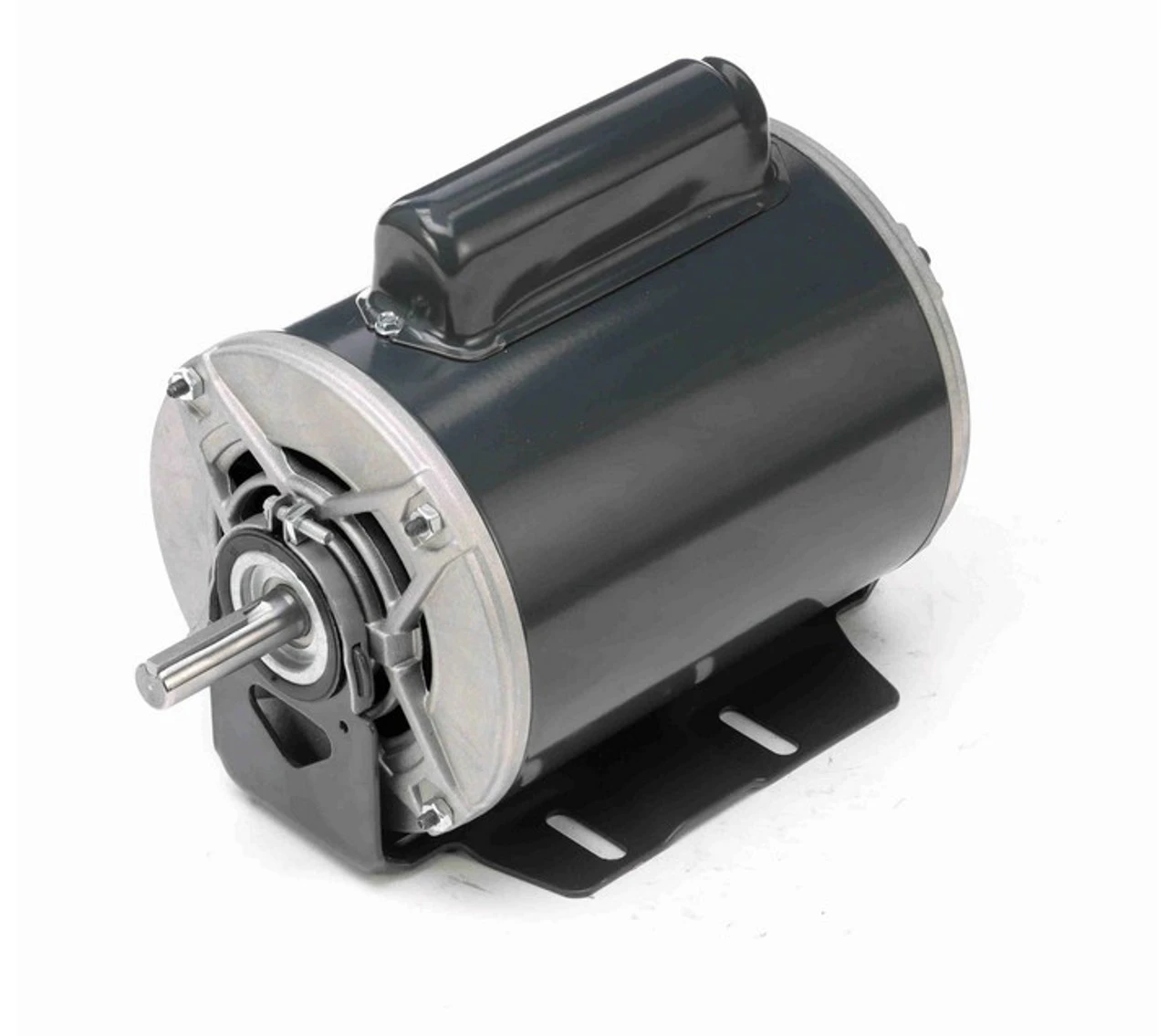

C1158 Marathon | 1 Hp 115/208-230V 1725 RPM ODP 56 Frame Cap Start Resilient Base Motor (Dayton 4YU30)

Marathon Electric Motor

• 1 hp 1725 RPM, 13.7/7.4-7.2 amps
• 115/208-230 Volts 60 Hz, Capacitor Start
• Single Speed
• NEMA 56 Frame
• Keyed Shaft 1 7/8″ x 5/8″ Diameter
• Service Factor = 1.15, Thermal Protection = Auto
• Resilient Base, Reversible, Ball Bearings, Class B insulation
• Shaft may be vertical or horizontal
• ODP = Open Drip Proof.
• 1 Year Manufacture Warranty

Direct Replacement for Dayton 4YU30 Motor
Replacement Motor for 1MBE9, 3ATT9, 3ATU7, 3GY70, 5PV07 Dayton Ventilator

Marathon Model: 5KC49PN0164X, E281
Replaces Century/AO Smith C692, C692V1, Dayton 4LY91
Replaces Leeson 110007.00
