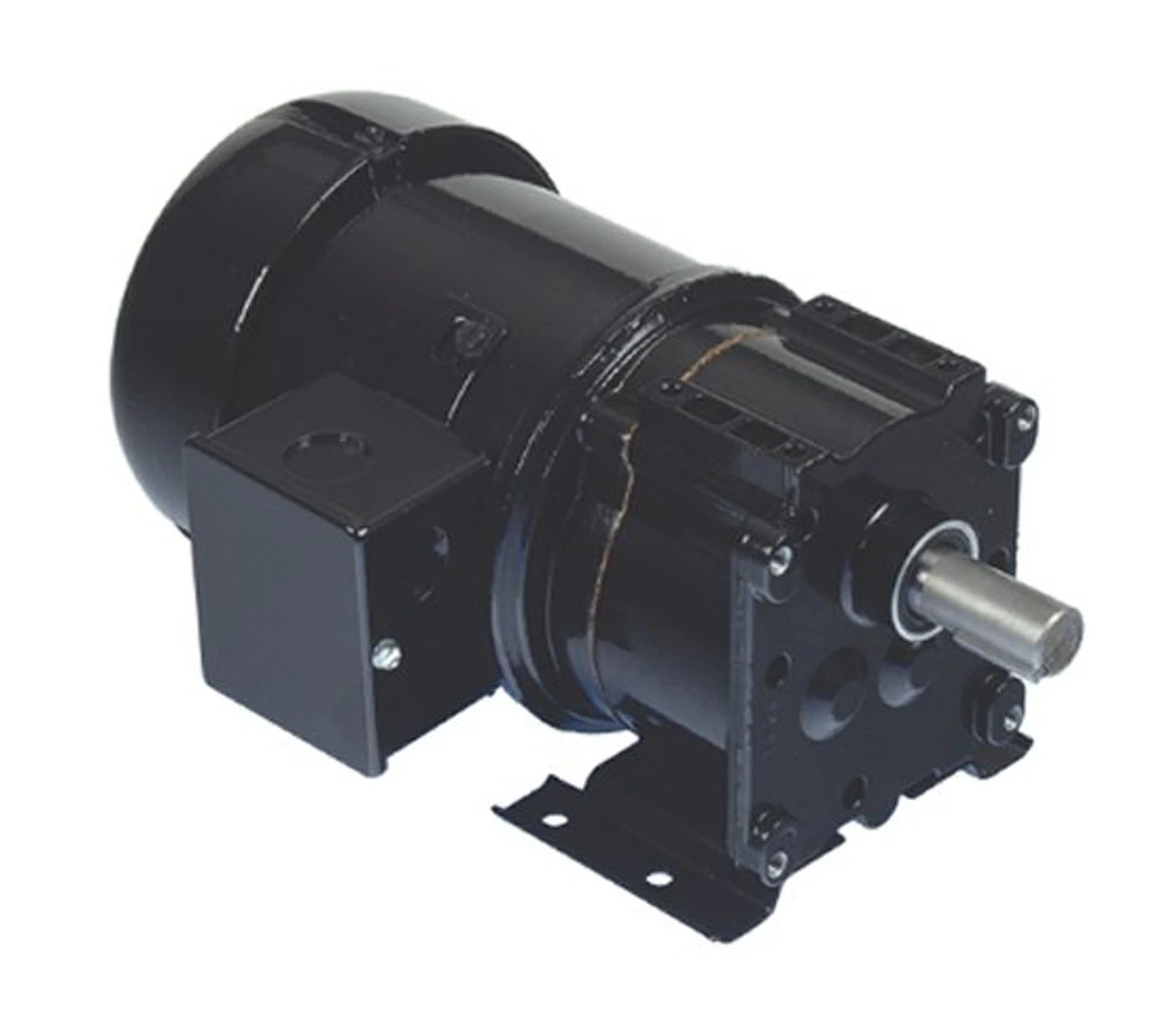

Bison 017-247-0058 Inverter Duty Gear Motor 30 RPM 1/4 Hp 230V

Bison 017-247-0058 Inverter Duty Gear Motor 30 RPM 1/4 Hp 230V - Image 2

Bison 017-247-0058 Inverter Duty Gear Motor 30 RPM 1/4 Hp 230V

Original price was: $369.00.Current price is: $96.99.

SKU: ZWXLY 1698664558 Categories: Bison Gear Motors, Electric Motors Tag: Bison Gear Motors

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

247 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
Torque 272 inch pounds; Over Hung lbs. = 273
Rotation = Reversible; Junction Box Included
1/4 hp, 30 RPM, .08 amps; 230V; 6-90 hz.; Three Phase
TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor: Meets NEMA MG 1 sct 31; Powder-coat gloss black; Motor Bearings: Double shielded ball; Thermostat: Signal type; closed. UL/CUL recognized. Gearhead Specifications: Precision machined die cast aluminum ; Lubrication: Lifetime oil bath; Hardened steel shafts; Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel, 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. Suggested replacement reference for: Dayton 4ZJ51. One Year Manufacture Warranty. Opening motor voids the warranty.
