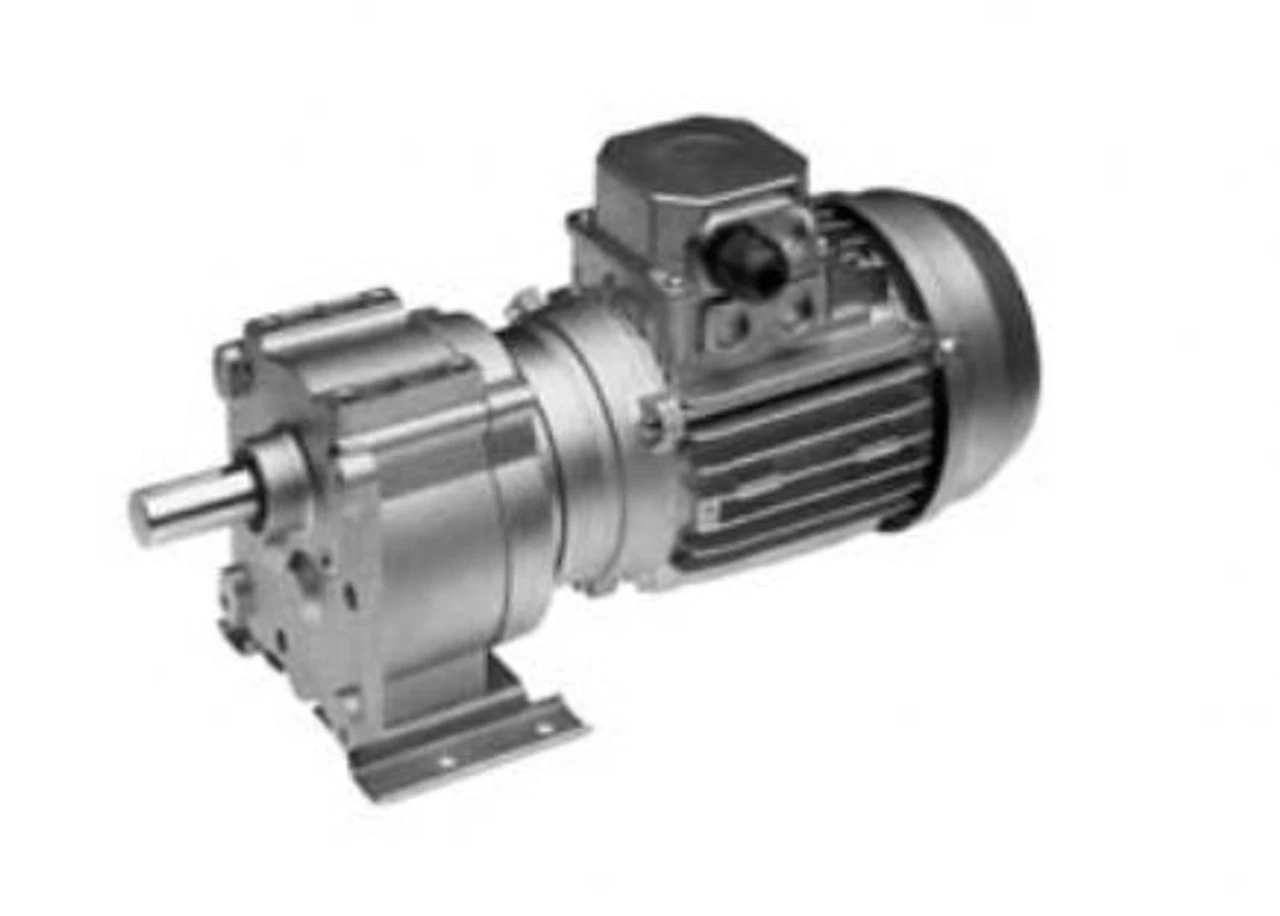

Bison 017-246-0015 Gear Motor 1/4 Hp 112 RPM 230/460V

Bison 017-246-0015 Gear Motor 1/4 Hp 112 RPM 230/460V - Image 2

Bison 017-246-0015 Gear Motor 1/4 Hp 112 RPM 230/460V

Original price was: $353.00.Current price is: $98.99.

SKU: ZWXLY 1698664496 Categories: Bison Gear Motors, Electric Motors Tag: Bison Gear Motors

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

246 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
Torque 129 inch pounds; Over Hung lbs. = 195
Rotation = Reversible; Junction Box Included
1/4 hp 112 RPM, 1.1/.74 amps; 230/460V Three Phase
TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor: Meets NEMA MG 1 sct 31; Powder-coat gloss black; Motor Bearings: Double shielded ball; Thermostat: Signal type; closed. UL/CUL recognized. Gearhead Specifications: Precision machined die cast aluminum ; Lubrication: Lifetime oil bath; Hardened steel shafts; Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel, 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. One Year Manufacture Warranty. Opening motor voids the warranty.
