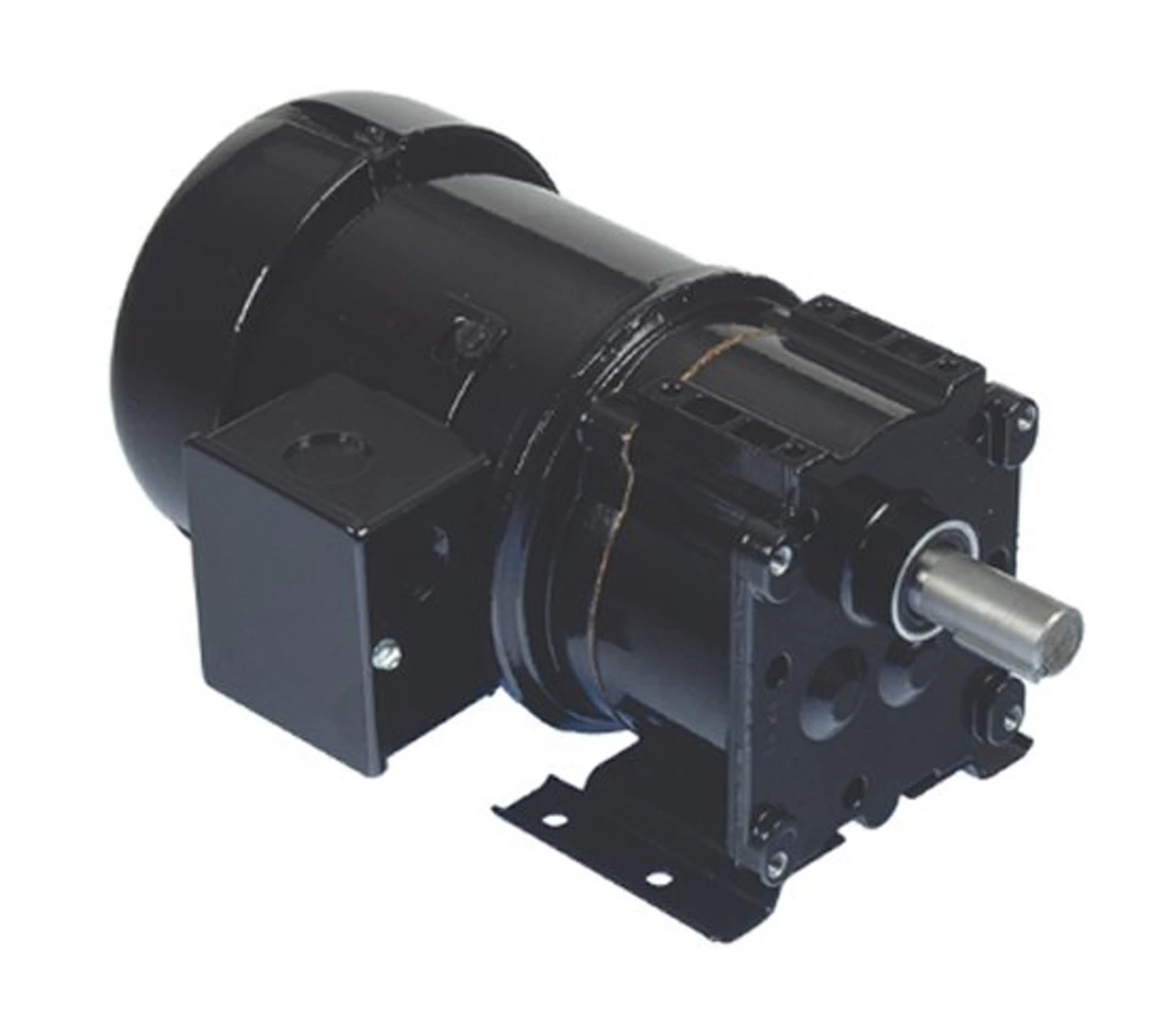

Bison 016-246-4005 Gear Motor 1/4 Hp 338 RPM 115/230V 60/50 HZ.
Original price was: $359.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 246 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 41 inch pounds; Over Hung lbs. = 170
- Rotation = Reversible
- 1/4 hp 338 RPM, 2.35/1.25 amps, 115/230 VAC
- TEFC Enclosure, Keyed Shaft, Ball Bearings
Motor Type: Permanent Split Capacitor. Gearhead Specifications: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel. 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. Baldor equivalent GCP25062. One Year Manufacture Warranty. Opening motor voids the warranty.
