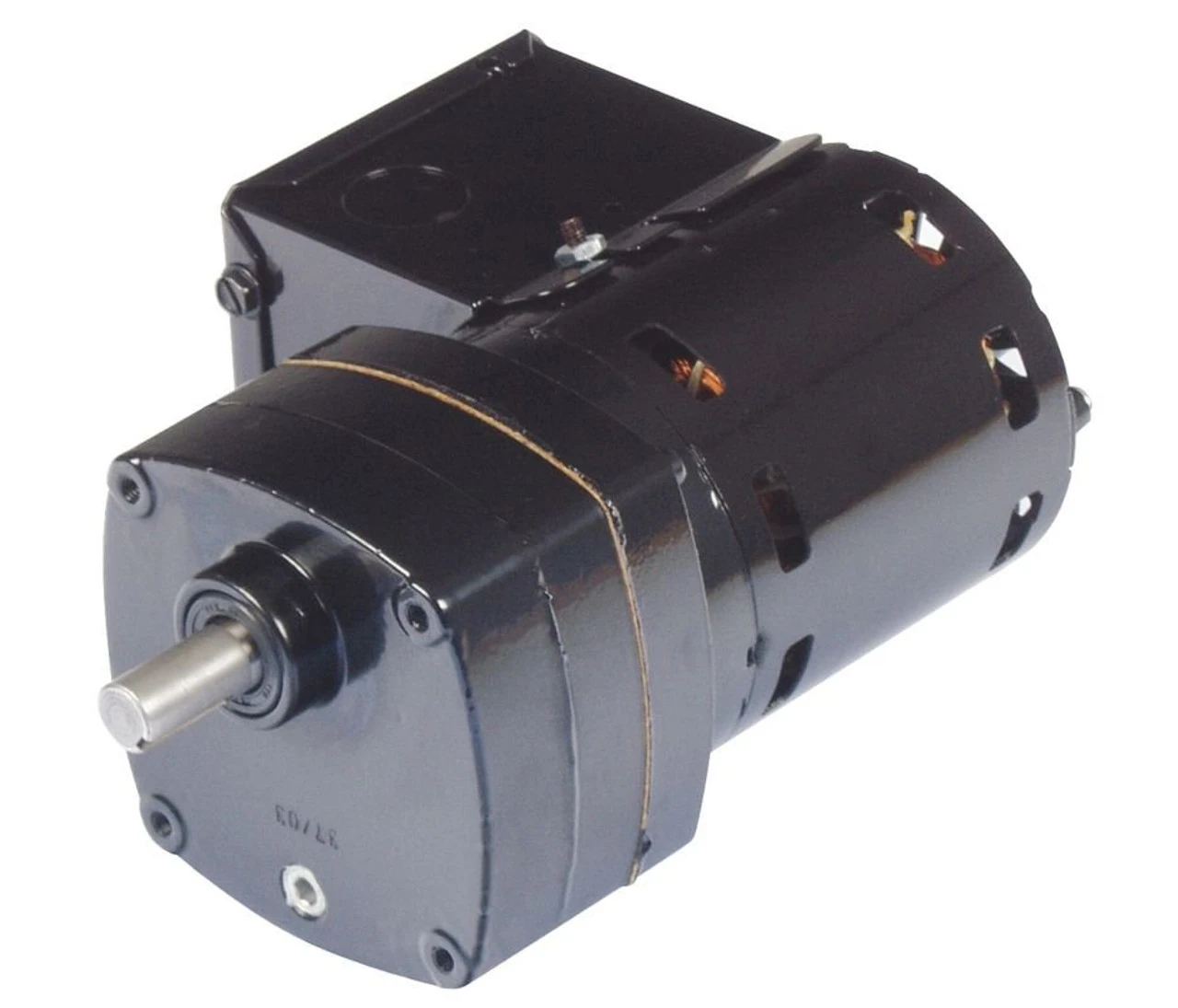

Bison 016-101-0100 Gear Motor 1/20 Hp, 17 RPM 115V 60HZ.
Original price was: $389.55.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 100 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 100 inch pounds; Over Hung lbs. = 150

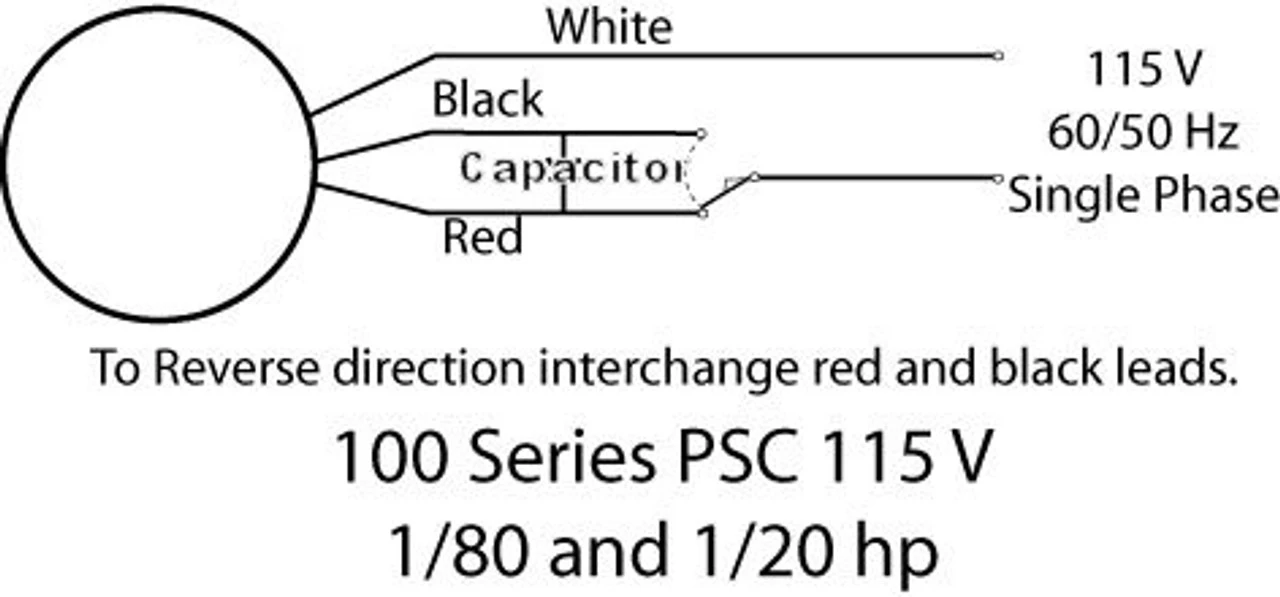

- Rotation = Reversible; Junction Box Included
- 1/20 hp, 17 RPM,.62 amps, 115 VAC
- TENV Enclosure, Keyed Shaft, Ball Bearings

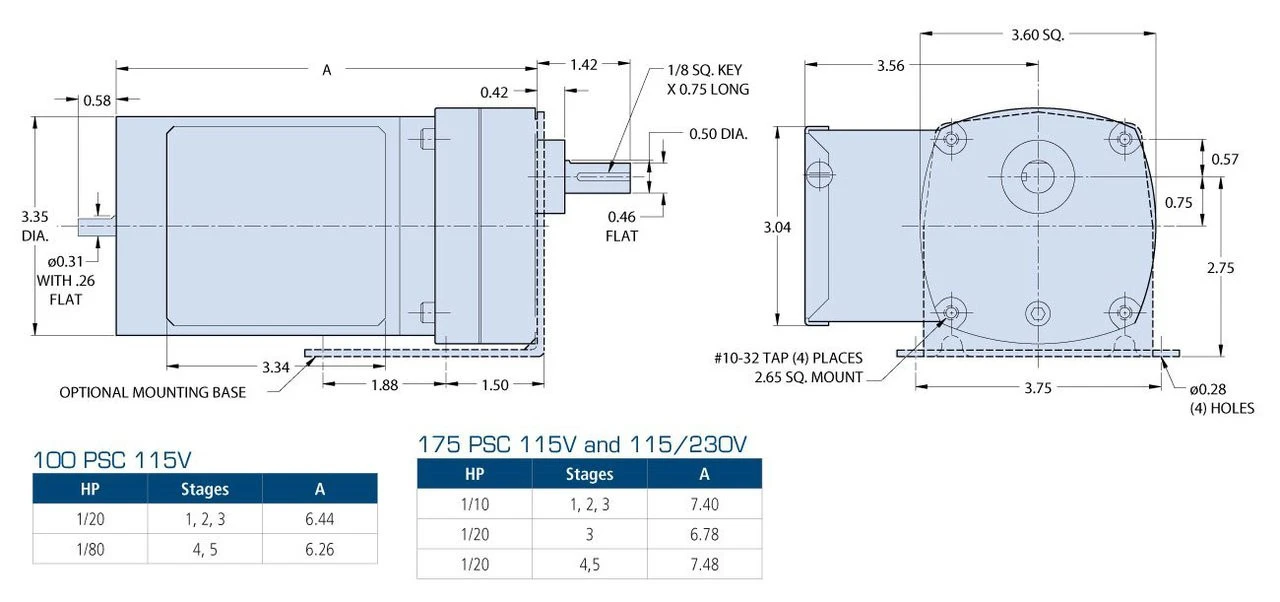

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty. Dayton equivilient 6Z081, Baldor equivilent GCP24122.
