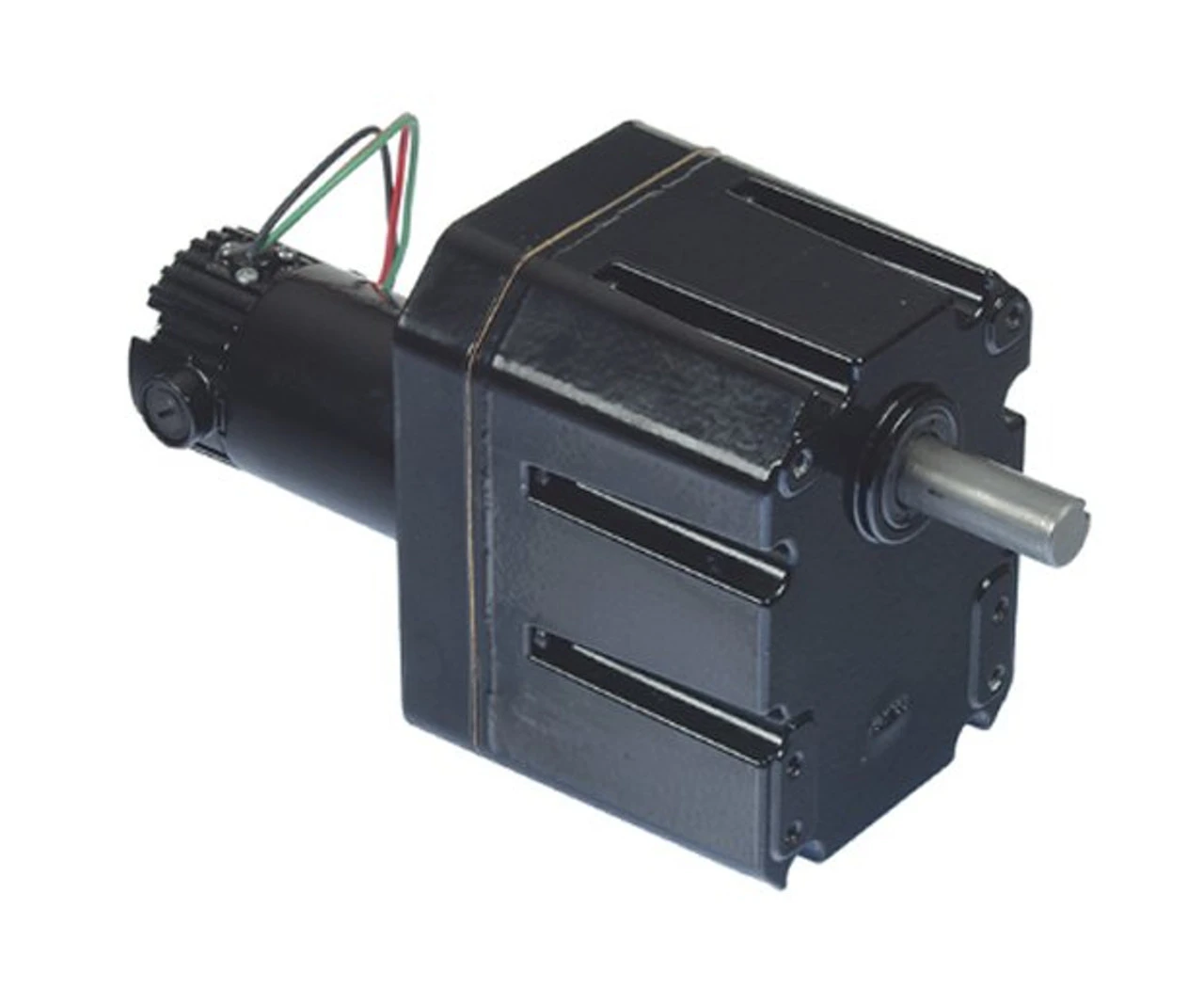

Bison 011-656-1412 Gear Motor 1/20 Hp 1.3 RPM 90VDC
Original price was: $320.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 650 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 710 inch pounds; Over Hung lbs. = 900; 5 Stages
- Rotation = Reversible
- 1/20 hp 1.3 RPM, .31 amps, 90 Volts DC
- TENV Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-100-9111 Junction Box. Base mounting bracket P125-650-5000. Permanent Magnet motor, Insulation Class F; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 2H594. Can use with Leeson speed control 174307, 174308.
