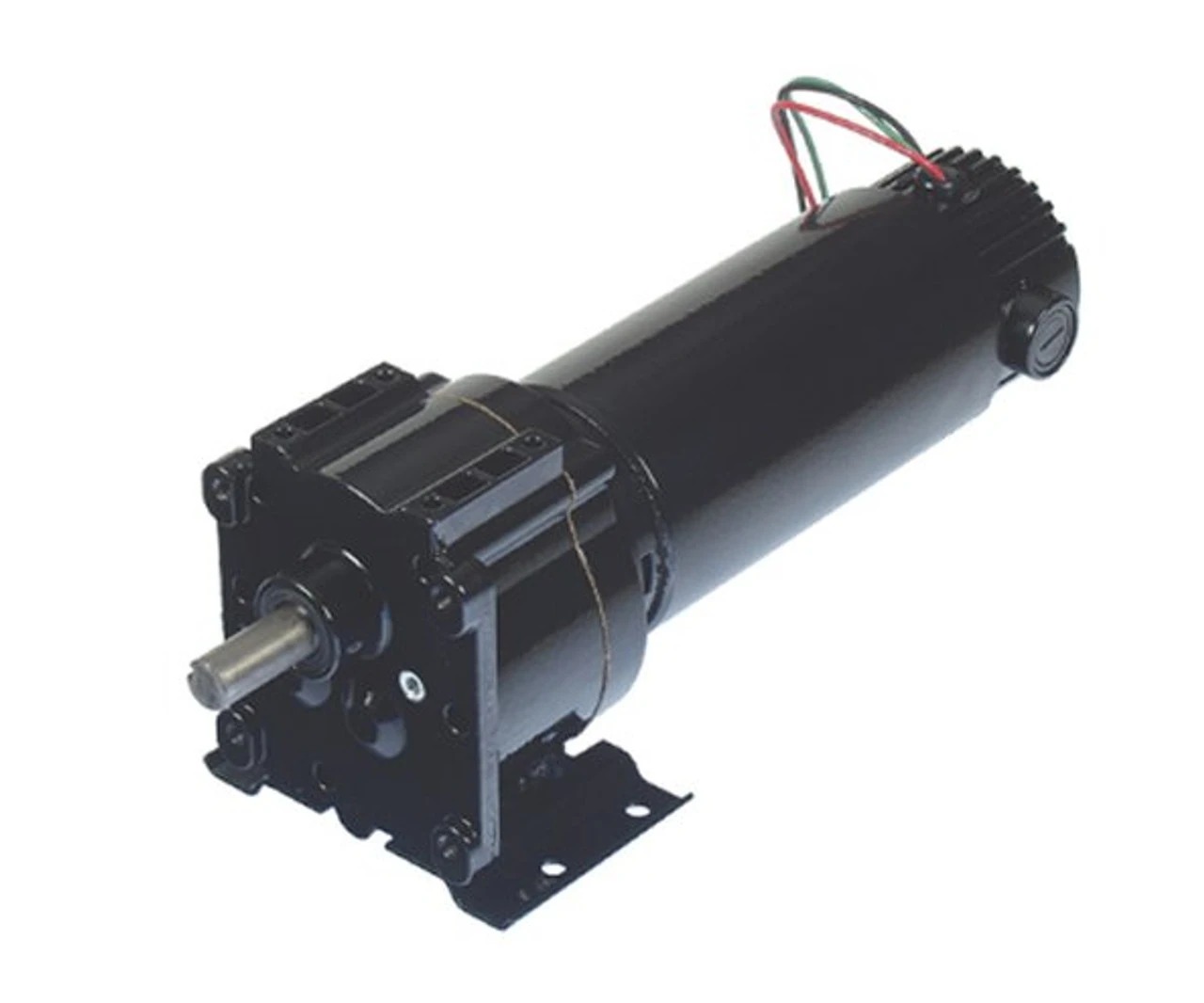

Bison 011-348-5015 Gear Motor 1/8 Hp 121 RPM 24VDC
Original price was: $384.00.$99.99Current price is: $99.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 348 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 59 inch pounds
- Over Hung lbs. = 250
- 2 Stage
- Rotation = Reversible
- Rear tapped hole in shaft for encoder mount.
- 1/8 hp 121 RPM, 5.18 amps, 24 Volts DC
- TENV Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-100-9121 Junction Box. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 4ZJ48. Can use with Leeson speed control 175290.
