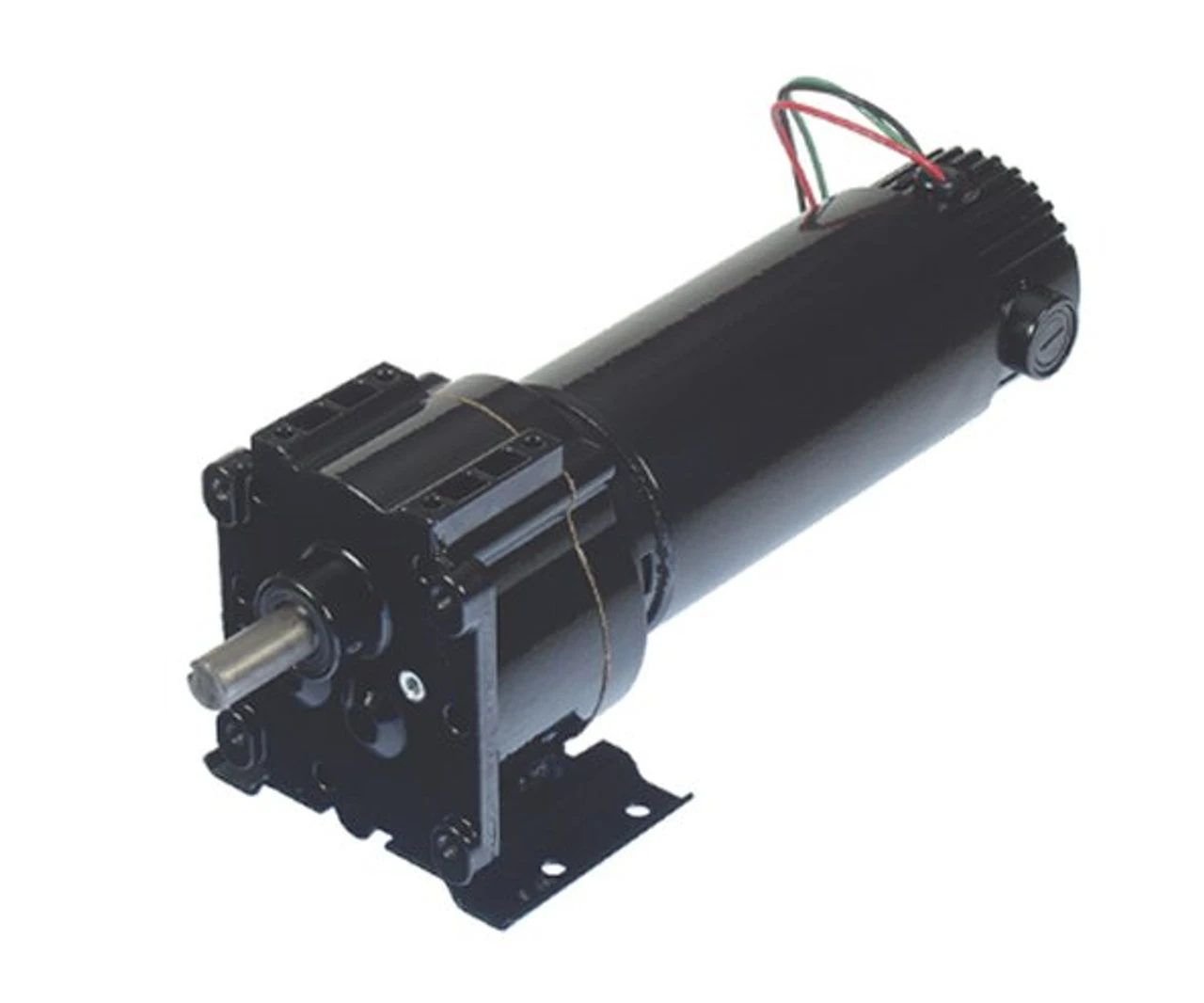

Bison 011-336-4011 Gear Motor 1/4 Hp 170 RPM 90/130VDC
Original price was: $302.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 336 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 90 inch pounds
- Over Hung lbs. = 206
- 2 Stage
- Rotation = Reversible
- 1/4 hp 170 RPM, 2.51 amps, 90 Volts DC
- TENV Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-300-0000 Junction Box. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 2H573. Can use with Leeson speed control 174307, 174308. Bison Speed Control Model 170-113-003
