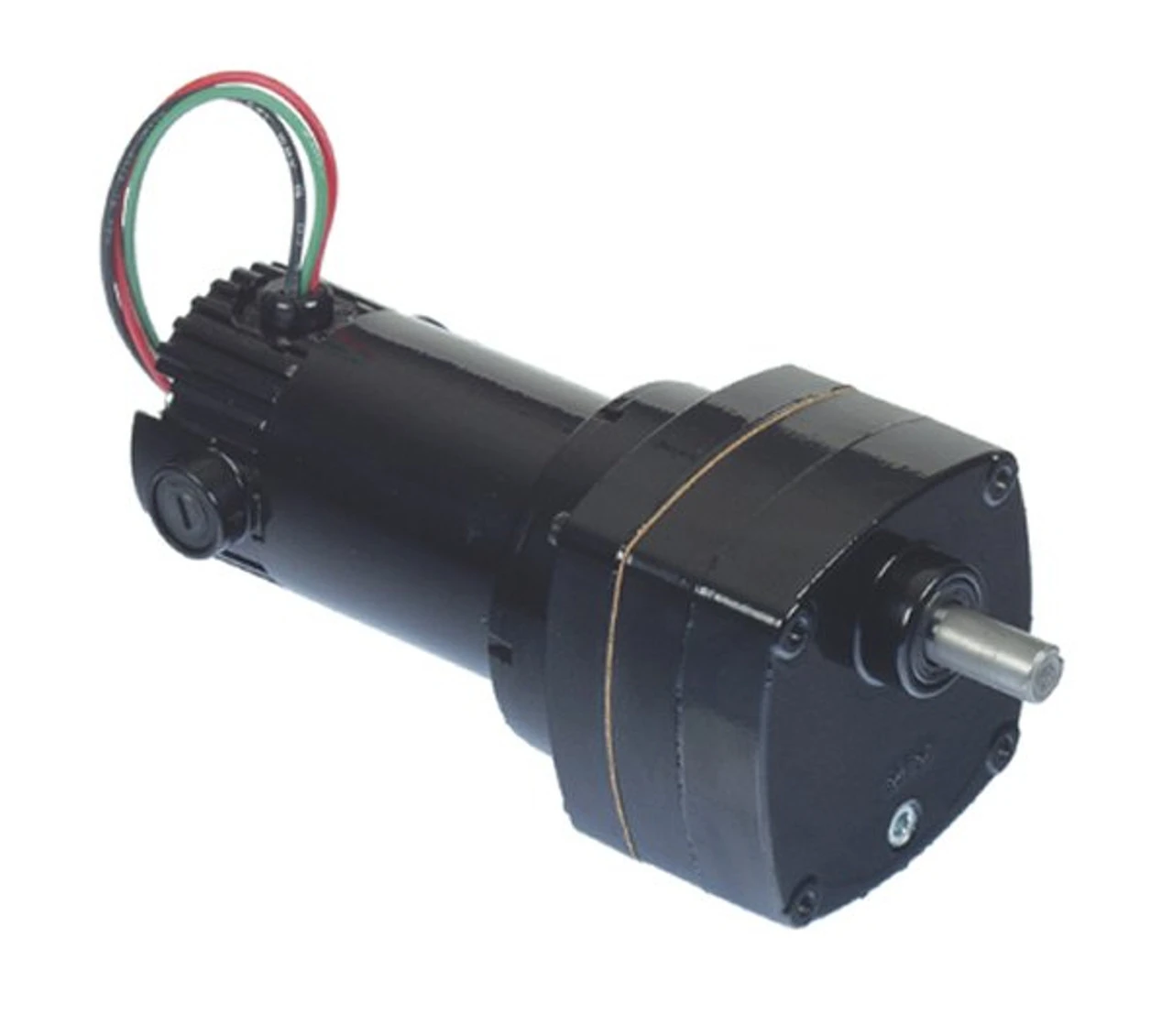

Bison 011-190-4025 Gear Motor 1/20 Hp, 71 RPM 24VDC
Original price was: $310.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 100 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 40 inch pounds
- Over Hung lbs. = 230
- Rotation = Reversible
- 1/20 hp, 71 RPM, 2.4 amps, 24 Volts DC
- TENV Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-100-9111 Junction Box, P125-100-9998 Mounting Plate. Replacement Brush Set # P158-200-2615. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Can use with Leeson speed control 175290.
