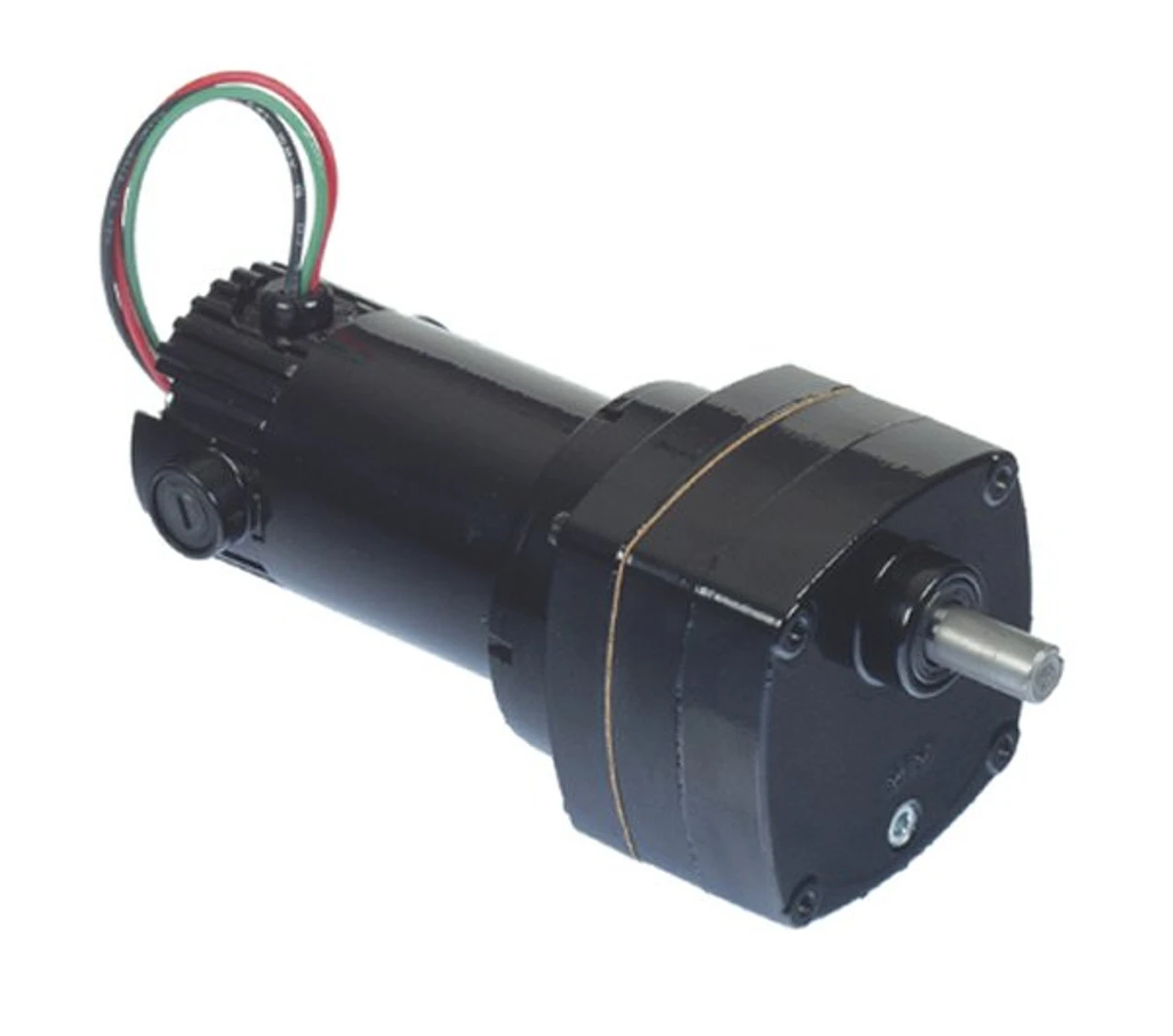

Bison 011-190-0025 Gear Motor 1/20 Hp 71 RPM 90/130VDC
Original price was: $314.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 100 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 40 inch pounds
- Over Hung lbs. = 230
- Rotation = Reversible
- 1/20 hp 71 RPM, .62 amps, 90 Volts DC
- TENV Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-100-9111 Junction Box, P125-100-9998 Mounting Plate. Replacement Brush Set # P158-200-2600. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 6Z915, Baldor GPP233111. Can use with Leeson speed control 174307, 174308.
