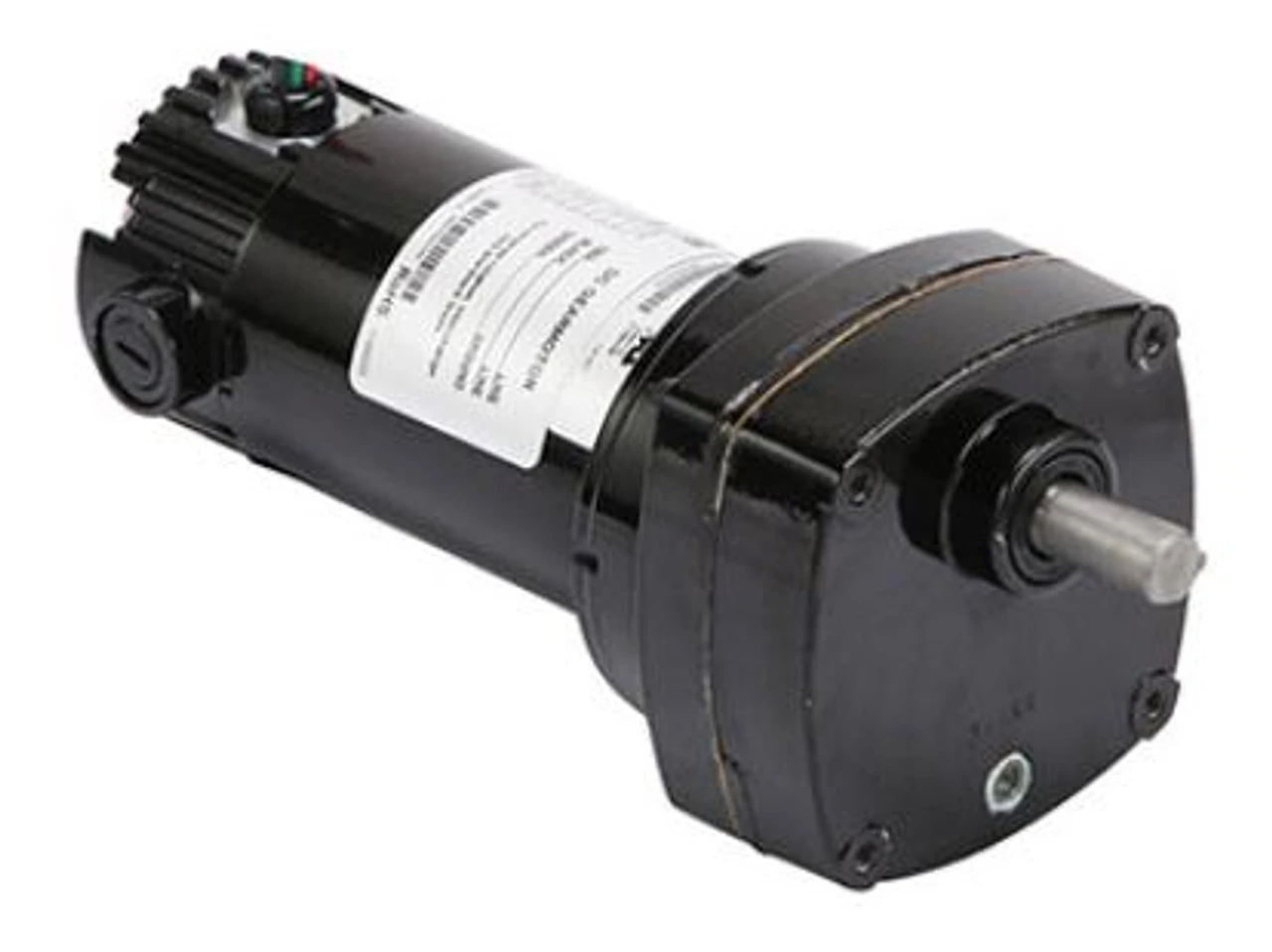

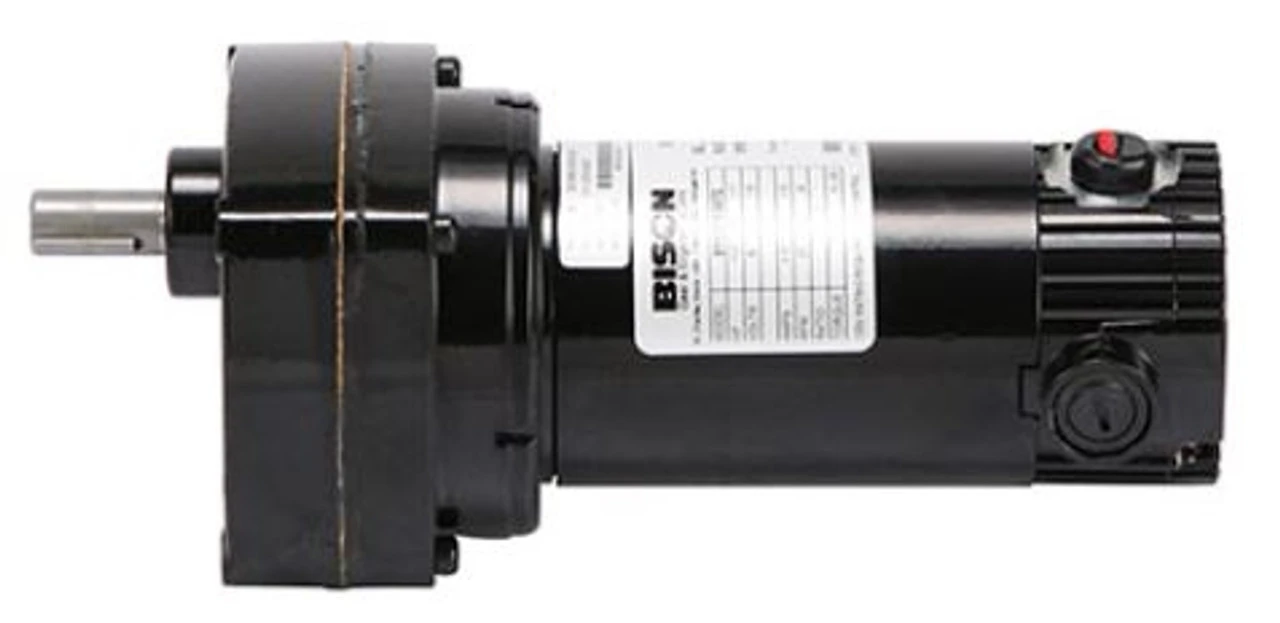

Bison 011-175-0072 Gear Motor – 1/20 Hp 25 RPM 90/130VDC

Bison Model 011-175-0072
175 Series DC Parallel Shaft Gear Motor

• 1/20 hp .62 amps – 90 Volts DC
• 25 RPM rated on 90 Volts DC
• 36 RPM rated on 130 Volts DC
• Torque 111 inch pounds
• Shaft 1/2″ Diameter
• Over Hung lbs. = 150
• Rotation = Reversible
• TENV Enclosure
• Ball Bearings
• Permanent Magnet motor
• Hardened Steel worm. Forged bronze gear
• Lubrication: Lifetime oil bath, sealed and gasketed
• Any angle mount

Optional Accessories:
P198-100-9111 Junction Box
P125-100-9998 Mounting Plate
Can use with Leeson speed control 174307, 174308

Suggested replacement reference for:
Baldor GPP233112
