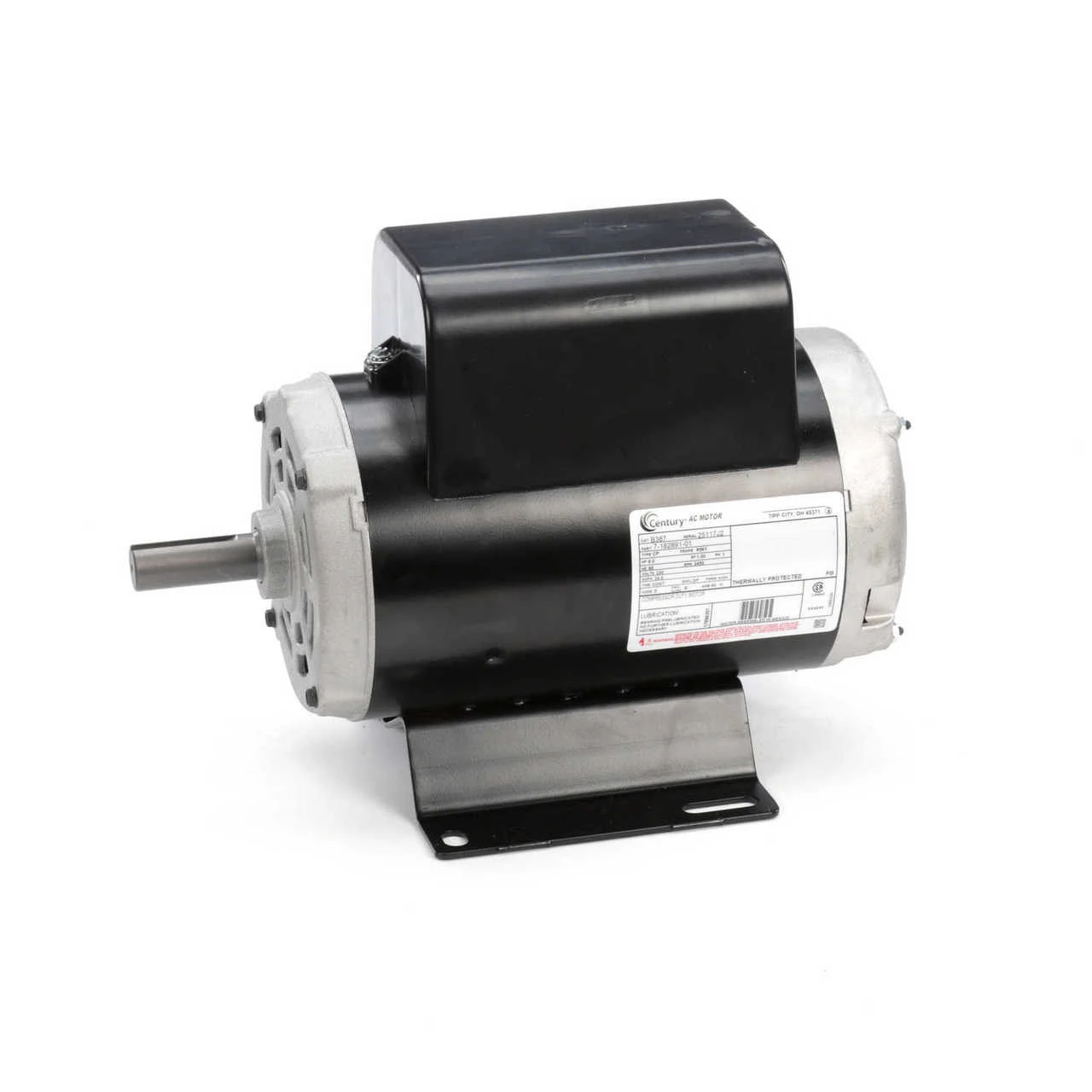

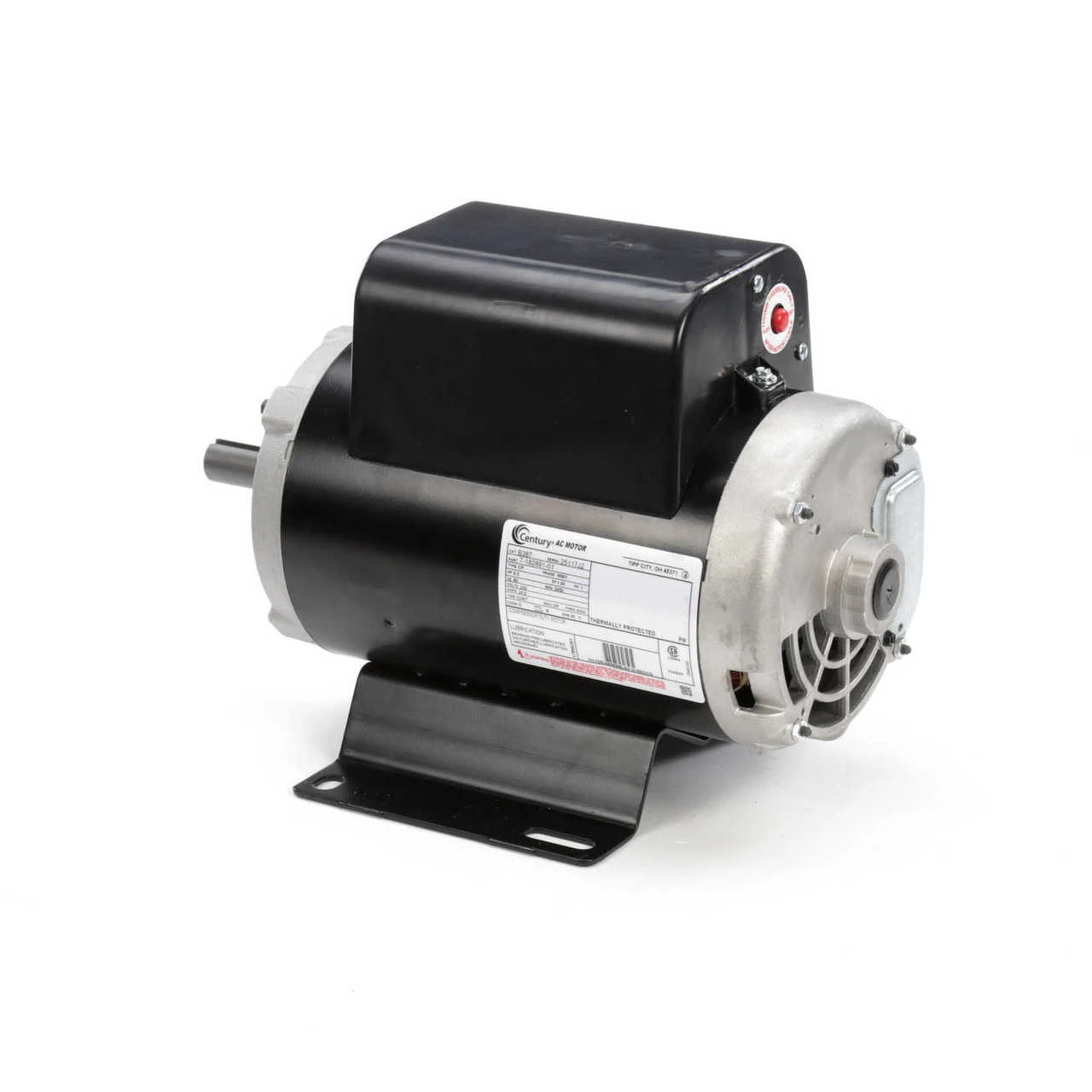

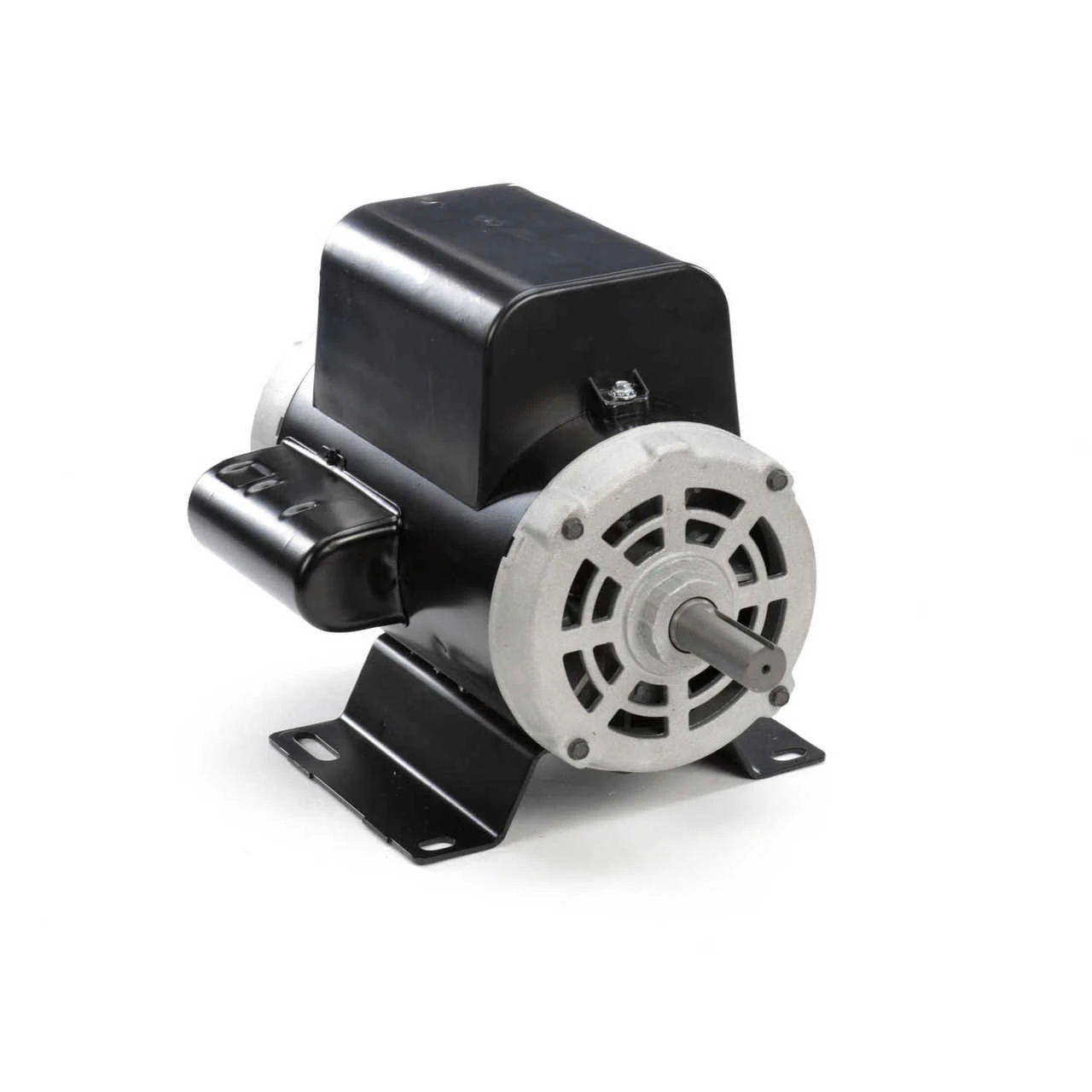

B387 Century 6 HP 3450 RPM R56Y Frame 230V Air Compressor Motor – Century # B387

CENTURY AIR COMPRESSOR – 6 SPL HP – R56Y Frame – REPLACEMENT MOTOR

• 6 HP 3450 RPM, 24.0 amps
• 230 Volts, Single Phase Power, 60HZ
• Capacitor Start/Capacitor Run
• Open Drip Proof – Ball Bearings – Service Factor 1.0
• Non-Reversible – CCW Rotation facing the shaft
• Manual Overload Protection

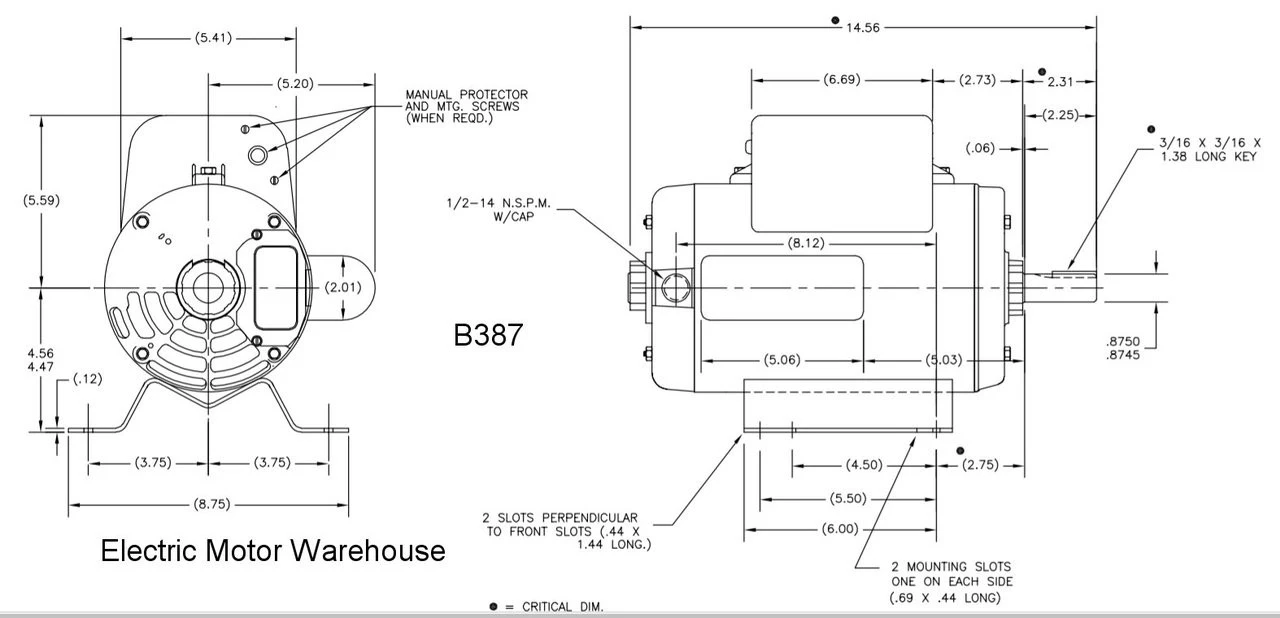

R56Y Frame size – double check your shaft height and shaft size to make sure this is the correct sizing.

• Flat Rigid Base Mount – Bolt Pattern: 4.5″-5.5″ lengths ways down the motor side, 7.5″ across the front
• Shaft: 7/8″ Diameter x 2-1/4″
• Shaft Height 4.5″

Motor is designed to be used with a belt driven compressor. Not to be used where the mount is a pivot type mount. 56Y frame is a non standard shaft.
Motor connection diagram is on motor name plate.
High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
Heavy-duty construction ensures motor durability.

Century Part No. 7-182891-01, 182891
Dayton 48Y637
