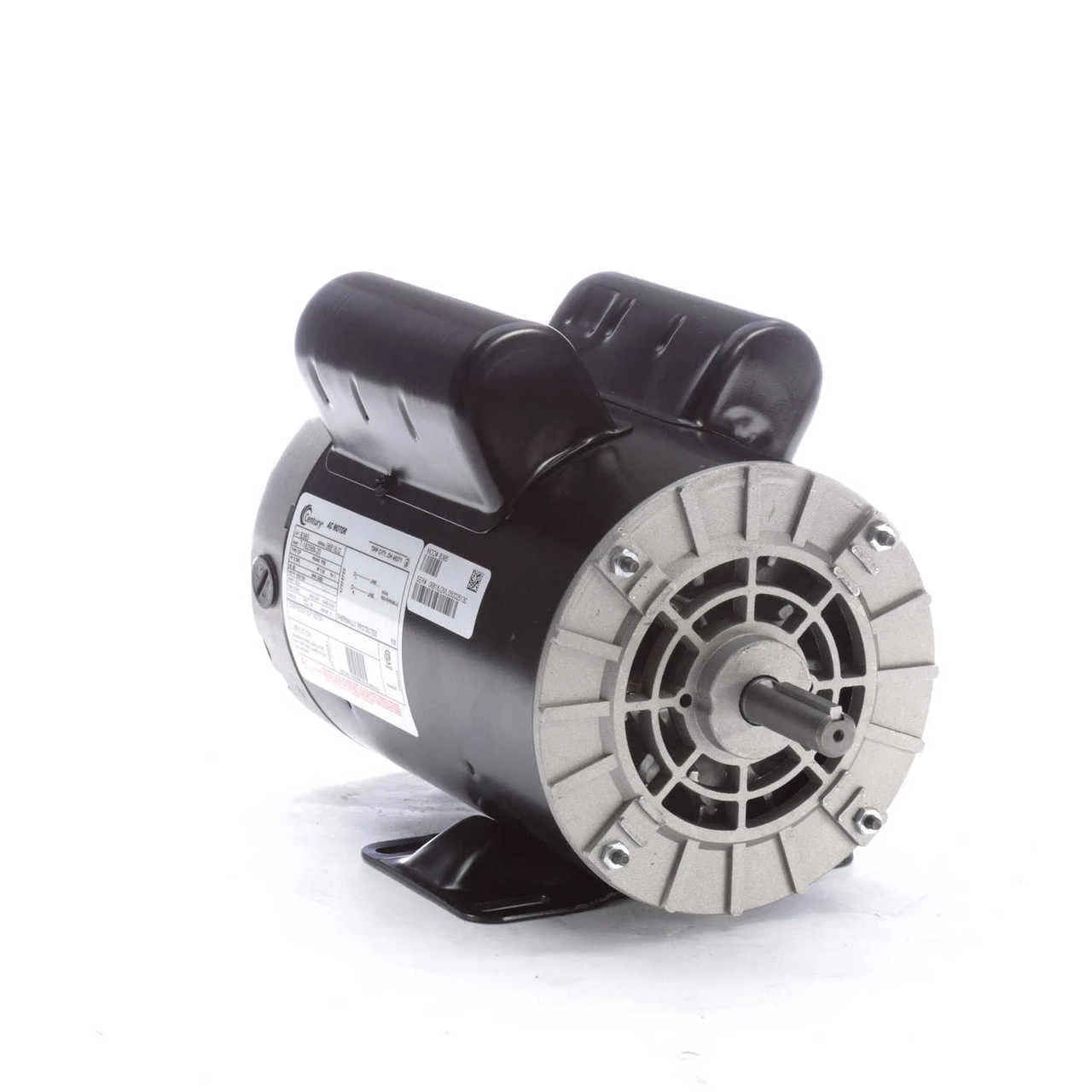

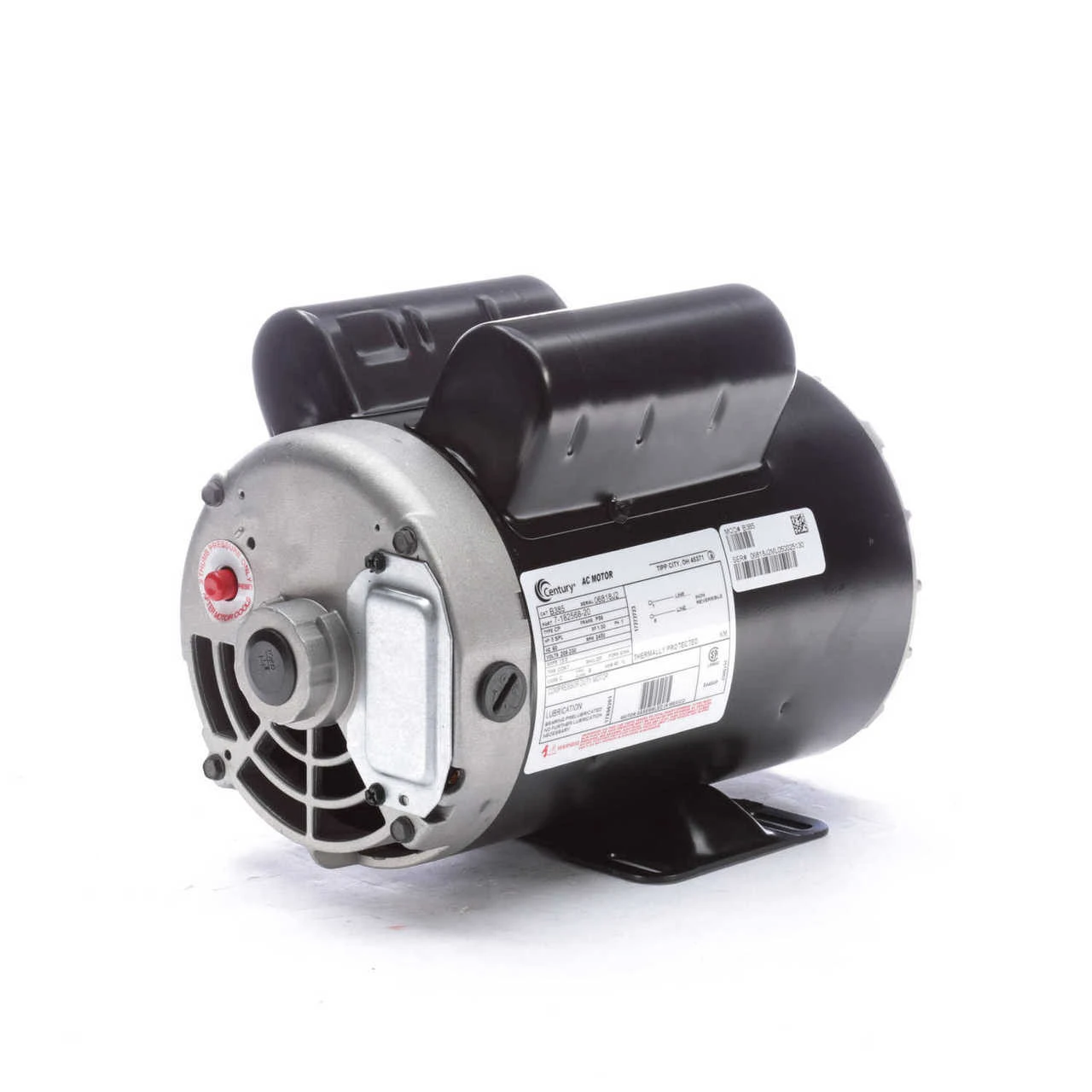

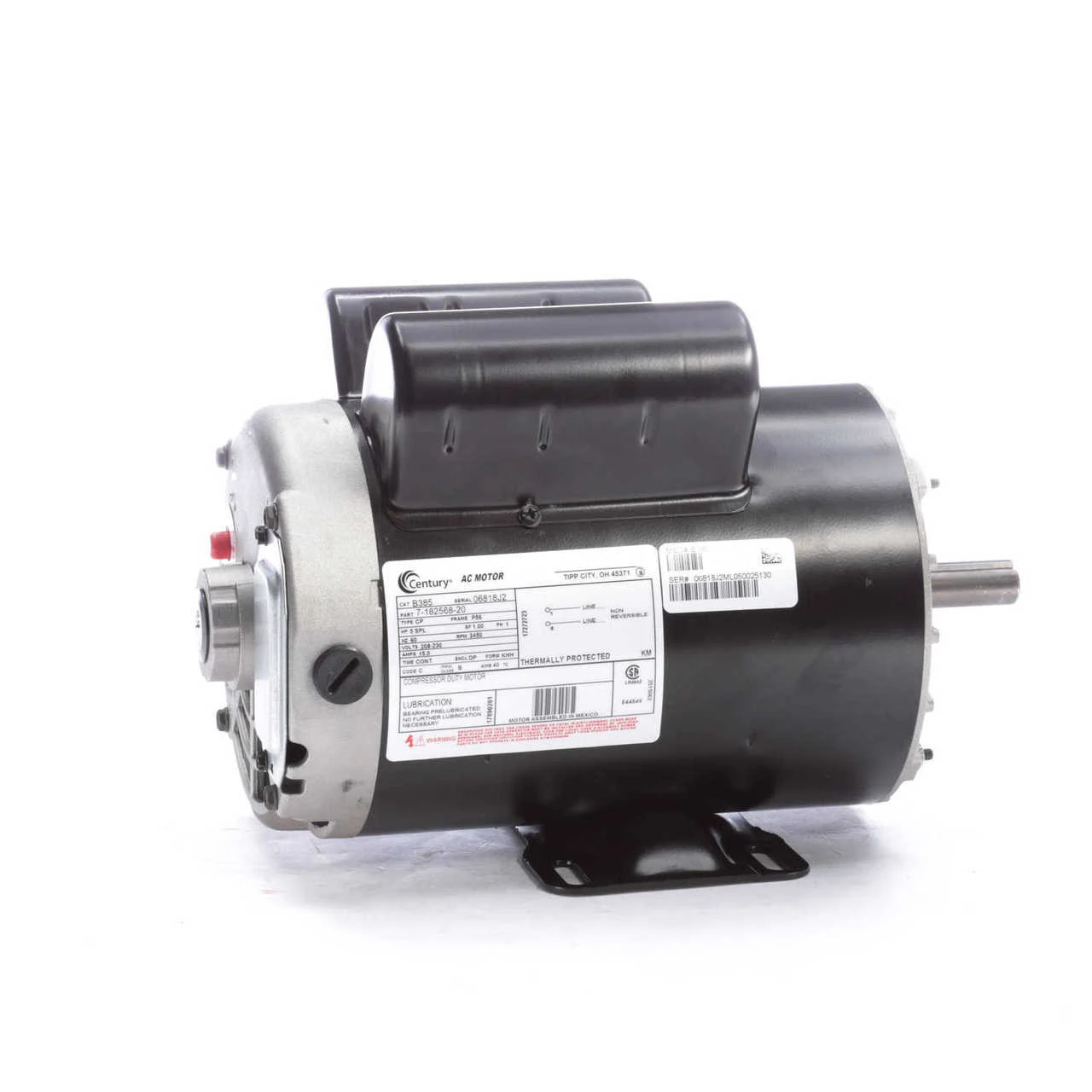

B385 Century 5 HP SPL 3450 RPM P56 Frame 230V Air Compressor Motor - Century # B385

B385 Century 5 HP SPL 3450 RPM P56 Frame 230V Air Compressor Motor - Century # B385 - Image 2

B385 Century 5 HP SPL 3450 RPM P56 Frame 230V Air Compressor Motor - Century # B385 - Image 3

B385 Century 5 HP SPL 3450 RPM P56 Frame 230V Air Compressor Motor - Century # B385 - Image 4

B385 Century 5 HP SPL 3450 RPM P56 Frame 230V Air Compressor Motor – Century # B385

Original price was: $387.40.Current price is: $96.99.

SKU: ZWXLY 1698662455 Categories: Air Compressor Motors, Electric Motors Tag: Century Electric Motor

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

CENTURY AIR COMPRESSOR 5 SPL HP REPLACEMENT MOTOR

5 HP SPL 3450 RPM, 15.0 amps 230V 60hz
Open Drip Proof – Ball Bearings – Service Factor 1.0
Non-Reversible – CCW Rotation facing the shaft

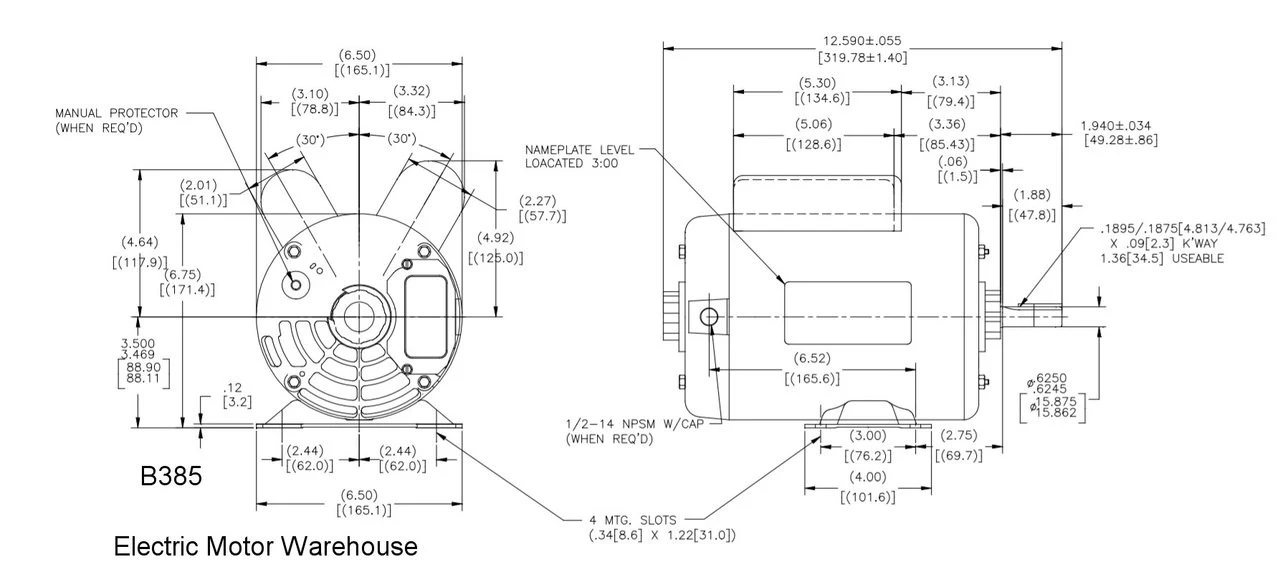

P56 Frame; NEMA 56 Frame – Flat Rigid base mount
Shaft: 5/8″ diameter x 1-7/8″ length
Overall motor length 12.59″

This replacement compressor motor is commonly used on the small “home/shop” air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3″ x 5″ bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.

Century Part No. 7-182568-20, 182568
Dayton 48Y360
