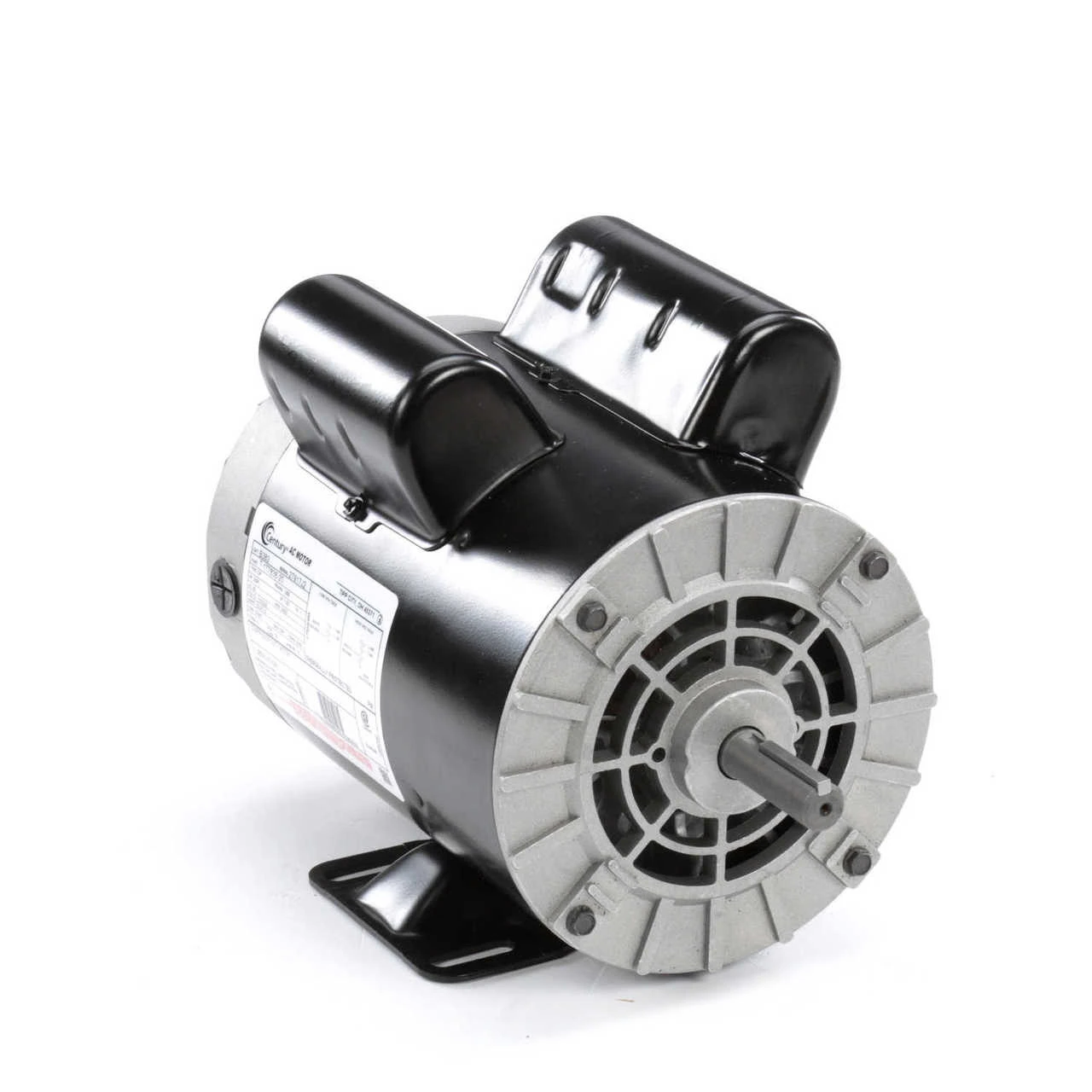

B383 Century 3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor - Century # B383

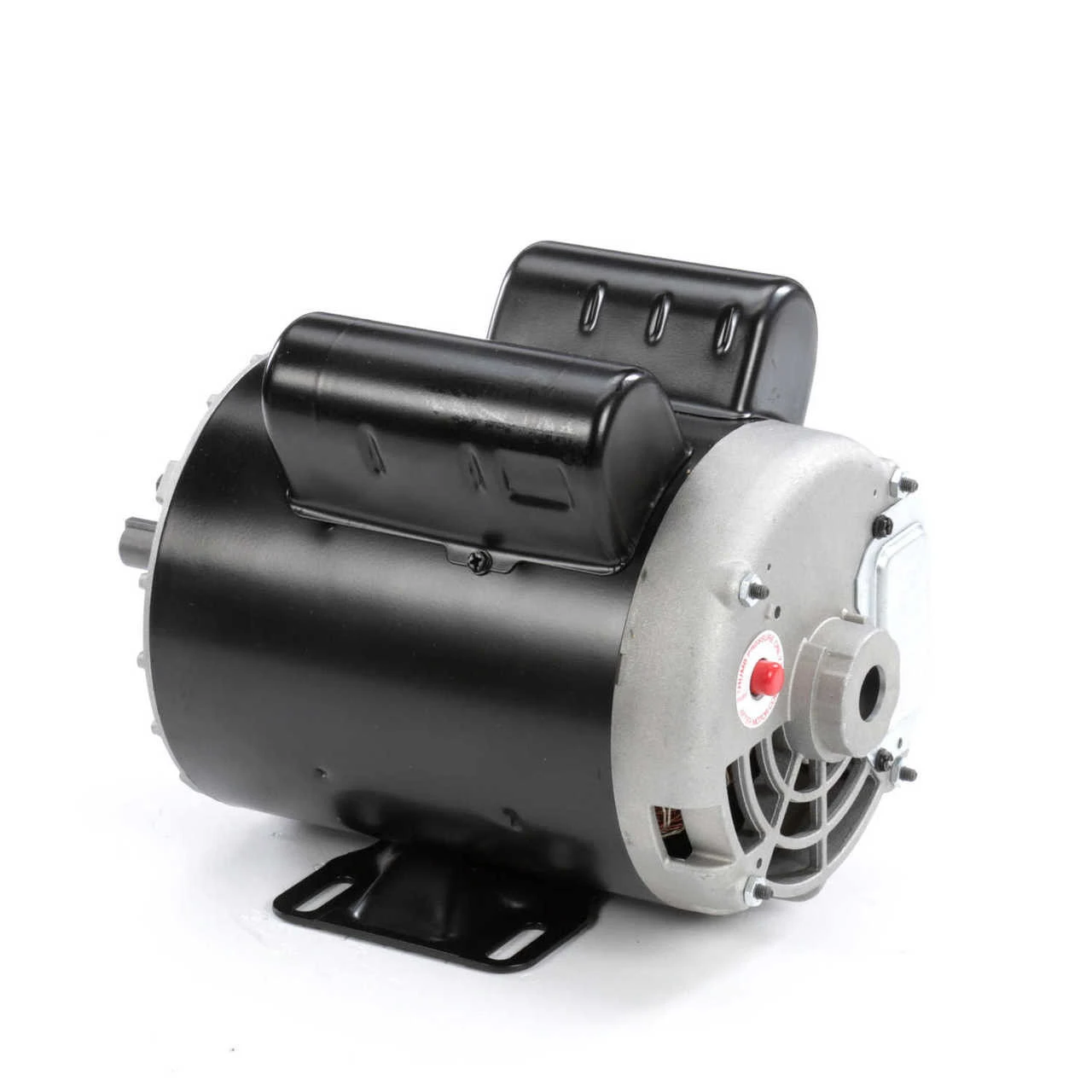

B383 Century 3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor - Century # B383 - Image 2

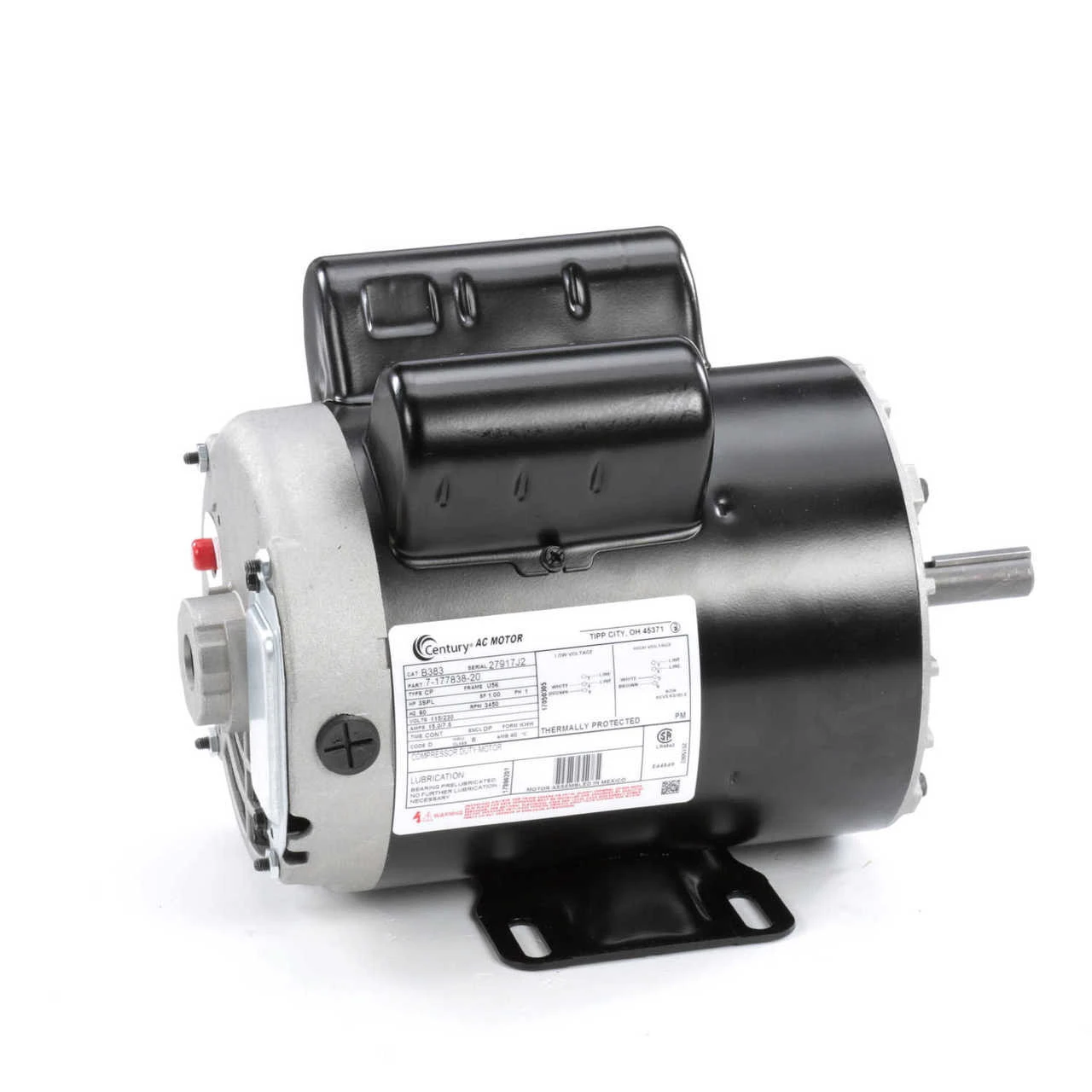

B383 Century 3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor - Century # B383 - Image 3

B383 Century 3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor - Century # B383 - Image 4

B383 Century 3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor - Century # B383 - Image 5

B383 Century 3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor – Century # B383

Original price was: $373.70.Current price is: $95.99.

SKU: ZWXLY 1698662472 Categories: Air Compressor Motors, Electric Motors Tag: Century Electric Motor

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

CENTURY AIR COMPRESSOR 3 SPL HP REPLACEMENT MOTOR

3 HP SPL 3450 RPM, 15.0/7.5 amps, 115/230V 60hz.
Open Drip Proof – Ball Bearings – Service Factor 1.0
Non-Reversible – CCW Rotation facing the shaft

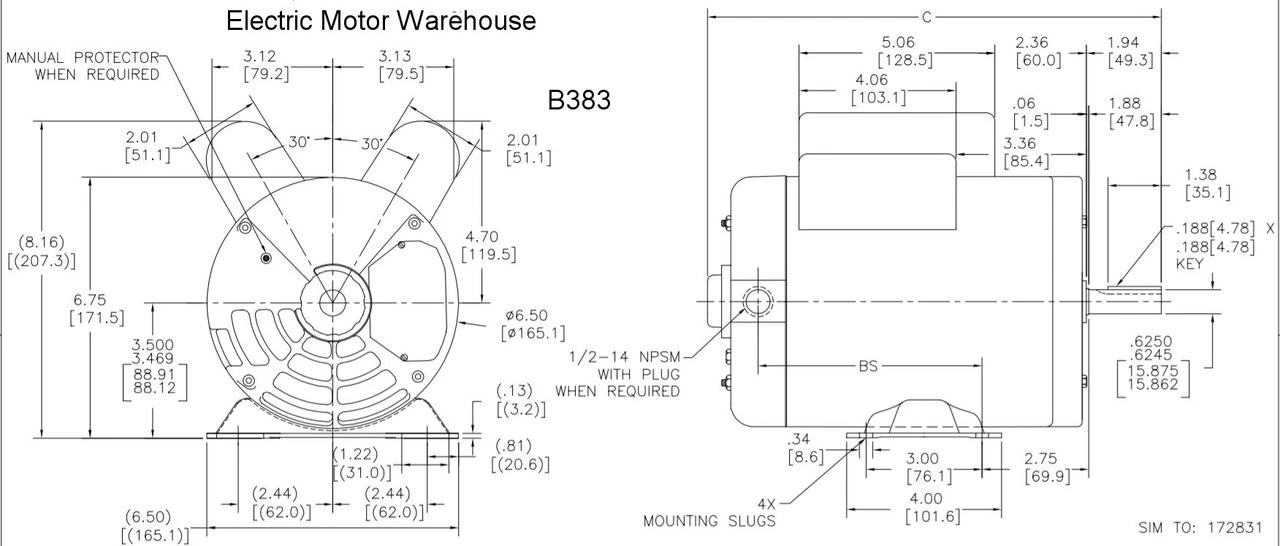

U56 Frame; NEMA 56 Frame – Flat Rigid base mount
Shaft: 5/8″ diameter x 1 7/8″
Overall motor length 11.59″

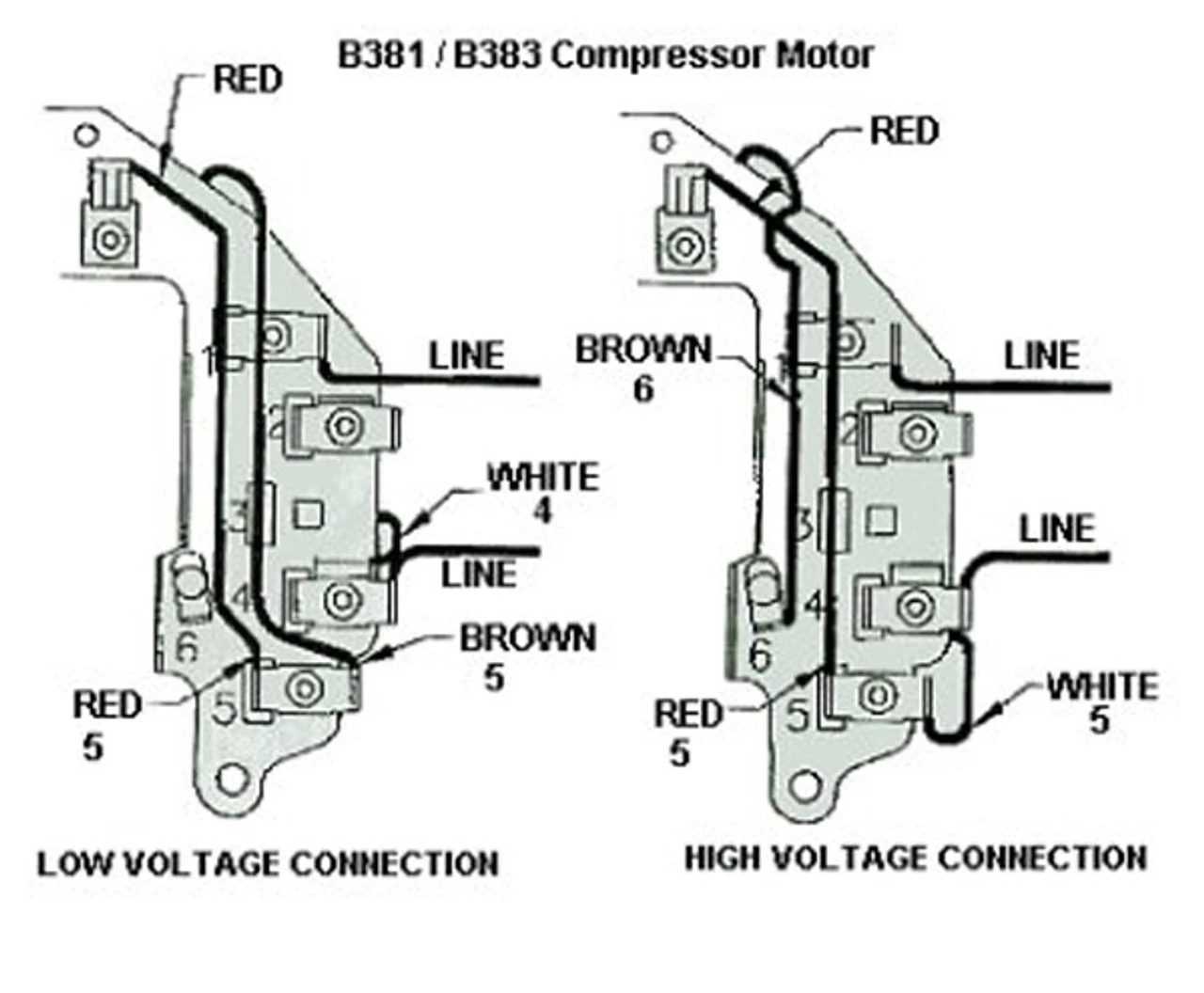

This replacement compressor motor is commonly used on the small “home/shop” air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3″ x 5″ bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.

Century Part No. 7-177838-20, 177838
Dayton 48Y359
