B15T2BC Nidec 15 Hp 1800 RPM 254TC (Rigid Base) 230/460V TEBC Vector-Duty 3-Phase Motor
Original price was: $310.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 15 hp 1800 RPM, 27.1/13.5 amps 230/460 Volts 60 Hz Three Phase Motor

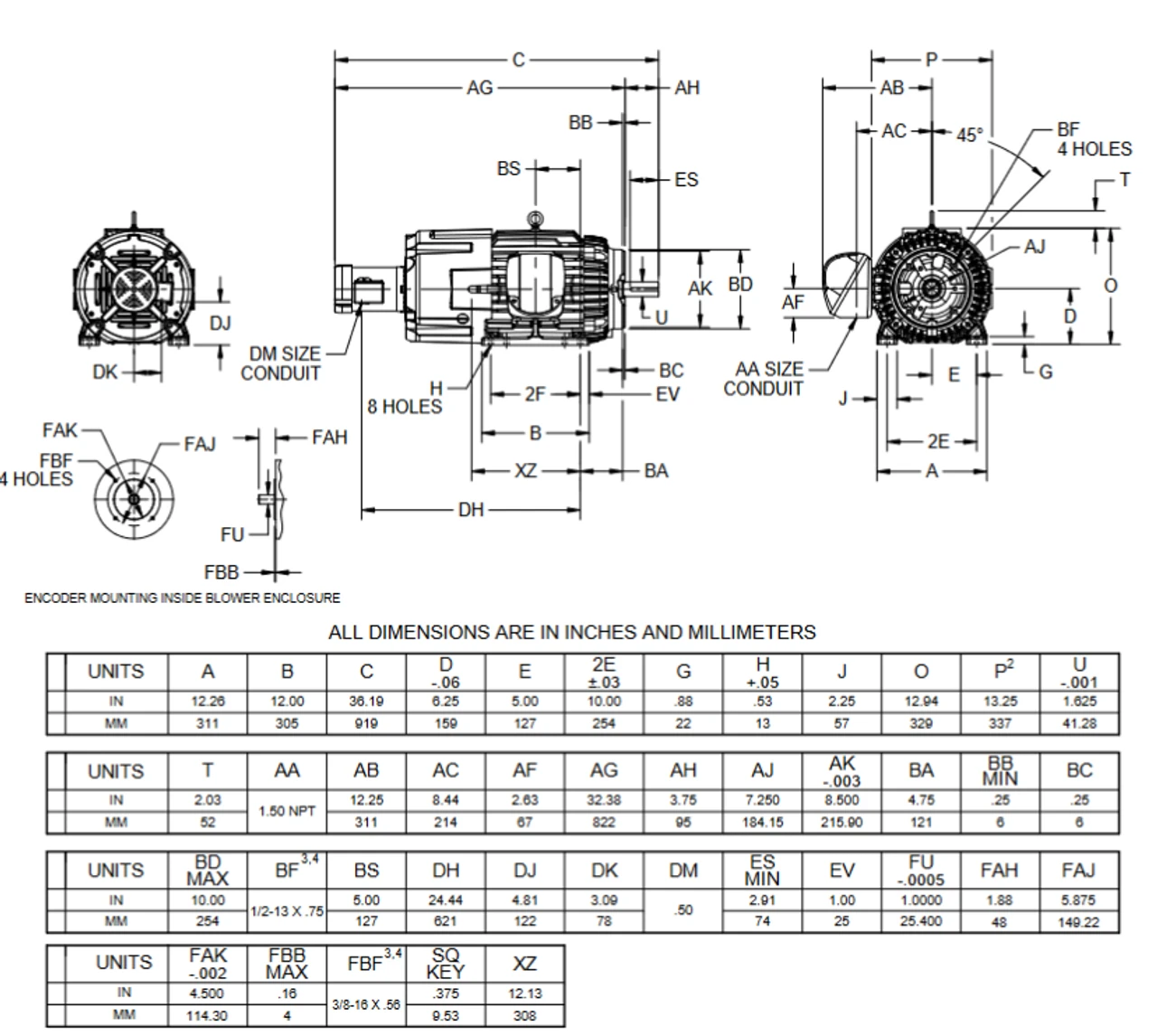

- NEMA 254TC Cast Iron Frame, Keyed Shaft 1 5/8″ Diameter x 4″
- Service Factor: 1.0 Overload protection = None
- C-Face Mount, Ball Bearings, Class H Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable C-Face motor for material handling, cranes and machine tools located in demanding, corrosive environments. 5000:1 constant torque from 0 to nominal motor rpm. NEMA design A. Encoder and brake provisions. Wiring diagram on motor name plate. TEBC = Totally-Enclosed Blower-Cooled. FP35
