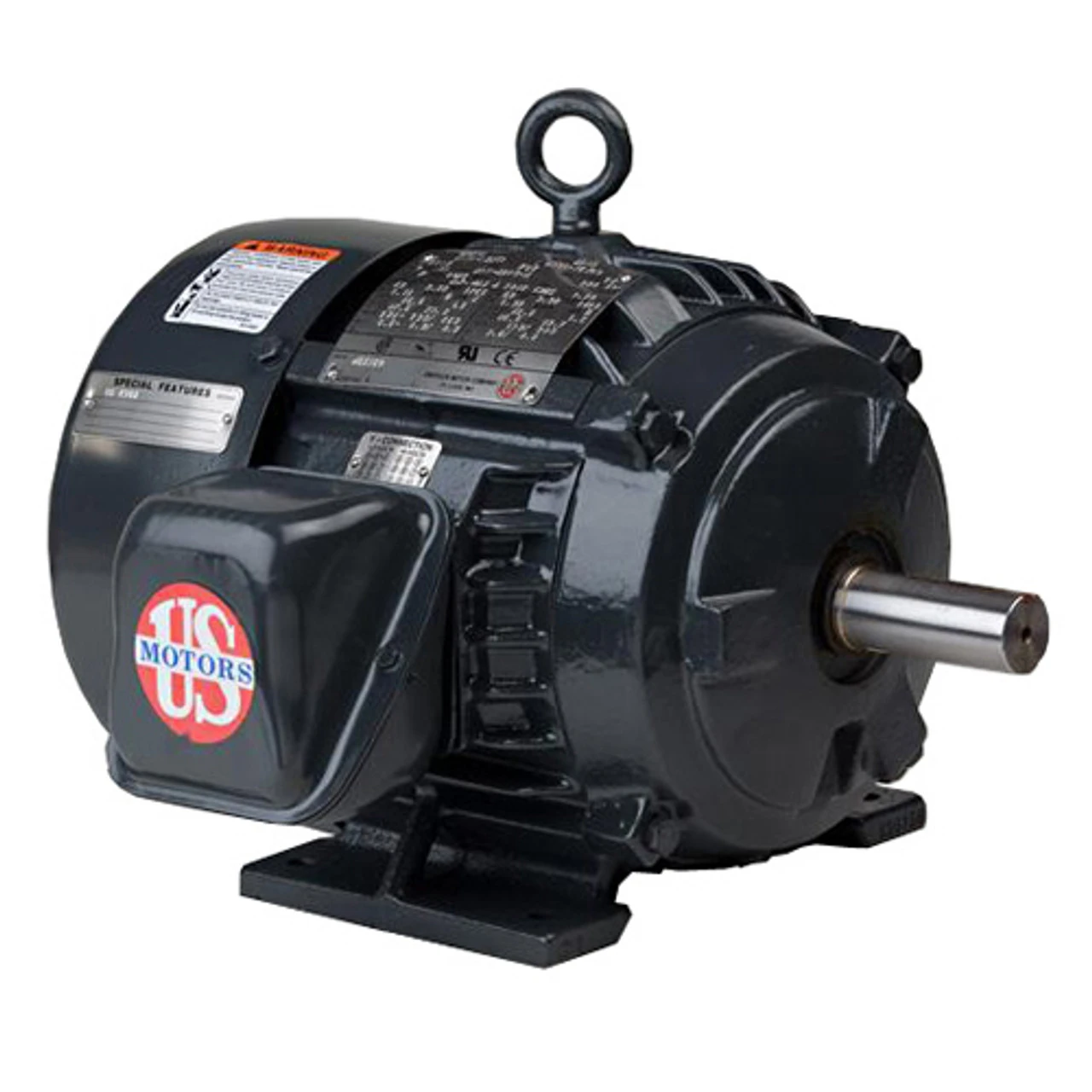

A25P4C Nidec 25 Hp 900 RPM 365 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
Original price was: $366.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 25 hp 900 RPM, 32.0 amps 460 Volts 60 Hz Three Phase Motor
- NEMA 365 Cast Iron U Frame Keyed Shaft 2 1/8″ Diameter x 6 3/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GD83
