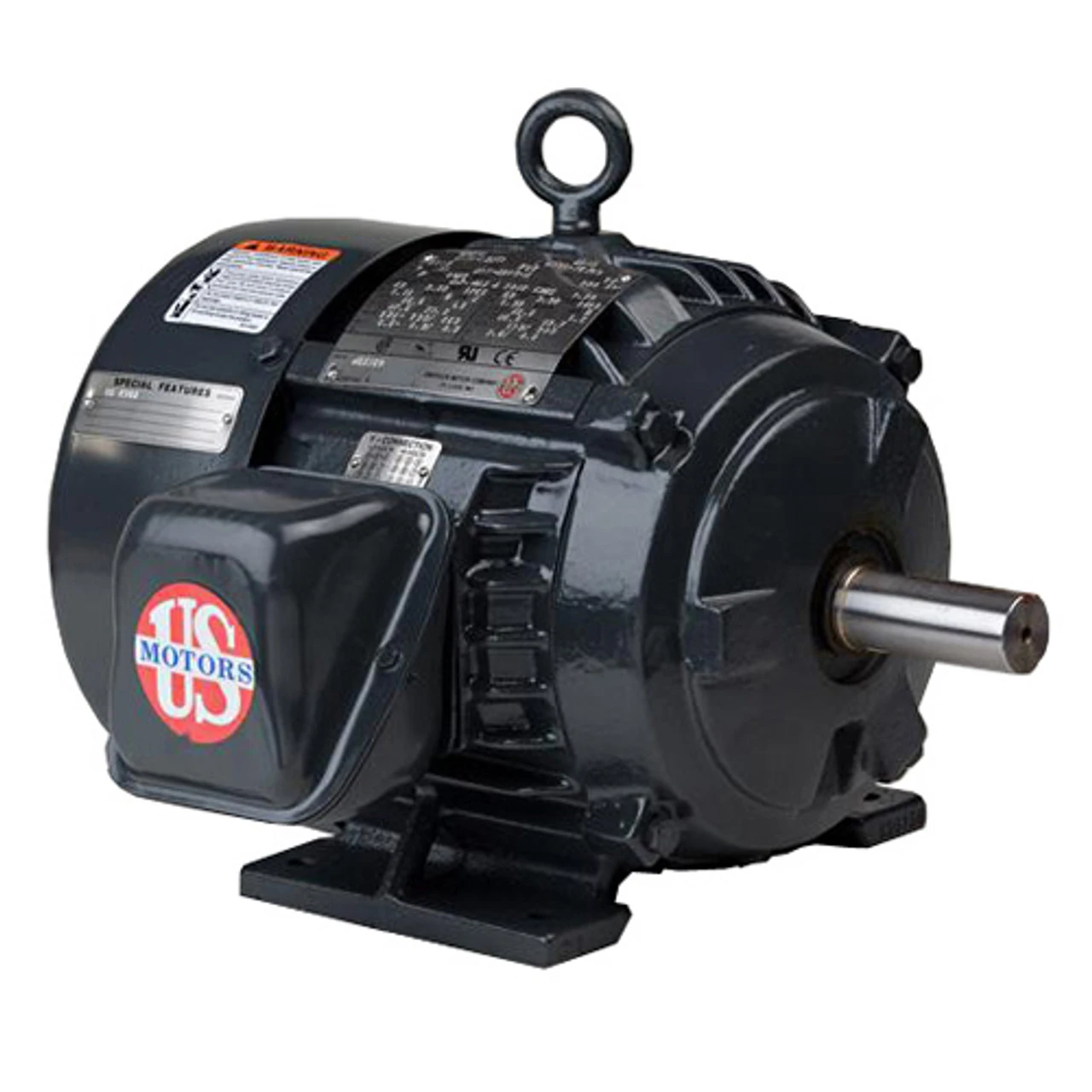

A15P4C Nidec 15 Hp 900 RPM 326 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

A15P4C Nidec 15 Hp 900 RPM 326 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor - Image 2

A15P4C Nidec 15 Hp 900 RPM 326 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

Original price was: $397.00.Current price is: $99.99.

SKU: ZWXLY 1698659513 Category: Electric Motors Tag: Nidec

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

15 hp 900 RPM, 20.0 amps 460 Volts 60 Hz Three Phase Motor

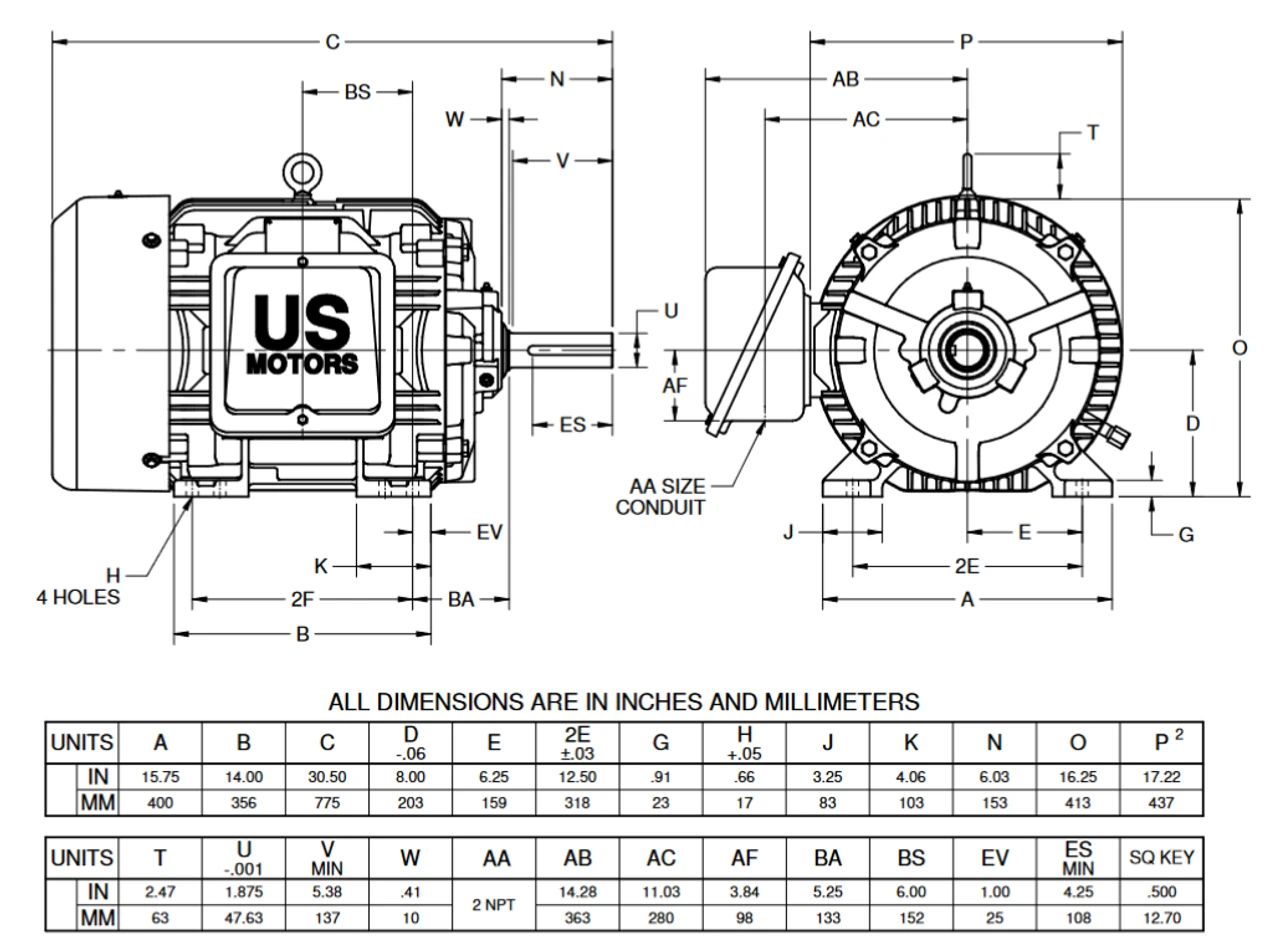

NEMA 326 Cast Iron U Frame Keyed Shaft 1 7/8″ Diameter x 5 5/8″
Service Factor: 1.15, Overload protection = None
Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
1 Year Manufacture Warranty

Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GC84
