A10P3C Nidec 10 Hp 1200 RPM 284 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
Original price was: $383.00.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 10 hp 1200 RPM, 12.4 amps 460 Volts 60 Hz Three Phase Motor

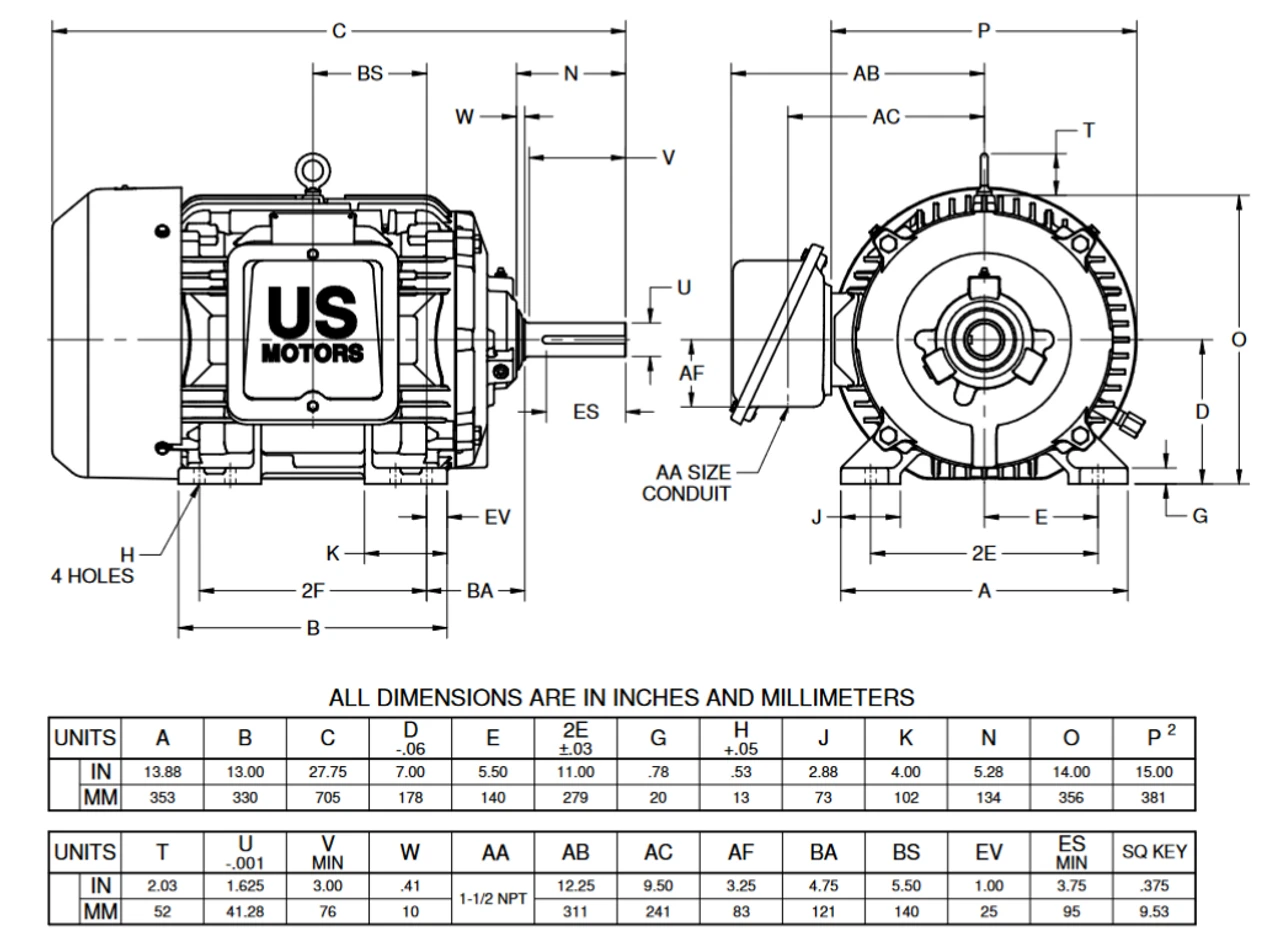

- NEMA 284 Cast Iron U Frame Keyed Shaft 1 5/8″ Diameter x 4 7/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GA79
