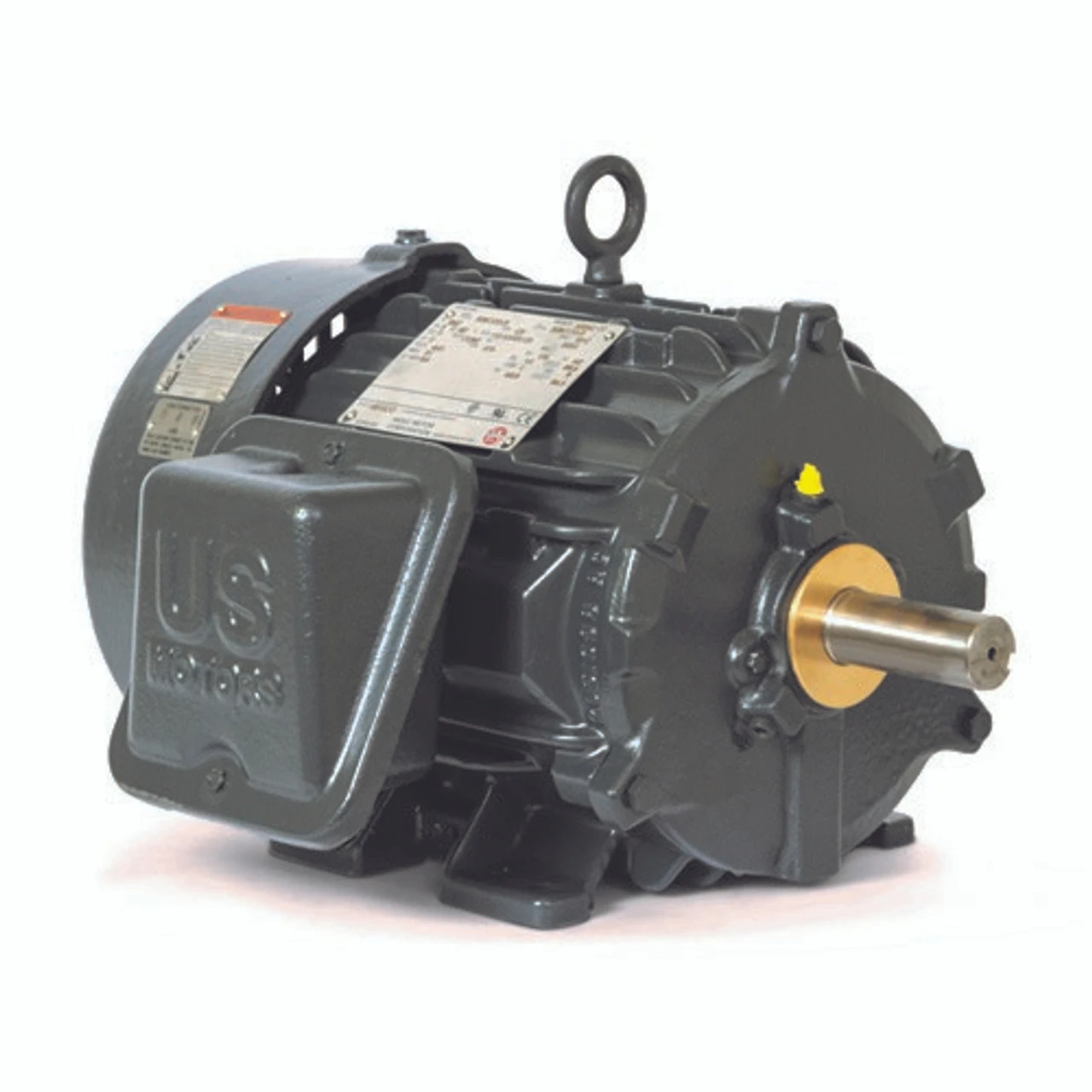

8D1P2C Nidec 1 Hp 1800 RPM 143T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor
Original price was: $323.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 hp 1800 RPM, 1.5 amps 460 Volts 60 Hz Three Phase Motor
- NEMA 143T Cast Iron Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 5 Year Manufacture Warranty, 3 year on inverter power
Corrosion resistant inverter duty motor is designed for use in petro-chemical and similar industries. Self-Certified Class 1, Division 2, Groups A, B, C, and D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GG43
