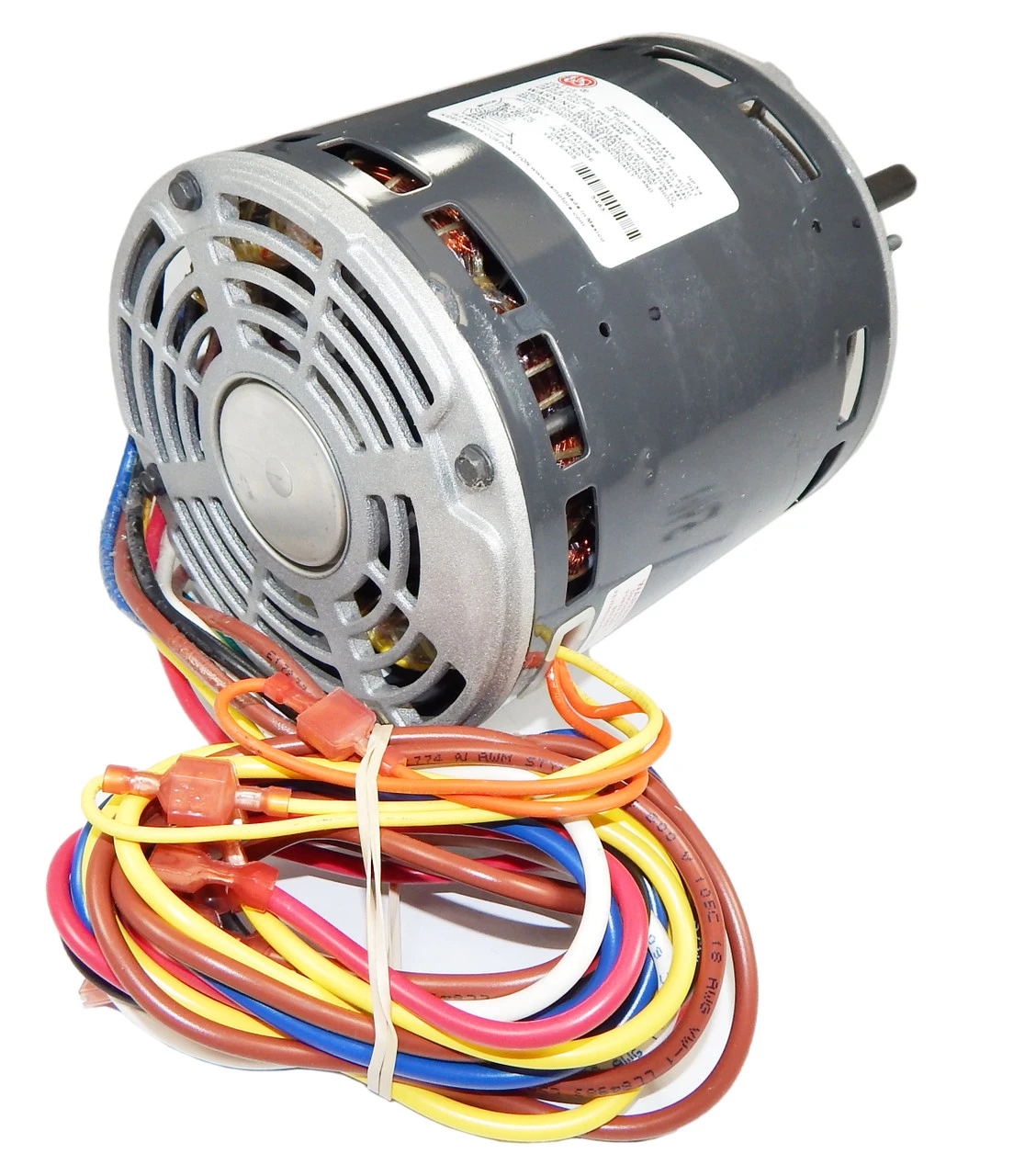

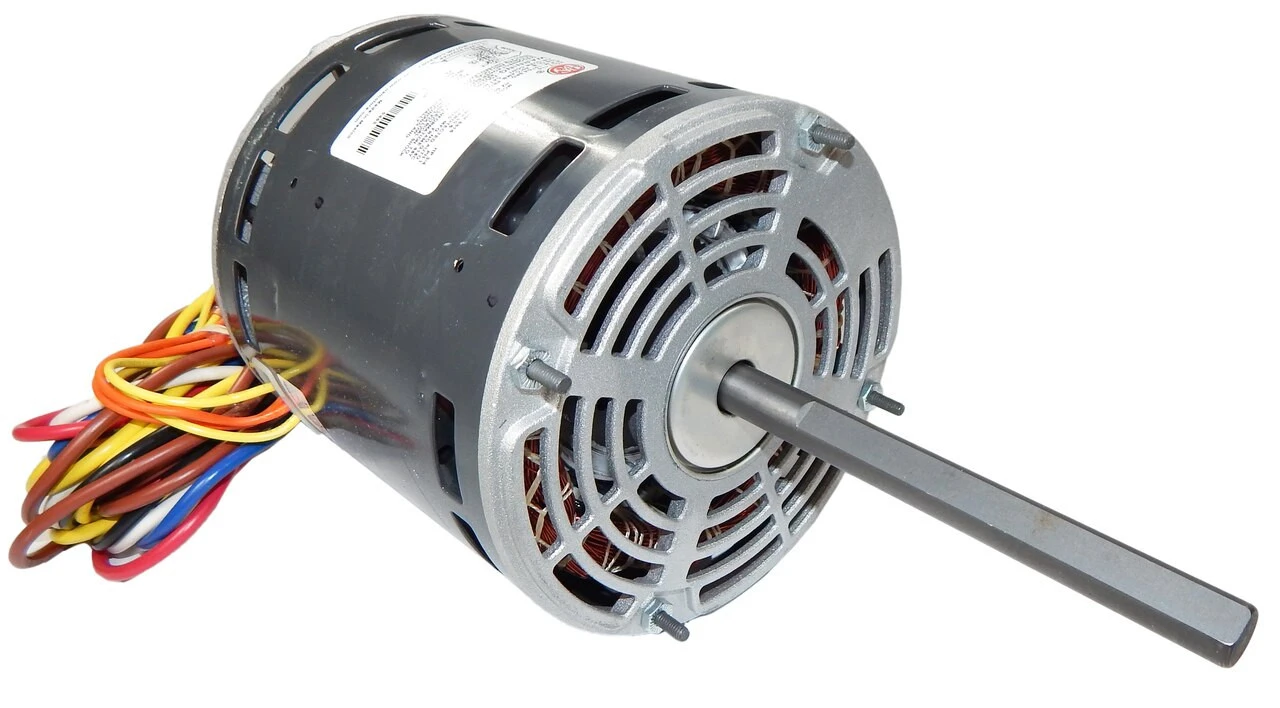

5463 Nidec | 3/4 Hp 1075 RPM 4-Speed 115V; 5.6″ Blower Motor
Original price was: $299.20.$96.99Current price is: $96.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 3/4 hp 1075 RPM, 4-Speed 115V 10.0 amps
- Shaft 5″ x 1/2″
- Rotation = Reversible
- 5 5/8″ Diameter
- Motor case length 5.8″
- Ball Bearings
- Includes for holes in shell for Rheem mounting
- Includes 15 MFD capacitor
- 1 Year mfg warranty
Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Air Over; Class B Insulation; 40C Ambient Temperature; 36″ Leads. Application: Furnace blower motor. Includes 2.25″ Dia. hub rings with kit for 2.5″ included. Suggested after market replacement for Rheem K055TDM8416012B., K55HXPAD4962, 51-22700-01, 51-23017-42, K55WDRJ7033, HQ1010263EM, 5452
