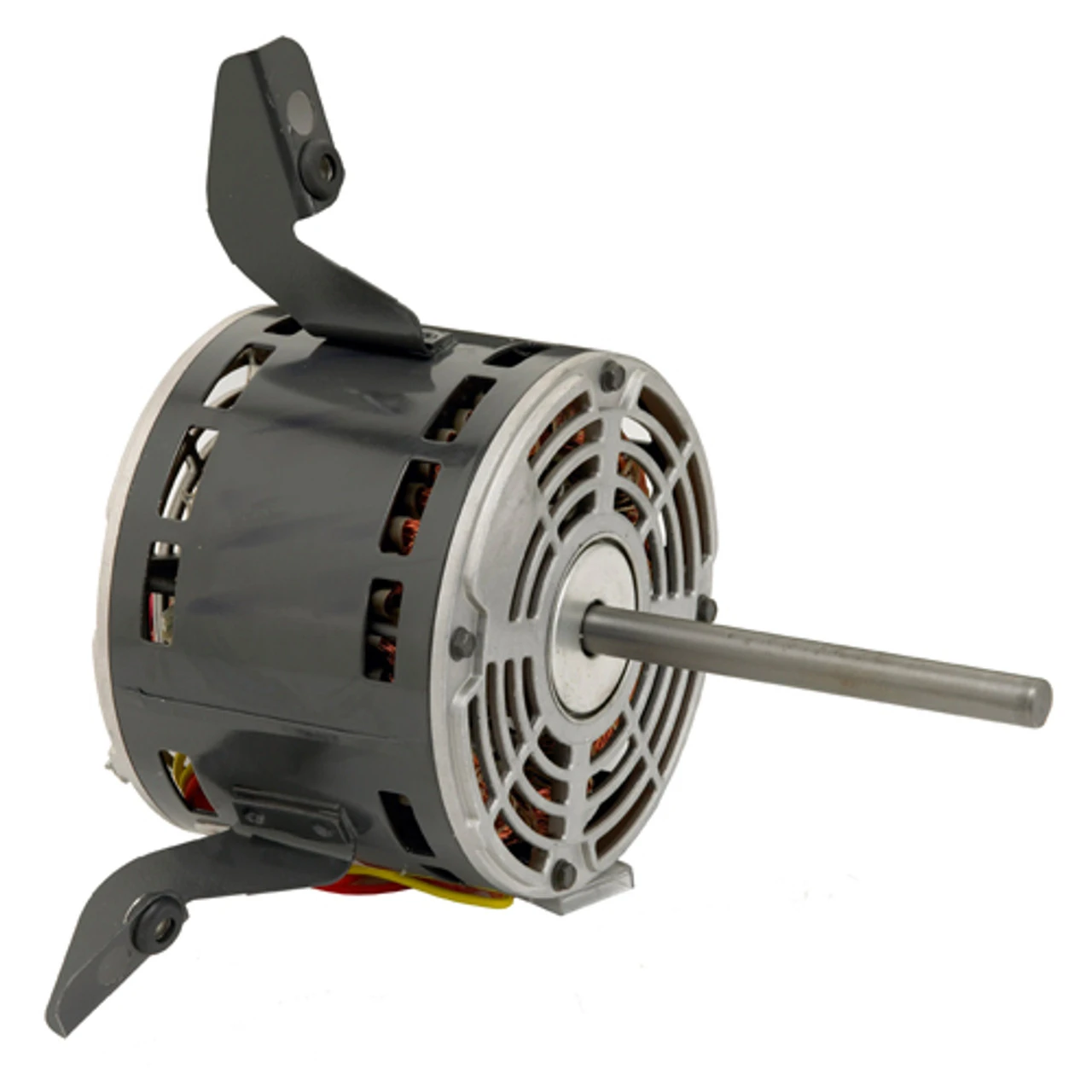

3784 Nidec 1/4 Hp 1075 RPM 208-230V 5.6″ Dia. (No Base) 3-Speed OAO Fan Motor
Original price was: $199.10.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1/4 hp 1075 RPM (3 speed), 1.7 amps 208-230V Volts 60 Hz PSC Motor
- 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 5″
- Service Factor = 1, Overload Protection: Auto
- Flex Mount, Sleeve Bearings, Class A Insulation, Rev
- 1 Year Manufacture Warranty

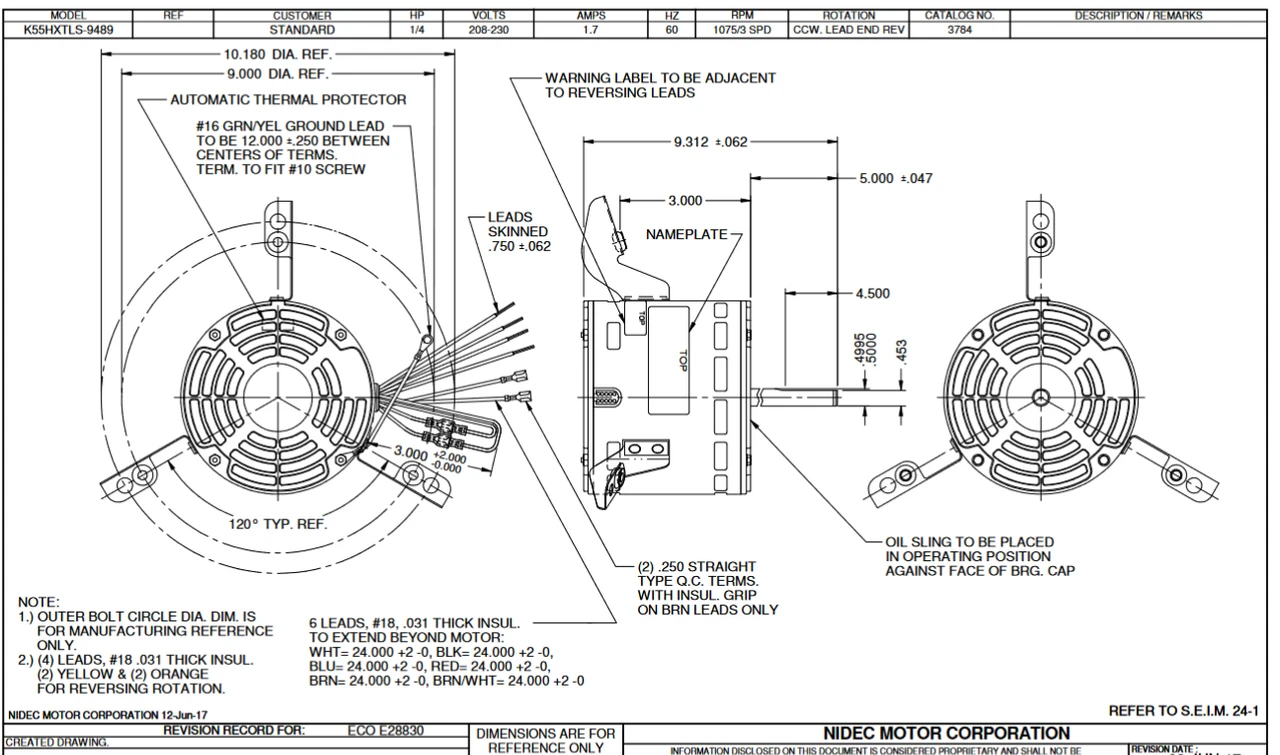

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air Over, K055TLS9489012B
Be the first to review “3784 Nidec 1/4 Hp 1075 RPM 208-230V 5.6″ Dia. (No Base) 3-Speed OAO Fan Motor”
