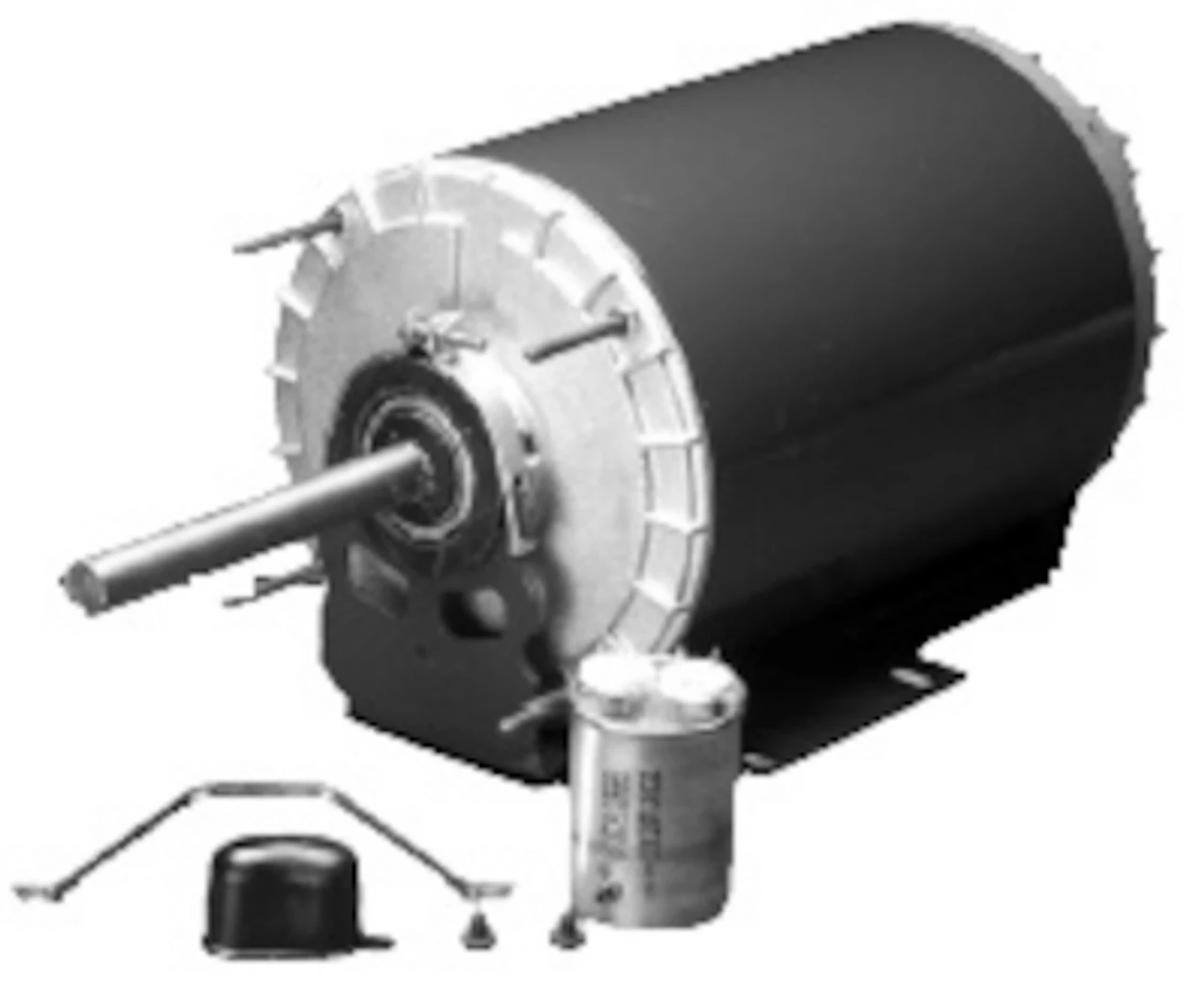

2203 Nidec 1 Hp 1075 RPM 208-230/460V 6.5″ Dia. (No Base) 1-Speed Enclosed Condenser Motor
Original price was: $329.00.$95.99Current price is: $95.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 1 hp 1075 RPM, 5.5-5.1/2.6 amps 208-230/460V Volts 60 Hz PSC Motor
- NEMA 6.5″ Dia. Frame, Rolled Steel, Flat Shaft 5/8″ Diameter x 5″ long
- Service Factor = 1, Overload Protection: Auto
- Hub/Stud Mount, Ball Bearings, Class B Insulation, Rev
- 1 Year Manufacture Warranty

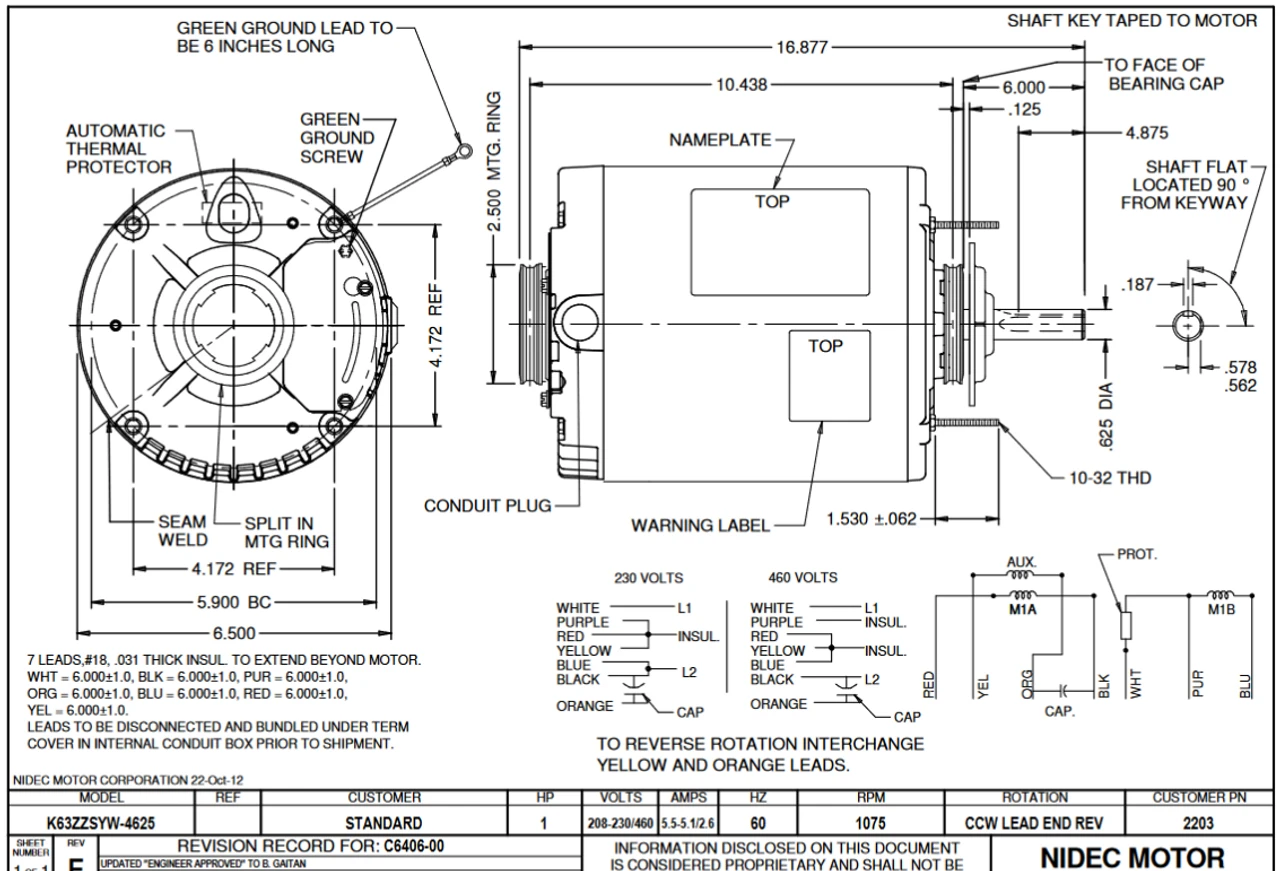

Replacement Condenser Fan Motor for certain brands. Wiring diagram on motor name plate. Enclosed, K063SYW4625012B
Be the first to review “2203 Nidec 1 Hp 1075 RPM 208-230/460V 6.5″ Dia. (No Base) 1-Speed Enclosed Condenser Motor”
