194010.00 Leeson SST Duck 20 Hp 3600 RPM 208-230/460V 3-Phase 256TC Frame TEFC (base) Motor
Original price was: $366.00.$97.99Current price is: $97.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 20 hp 3600 RPM, 50.5-45.0/22.5 amps 208-230/460 Volts 60 Hz. Three Phase
- NEMA 256TC frame, C-face, Stainless Steel Keyed Shaft 1 5/8″ Diameter x 4″
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty,Â

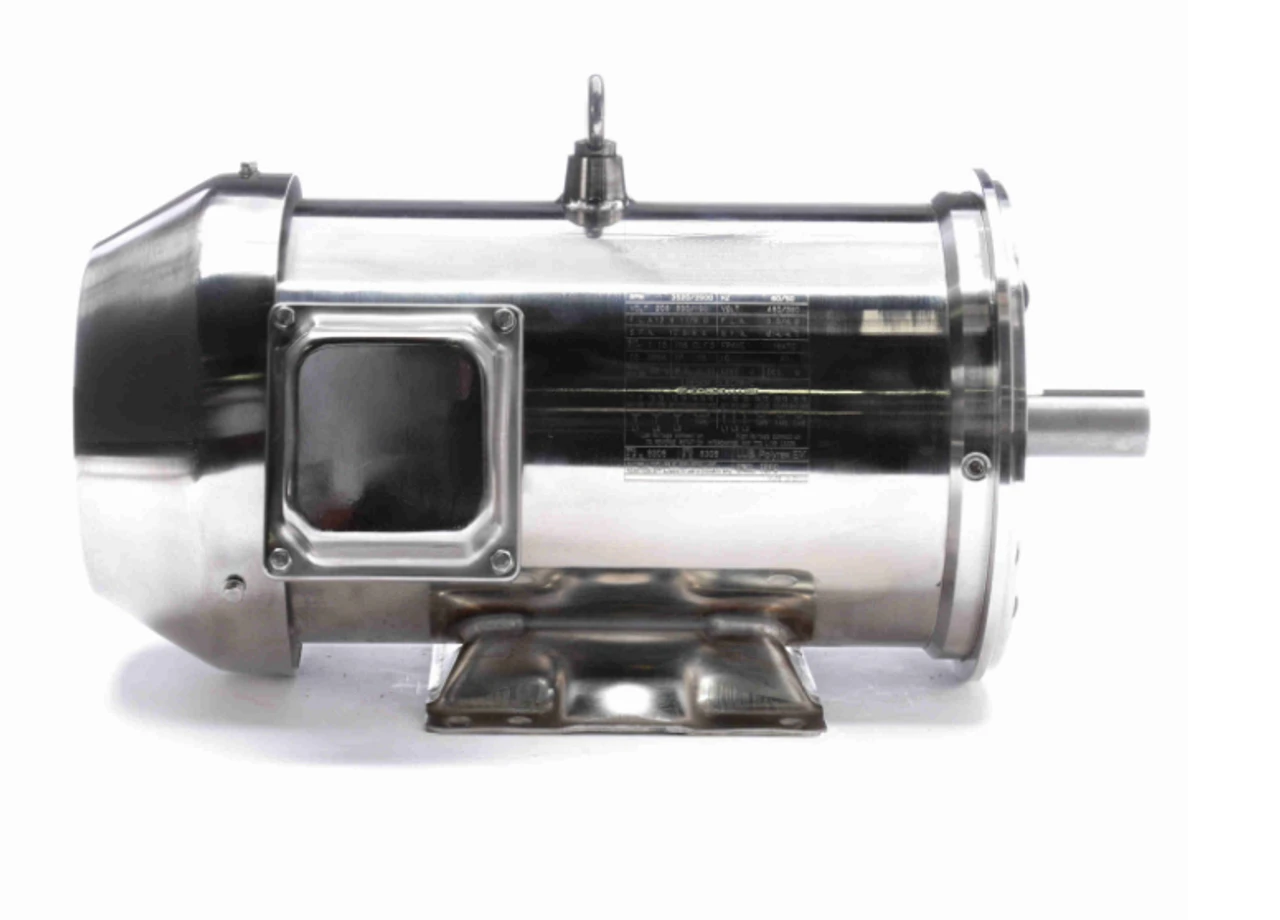

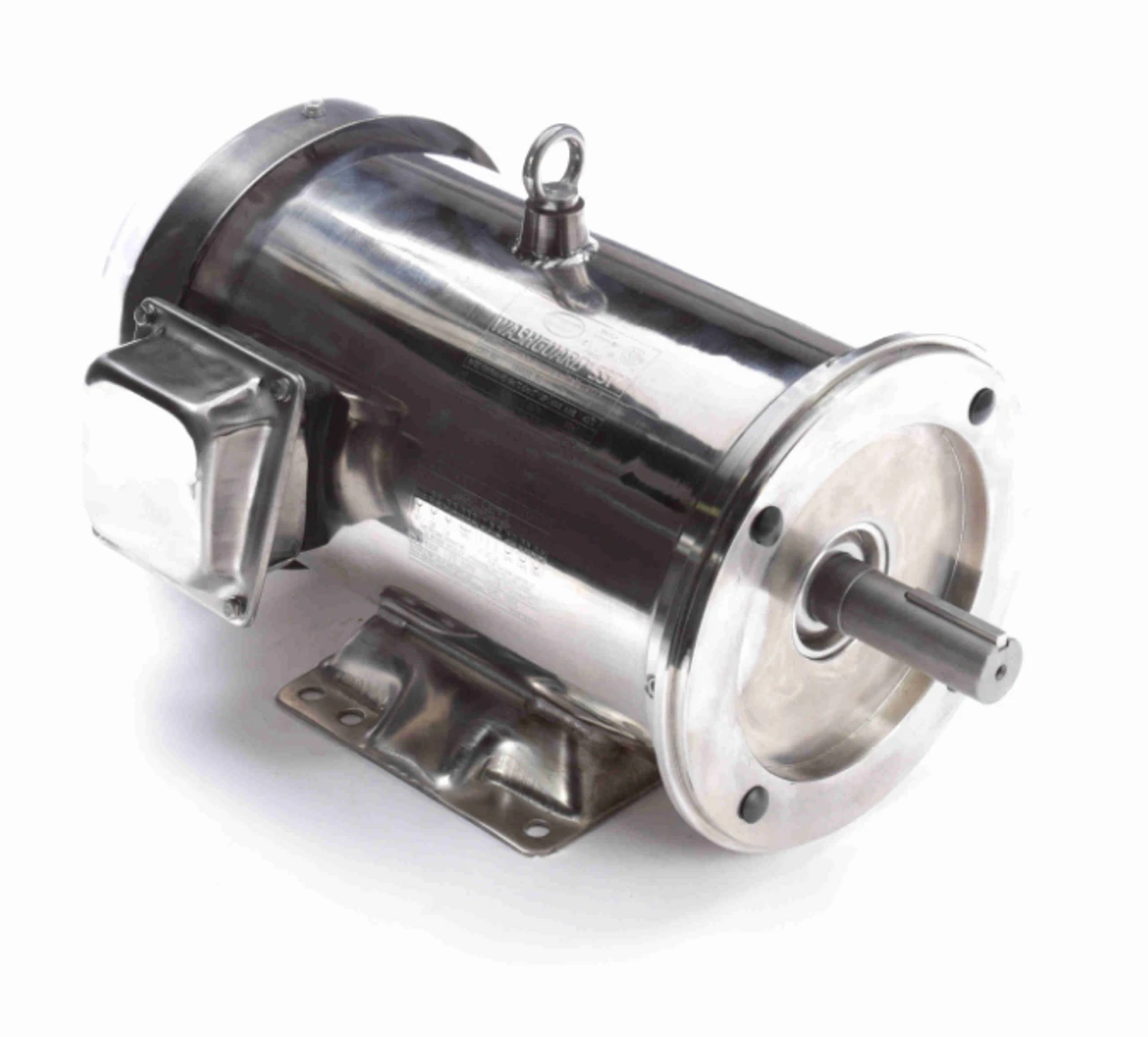

Full stainless steel exterior promotes resistance to water and chemical corrosion. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 194010.00
