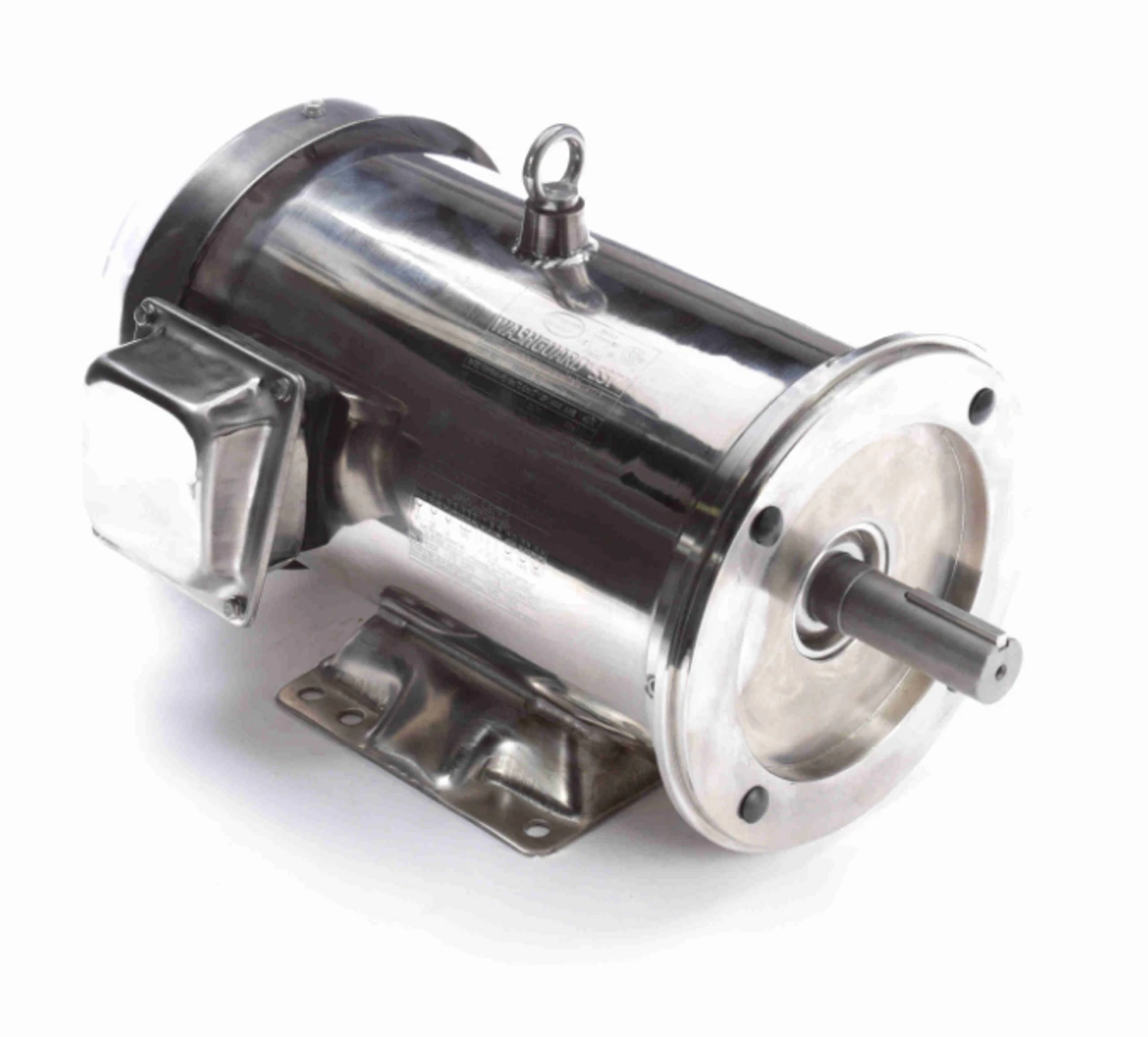

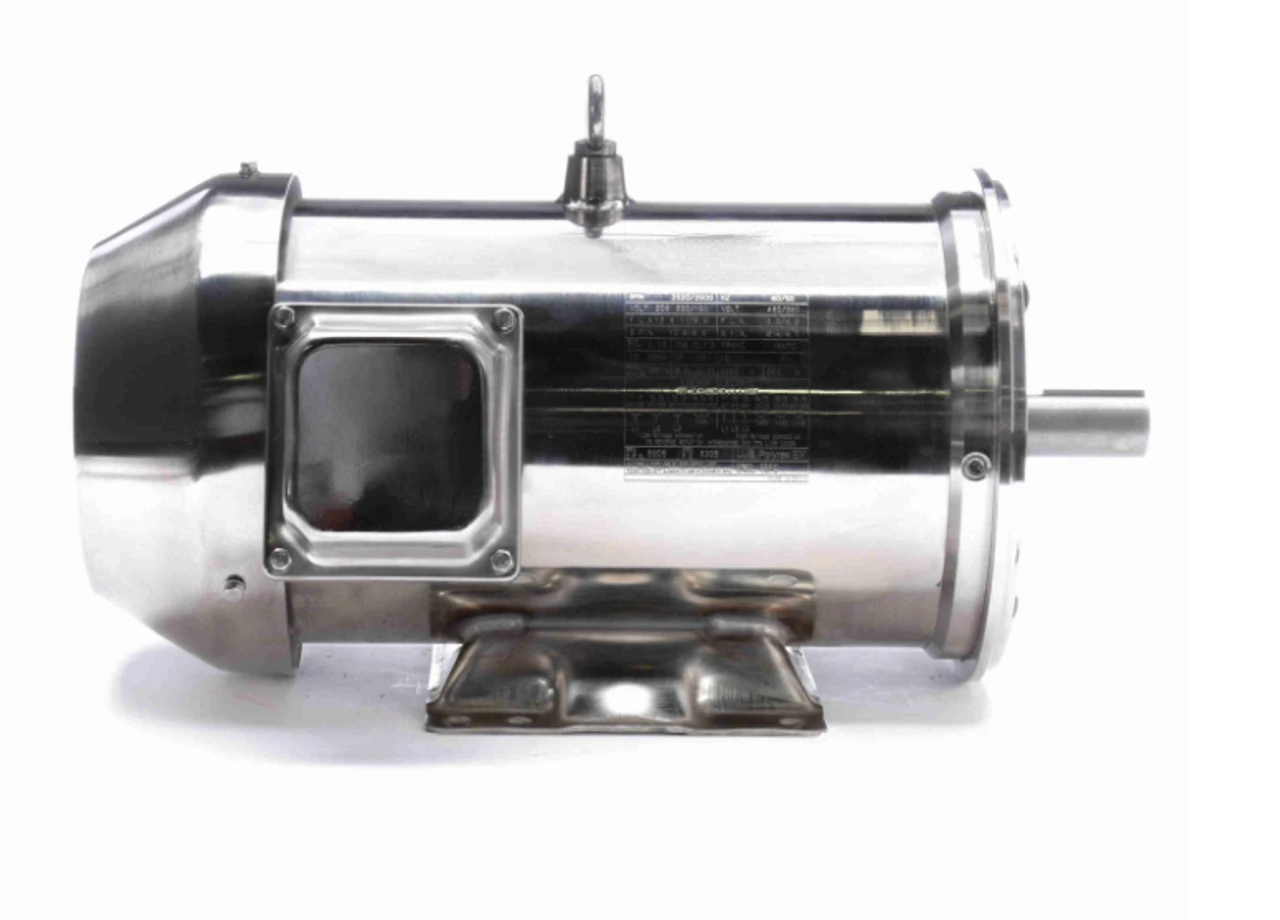

194007.00 Leeson SST Duck 10 Hp 1800 RPM 230/460V 3-Phase 215TC Frame TEFC (base) Motor
Original price was: $309.00.$98.99Current price is: $98.99.
- Discover a world of quality products.
- Secure Shopping Starts with Safe Payments
- Uncompromising quality, every time.
- Free 1 year warranty period
- 10 hp 1800 RPM, 25.2/12.6 amps 230/460 Volts 60 Hz. Three Phase
- NEMA 215TC frame, C-face, Stainless Steel Keyed Shaft 1 3/8″ Diameter x 3 3/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty,Â
Full stainless steel exterior promotes resistance to water and chemical corrosion. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 194007.00
