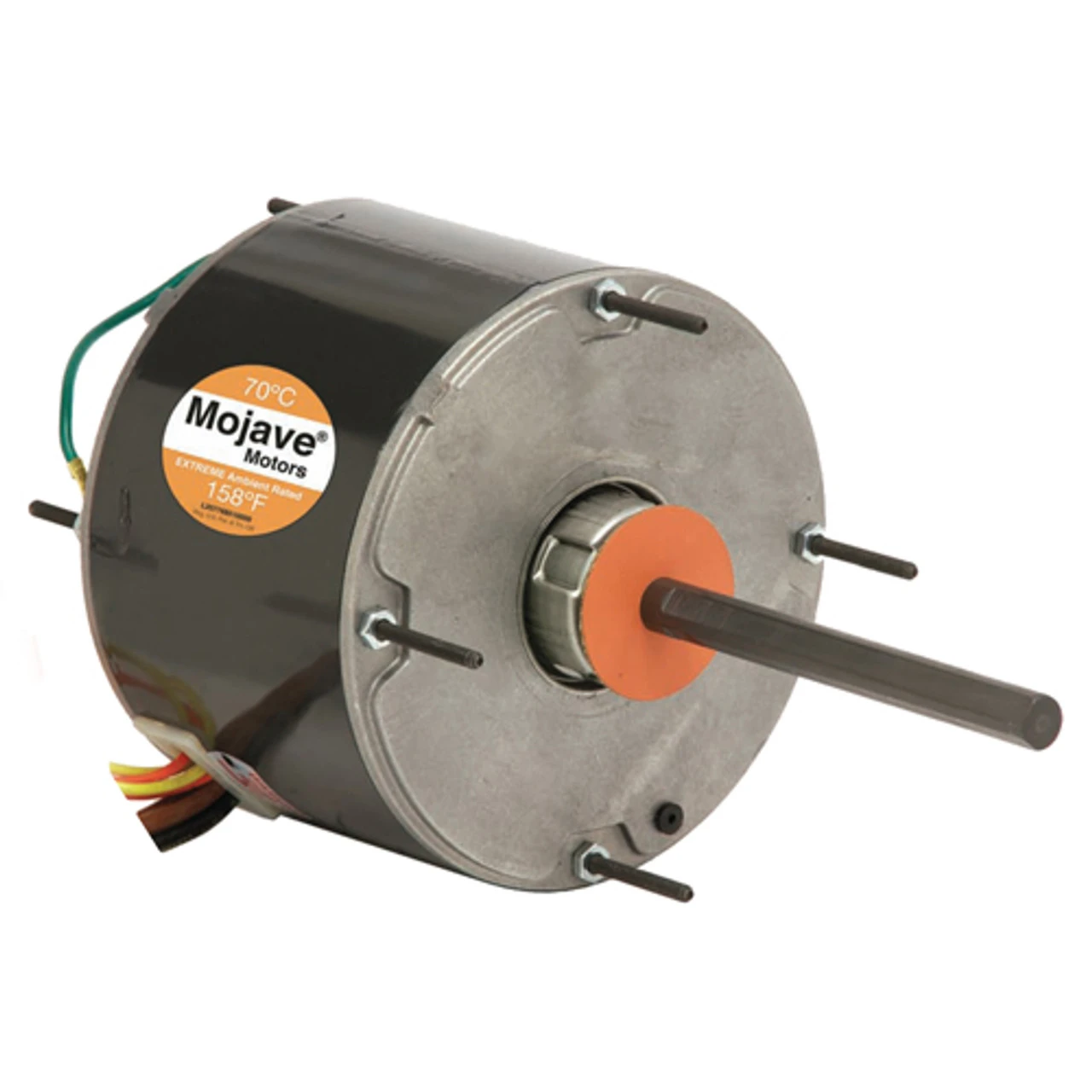

1861H Nidec 1/3 Hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

1861H Nidec 1/3 Hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor - Image 2

1861H Nidec 1/3 Hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor -Electric Motor Warehouse Store 1861 line 24255.1675959408

1861H Nidec 1/3 Hp 1075 RPM 208-230V 5.6″ Dia. (No Base) 1-Speed TEAO Condenser Motor

Original price was: $121.70.Current price is: $85.19.

SKU: ZWXLY 1698667632 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Nidec

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

1/3 hp 1075 RPM, 2.1 amps 208-230V Volts 60 Hz PSC Motor
NEMA 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 4 1/2″
Service Factor = 1, Overload Protection: Auto
Stud Mount, Ball Bearings, Class F Insulation, Rev
1 Year Manufacture Warranty

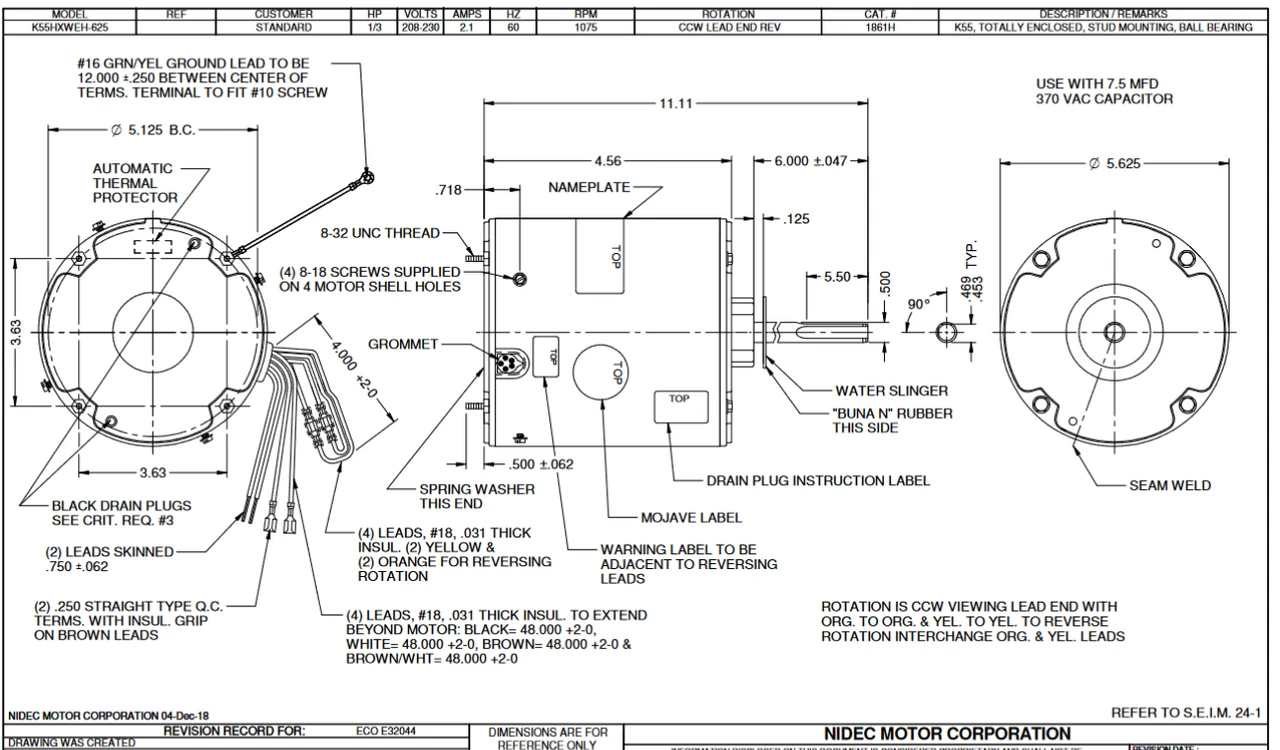

Condenser Fan Motor for hot environments. Wiring diagram on motor name plate. TEAO = Open Drip Proof, K055WEH0625012B
