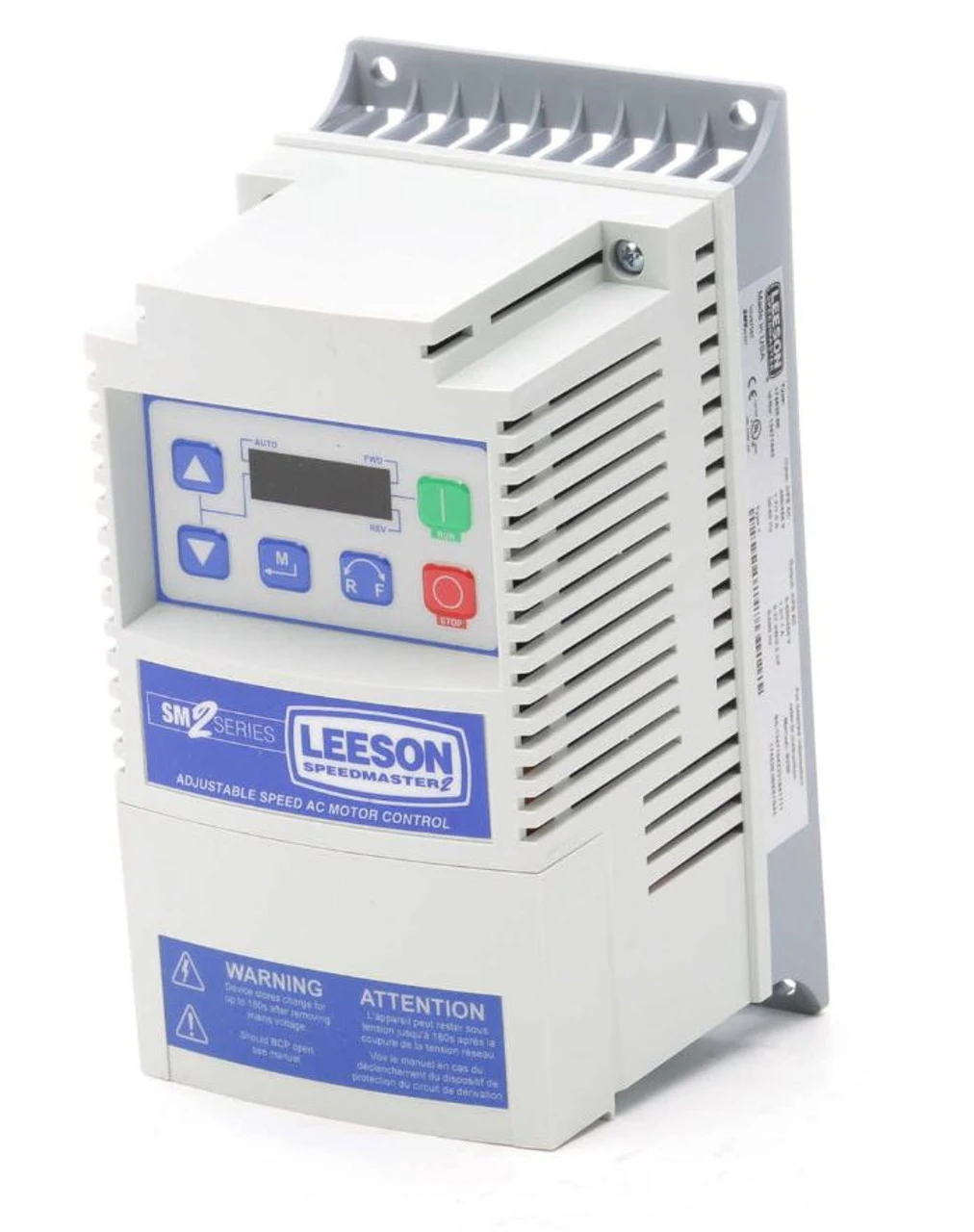

174610.00 Leeson SM2 AC Adjustable Speed VFD Drive 2HP 200-240V

Original price was: $391.00.Current price is: $97.99.

SKU: ZWXLY 1698666094 Categories: Electric Motors, Motor Controls Tag: Leeson

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

SM2 Series Flux Vector Series AC Inverter

2hp, 200-240V; Max amps 7.0
Three Phase Input/Output Only
Designed to be used with vector duty rated AC motors
Typical applications would include: food processing, machinery, material handling and HVAC systems
Enclosure: NEMA 1, IP31, -10 to 55C degrees, 2.5% derate per degree above 40C
NEMA 1 = General purpose enclosures for indoor use. Protects against light dust, is not dust-tight. Primarily prevents accidental contact with the electrical components.

Modes of Operation:
Open loop flux vector (speed or torque)
V/Hz (constant or variable)
Enhanced V/Hz with auto-tuning

Easy to Use Keypad & Display
6 Button Interface: Start, Stop, Forward/Reverse, Scroll Up/Down, Enter/Mode

Vivid Illumination
4 digit LED Display
Easy to read from a distance
Movable decimal point

Weight: 4-lbs
Dimensions: 7.5 x 3.9 x 5.45 (inches)

Replaces Leeson 174917.00 VFD Drive

Specifications are subject to change without notice
