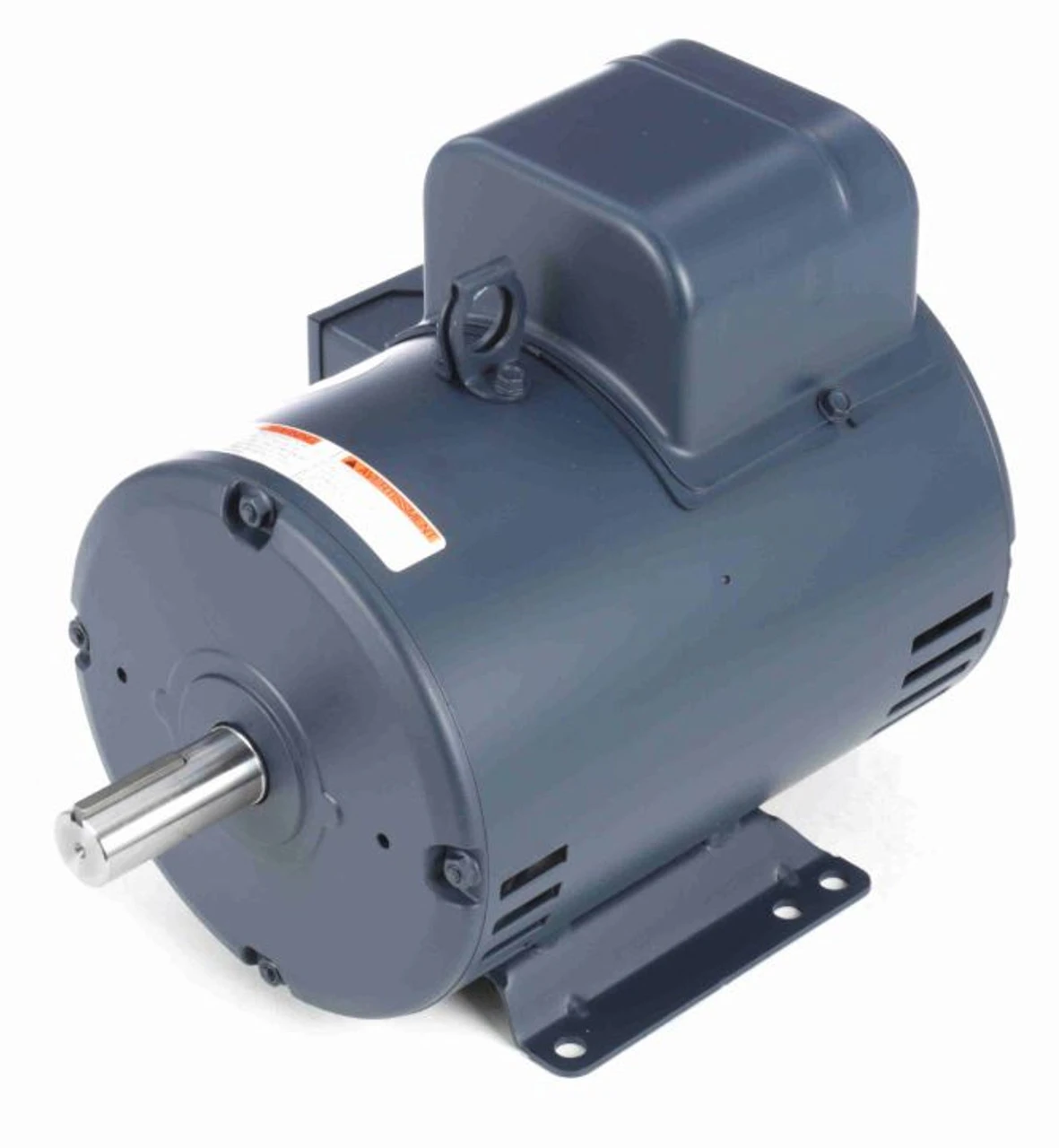

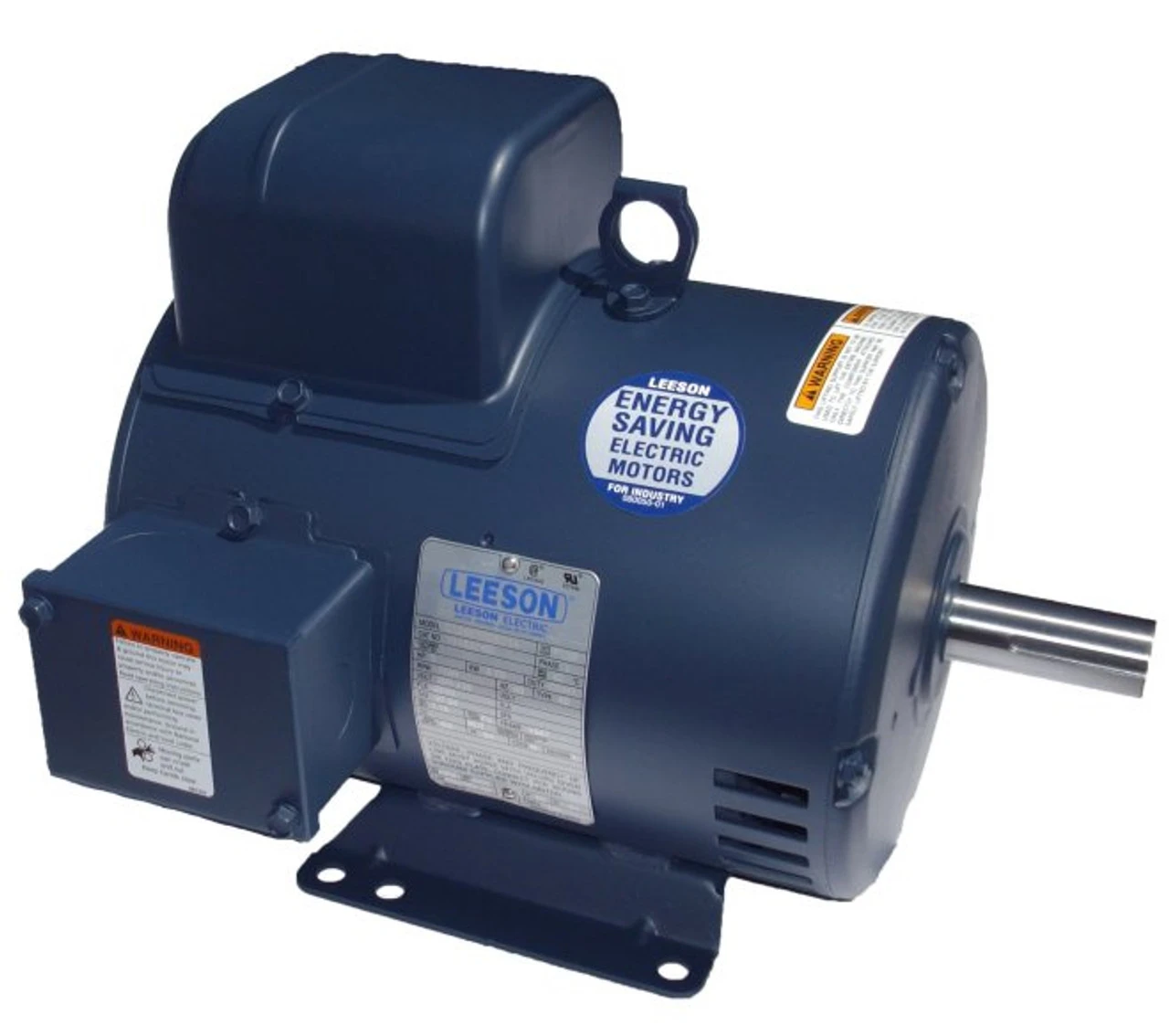

131560.00 Leeson | 5 Hp 1725 RPM 184T Frame ODP 208V

131560.00 Leeson | 5 Hp 1725 RPM 184T Frame ODP 208V - Image 2

131560.00 Leeson | 5 Hp 1725 RPM 184T Frame ODP 208V - Image 3

131560.00 Leeson | 5 Hp 1725 RPM 184T Frame ODP 208V - Image 4

131560.00 Leeson | 5 Hp 1725 RPM 184T Frame ODP 208V

Original price was: $330.00.Current price is: $98.99.

SKU: ZWXLY 1698662496 Categories: Air Compressor Motors, Electric Motors Tag: Leeson

Discover a world of quality products.
Secure Shopping Starts with Safe Payments
Uncompromising quality, every time.
Free 1 year warranty period

Description
Reviews (0)

5 hp 1740 RPM 184T 208V, 23.2 amps 60hz.; Single Phase
Open Drip Proof – Ball Bearings – Service Factor 1.15
Ball Bearings – Electrically Reversible; No Overload Protection
Class F Insulation

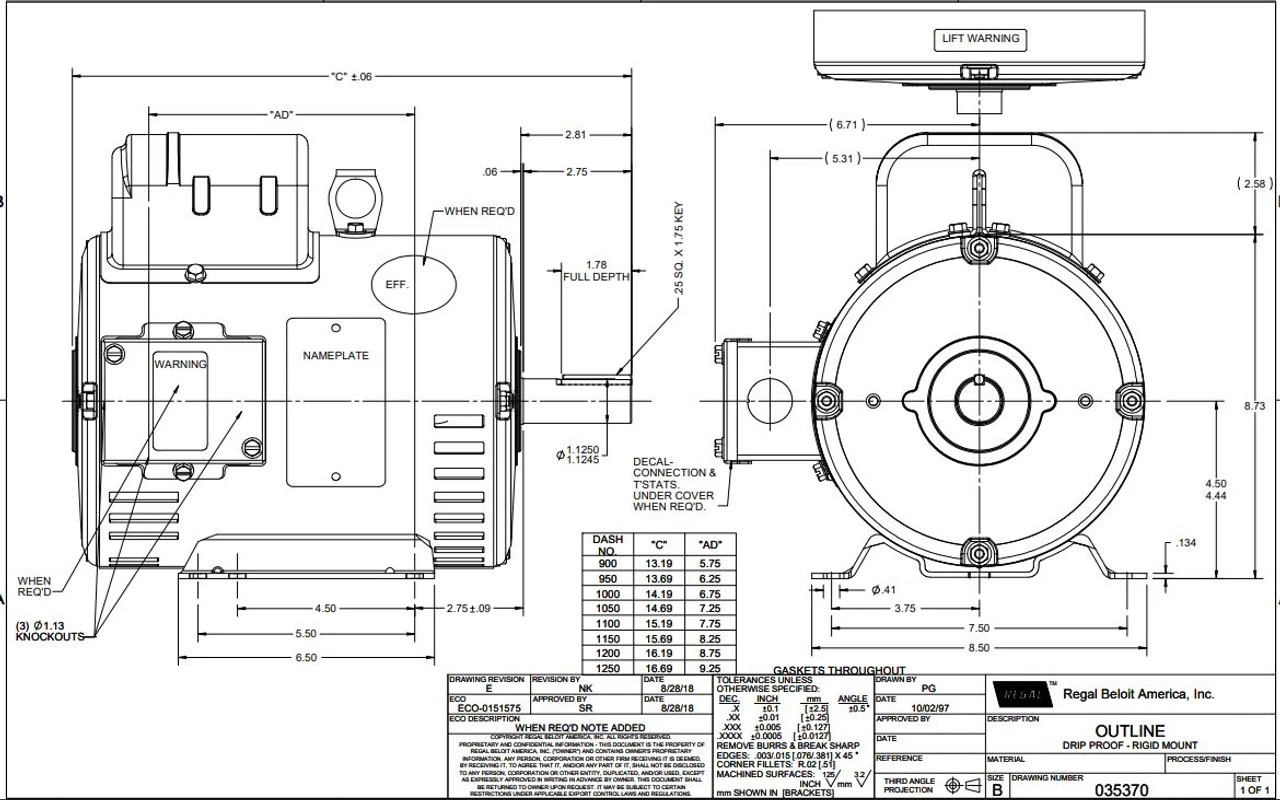

NEMA 184T Frame – Shaft: 1 1/8″ x 2 3/4″
Capacitor Start/Capacitor Run

This motor ships via Freight Truck, cannot ship direct to a residential address

208 Voltage only!
Standard 5 hp general purpose Electric motor. Applications: Air Compressors, sprayers and many other applications. Motor has standard 184T flat mounting base. Overall Length = 14.69″. 1 Year manufacture warranty.

Replaces Century V209, V209M2, Dayton 48Y884. Model C184K17DB32A; 131560.00
