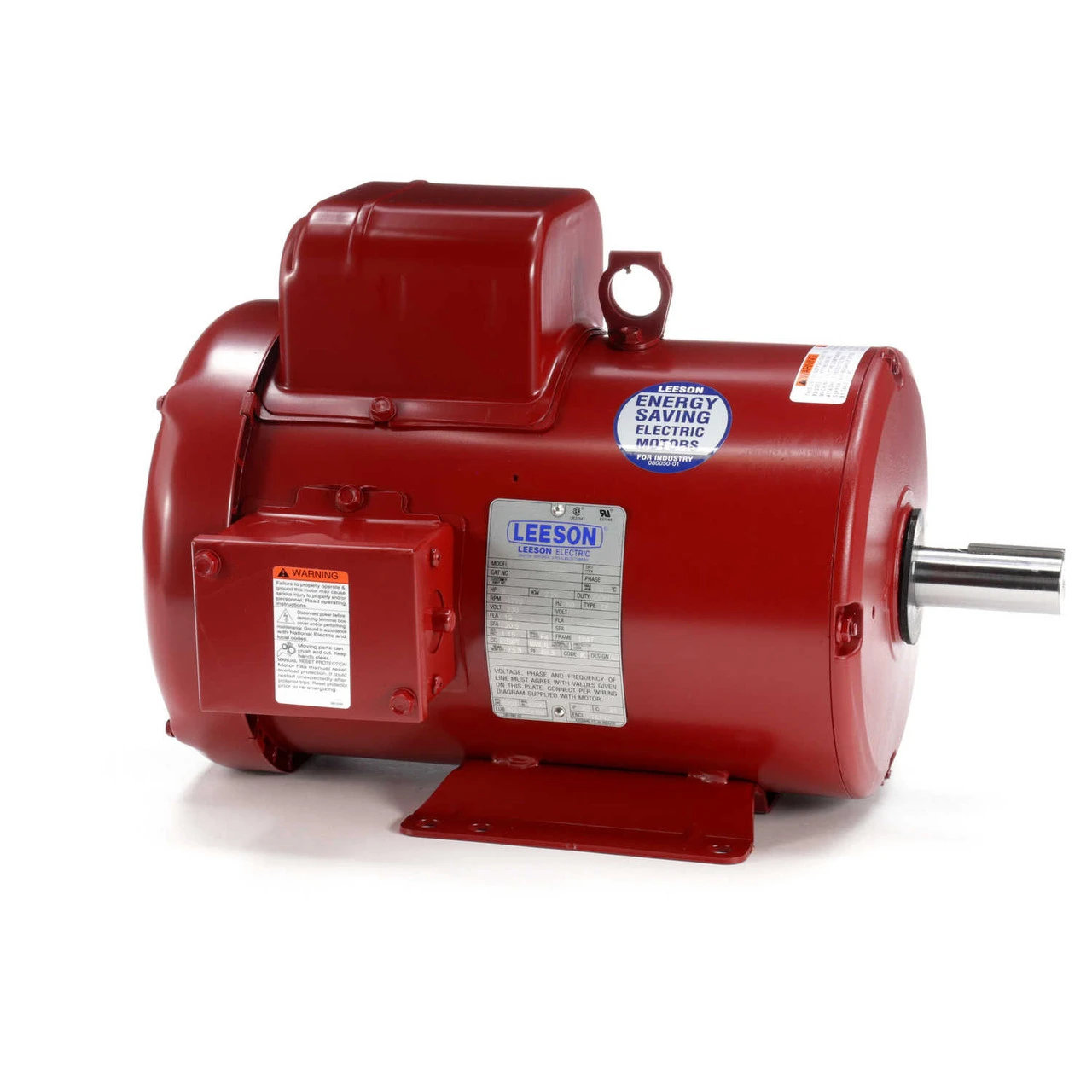

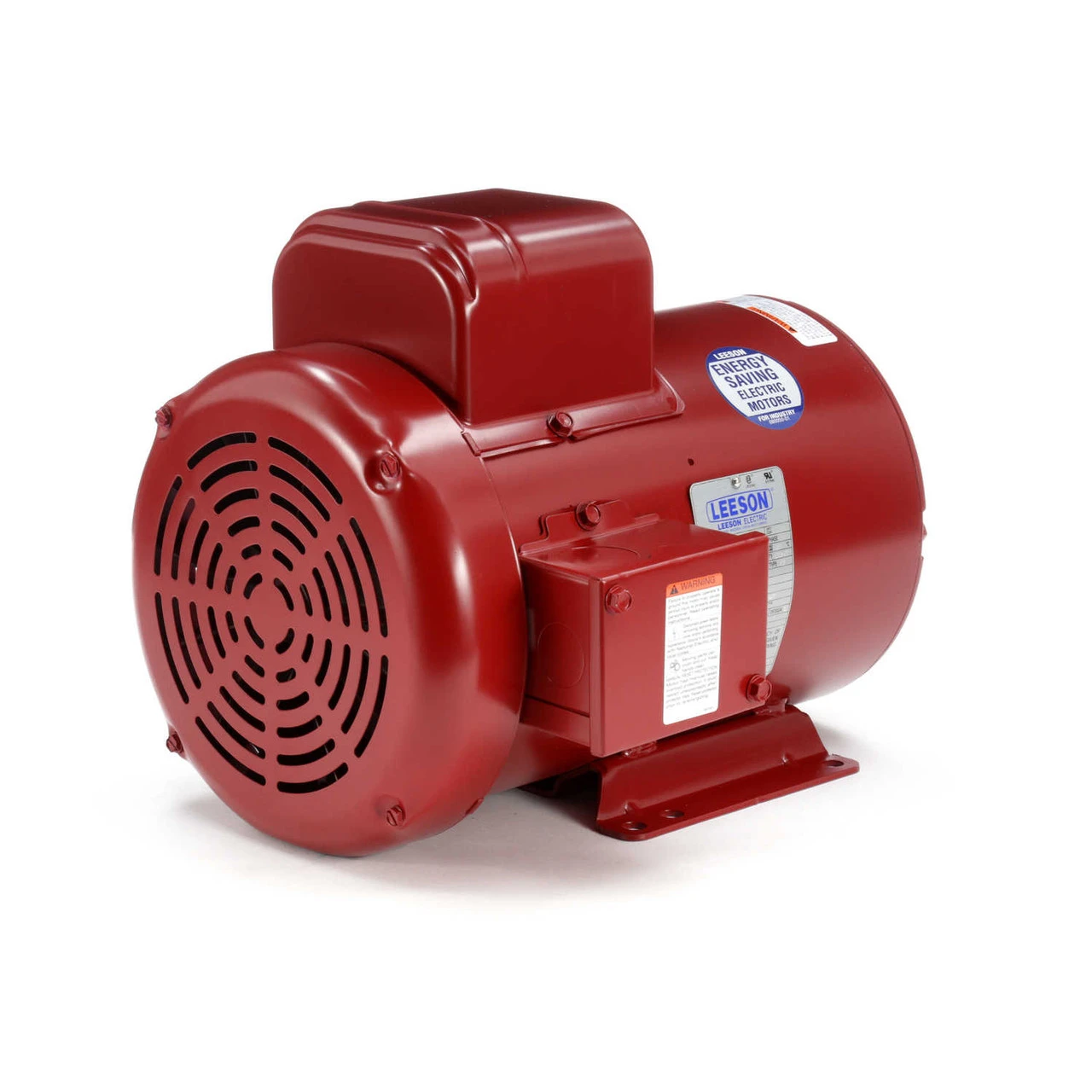

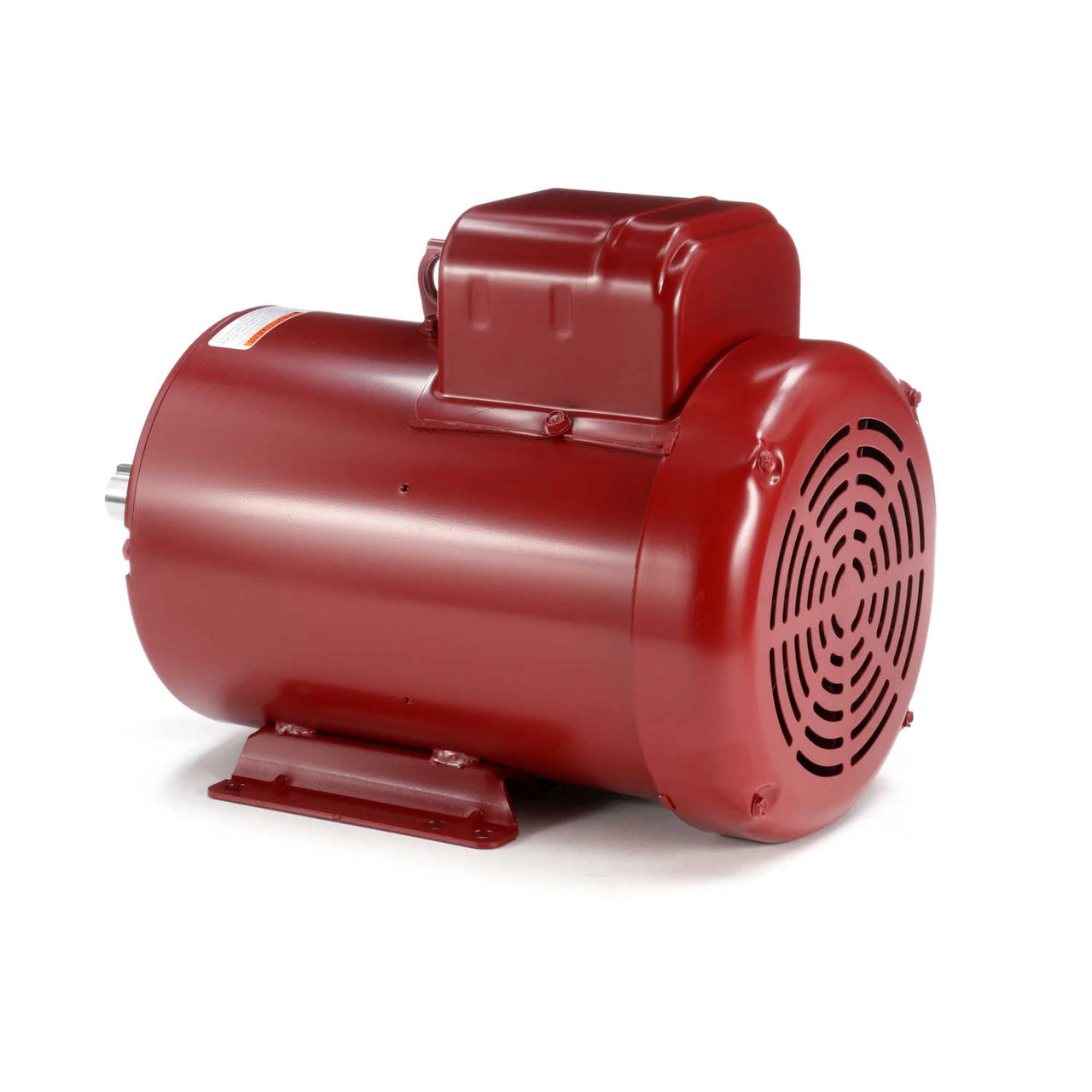

131542.00 Leeson | 3 Hp 1740 RPM 184T Frame TEFC (Farm Duty) 230 Volts

• 3 hp 1740 RPM, 19.0 amps, 230V 60hz.; Single Phase
• TEFC – Totally Enclosed Fan cooled – Electrically Reversible
• Manual Overload Protection – Service Factor 1.15

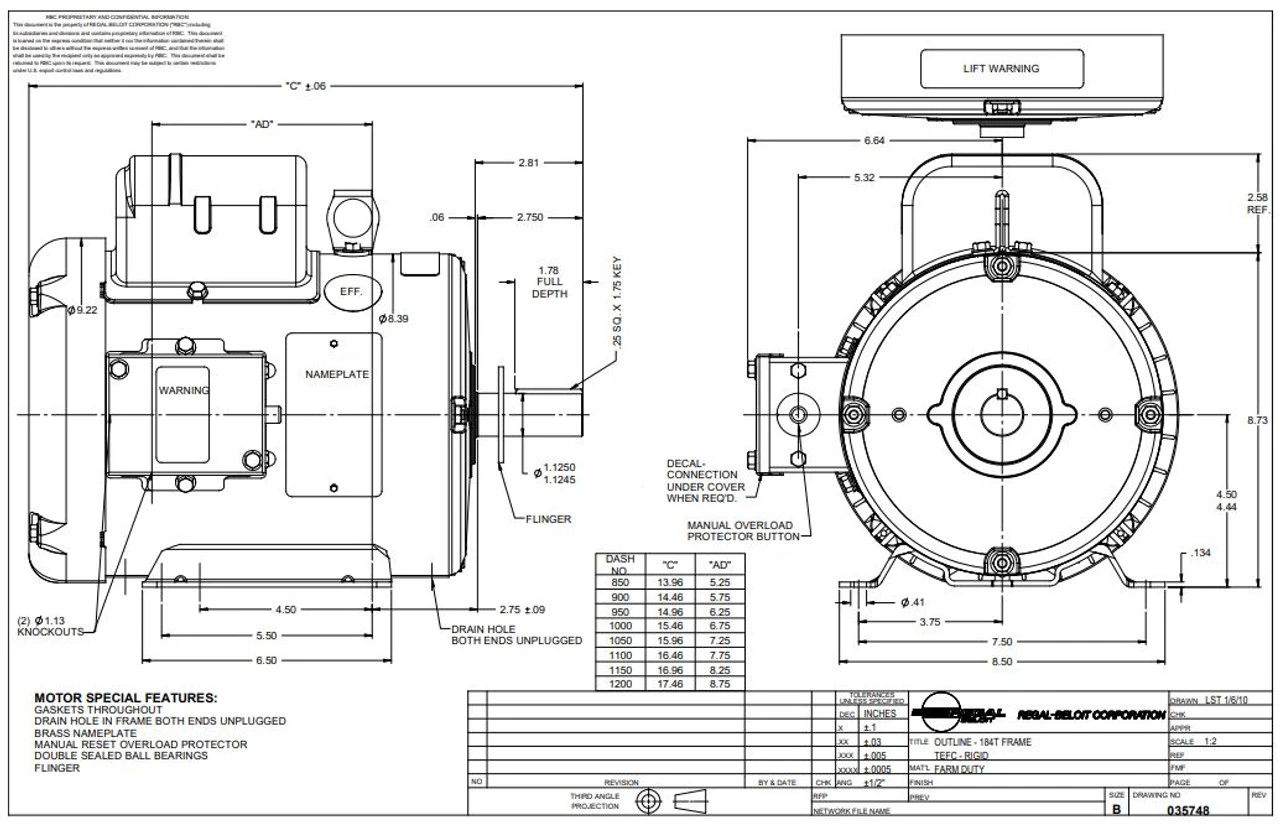

• NEMA 184T Frame – Flat Rigid base mount – 1 1/8″ Diameter shaft x 2 3/4″
• Class F Insulated – Ball Bearings w/low temp grease
• 1 Year Manufacture Warranty.

This motor ships via Freight Truck, cannot ship direct to a residential address

Single Phase Leeson Farm Duty High Starting Torque, Capacitor start motor. Overall Length = 16.46″ Excellent motor for any application requiring a 3 hp motor. This Totally Enclosed motor is Excellent for woodworking machines and other industrial machines where the motor is exposed to saw dust, dirt, oil and other particles in the air that will damage the motor. Motor also has manual overload protection to prevent damage in an overload situation. Mounting is standard NEMA 184T frame, flat base with 6 holes. Farm duty motors have many extra features over standard motors such as double sealed bearings with Exxon grease for a temperature range of -20F to +350F. Rubber boot over reset button provides additional protection. Gasketed junction box and capacitor covers.  Motor weight 83 lbs. SHIPS BY TRUCK – Should ship to business address.

Agricultural Motor

Leeson Model P184C17FB13C; 131542.00
Replaces Century K214, K214M2, K205
